🔧 Sierra 1500 - Cabin Air Filter Check / Replacement

On your Sierra 1500, many trucks did not come with a factory cabin air filter, even though the HVAC box may have a spot for one. First you’ll drop the glove box and check for a small access door; if it’s there, you replace the filter. If there’s no door (solid plastic), you can’t “change” a filter unless you do an optional retrofit.

Difficulty Level: Beginner | Estimated Time: 0.2-0.5 hours (if access door exists) / 0.8-1.5 hours (retrofit)

---

⚠️ Safety & Precautions

• ⚠️ Let the blower area cool down before working under the dash.
• ⚠️ Wear safety glasses; dust/debris can fall from the HVAC box.
• ⚠️ If you choose the retrofit cut-in method, use a utility knife carefully and cut away from wiring.
• ⚠️ Battery disconnect is not required for a basic filter swap, but keep the key off.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Flashlight
• Trim removal tool
• 7mm socket
• 1/4" ratchet
• Small flathead screwdriver
• Shop vacuum
• Utility knife with fresh blade
• Painter’s tape

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1
• Cabin air filter access door kit - Qty: 1 (only if your Sierra 1500 has no access door)

---

📋 Before You Begin

• Park on level ground, shift to Park, and turn the key off.
• Open the passenger door wide for easier access.
• Empty the glove box so nothing falls out.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lower the glove box

• Open the glove box.
• On the right side, unhook the glove box “damper” arm (the small strap/arm that slows the glove box). Use a small flathead screwdriver if needed to gently pop it free. Go slow—plastic tabs break easily.
• Squeeze the glove box sides inward by hand so the stops clear, then let it swing down.

Step 2: Find the cabin filter access area

• Use a flashlight and look behind the glove box at the HVAC housing (big black plastic box).
• Look for a rectangular access cover/door with small retaining tabs.
• If you see a door: continue to Step 3.
• If it’s solid plastic with no door: skip to Step 5 (retrofit option).

Step 3: Remove the access door (if equipped)

• Use a small flathead screwdriver or trim removal tool to release the cover tabs, then pull the door off.
• Use a shop vacuum to clean loose leaves/dust around the opening.

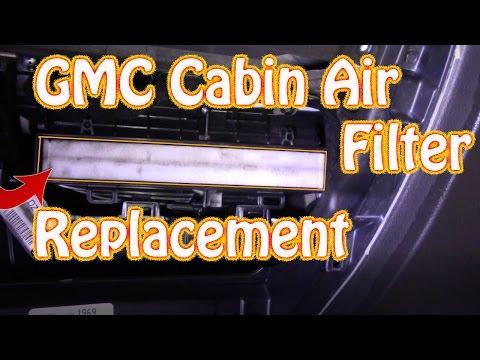

Step 4: Replace the cabin air filter (if equipped)

• Pull the old filter straight out.
• Note the airflow arrow on the filter frame.
• Slide the new filter in the same direction as the airflow arrow.
• Reinstall the access door by hand until it clicks in.

Step 5: Retrofit option (only if there is NO access door)

• Use painter’s tape to mask around the work area and catch shavings.
• Locate the molded “outline” where the door would be on the HVAC box (a slightly raised rectangle). Use a flashlight to confirm you’re on the HVAC housing, not a wiring cover.
• Carefully cut the outlined section using a utility knife with fresh blade. Make shallow passes. Shallow cuts prevent going too deep.
• Use a shop vacuum to remove plastic bits and debris immediately.
• Install the cabin air filter access door kit (it snaps/screws in depending on the kit). Use a 7mm socket and 1/4" ratchet only if your kit uses screws.
• Slide in the new cabin air filter with the airflow arrow correct, then close the new door.

Step 6: Reinstall the glove box

• Lift the glove box back up and squeeze the sides inward to get past the stops.
• Reconnect the damper arm by hand.
• Open/close the glove box to confirm it moves smoothly.

---

✅ After Repair

• Start your Sierra 1500 and run the HVAC fan on medium.
• Check for normal airflow from the vents and no rattling behind the glove box.
• If airflow seems weak, re-check that the filter isn’t installed backward or crooked.

---

💰 DIY vs Shop Cost

Shop Cost: $90-$180 (inspection + filter if equipped) / $180-$350 (retrofit + filter)

DIY Cost: $15-$45 (filter only) / $35-$95 (retrofit door kit + filter)

You Save: $75-$255 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-1.5 hours.

---
