🔧 Silverado 1500 - Cabin Air Filter Replacement

On many Silverado 1500 models around this year, there may not be a factory serviceable cabin air filter—even though the HVAC housing looks like it could accept one. The first job is to check for an access door/slot behind the glove box; if it’s there, the filter swap is quick.

Difficulty Level: Beginner | Estimated Time: 0.25-0.5 hours (if equipped) / 1-2 hours (retrofit)

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key before working under the dash.
• ⚠️ Avoid forcing plastic panels; they crack easily in cold weather.
• ⚠️ If you use a cutting tool for a retrofit, wear eye protection and keep hands clear of the blade.
• ⚠️ Battery disconnect is not required for a basic check/filter swap.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Flashlight
• Trim removal tool (plastic pry tool)
• 7mm socket
• 1/4" drive ratchet
• 6" extension for 1/4" ratchet
• Phillips screwdriver #2
• Small flathead screwdriver
• Utility knife (sharp blade)
• Shop vacuum

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1
• Cabin air filter retrofit kit (cover + filter) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and turn the ignition OFF.
• Slide the passenger seat back for more working room.
• Have a flashlight ready so you can clearly see behind the glove box.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open and clear the glove box

• Open the glove box and remove any items so nothing falls out.
• Use a flashlight to look along the back and right side of the glove box area.

Step 2: Drop the glove box down

• On the right side, disconnect the glove box damper arm (the small strap/arm that slows the glove box). Use a small flathead screwdriver to gently pop it free if needed.
• Squeeze the glove box sides inward with your hands to clear the stops, then let it swing down.
• Slow and steady prevents broken tabs.

Step 3: Check if your A/C housing has a filter access slot

• Use a flashlight and look behind the glove box for a narrow rectangular access door/slot in the HVAC case (usually a long, thin opening).
• If you see a removable cover/door: follow Steps 4–6.
• If you do NOT see a cover/slot: skip to Step 7 (retrofit path).

Step 4: Remove the cabin filter cover (if equipped)

• If a small cover is held by screws, remove them using a 7mm socket, 1/4" ratchet, and extension.
• If it’s a clipped cover, gently release the tabs using a trim removal tool (plastic pry tool) (a plastic pry tool helps avoid marring panels).

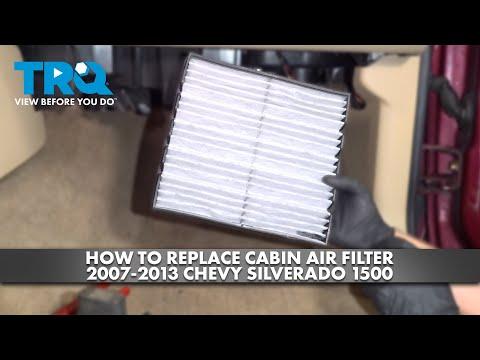

Step 5: Remove the old cabin air filter

• Slide the filter straight out by hand.
• Use a shop vacuum to clean loose leaves/dust from the filter slot area.

Step 6: Install the new cabin air filter

• Install the new filter in the same direction as the old one.
• Look for the airflow arrow on the filter frame and match it to the airflow direction marking on the housing (if marked).
• Reinstall the cover using the 7mm socket and 1/4" ratchet (snug only; these are small screws).

Step 7: Retrofit path (if there is no factory access door)

• Some Silverado 1500 HVAC housings do not come with a service door from the factory. A retrofit kit adds a cover and filter, but it may require cutting a pre-marked section of the HVAC case.
• Use a flashlight to locate the flat, rectangular “blank” area on the HVAC case where the filter would go.
• Carefully cut only the marked plastic section using a utility knife (take small passes; don’t stab deep).
• Use a shop vacuum to remove all plastic shavings.
• Install the retrofit cover and filter per the kit orientation (install by hand; no forcing).

Step 8: Reinstall the glove box

• Lift the glove box back up, squeeze the sides inward, and seat it past the stops.
• Reconnect the damper arm by hand (use the small flathead screwdriver only if needed to guide it).

---

✅ After Repair

• Start the engine and run the blower on medium for 30 seconds.
• Confirm airflow is strong and there are no new rattles behind the glove box.
• If there’s a musty smell, run A/C for a few minutes; the new filter may take a short drive to “freshen” the ducting.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$180 (inspection + filter/installation)

DIY Cost: $15-$45 (parts only, if equipped) / $40-$120 (retrofit kit)

You Save: $50-$140 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-1.0 hours (retrofit can be longer).

---
