🔧 RAV4 - Cabin Air Filter Replacement

Your cabin air filter cleans the air that comes through the HVAC vents (heat/AC). When it gets dirty, you may notice weak airflow, musty smells, or more dust inside the cabin.

Difficulty Level: Beginner | Estimated Time: 0.25-0.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition off and remove the key before working under the dash.
• ⚠️ Don’t force plastic tabs—use gentle pressure to avoid breaking the glove box stops.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Flashlight
• Trim removal tool (plastic)
• Phillips #2 screwdriver

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the passenger door for better access to the glove box area.
• Set your HVAC to OFF before starting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

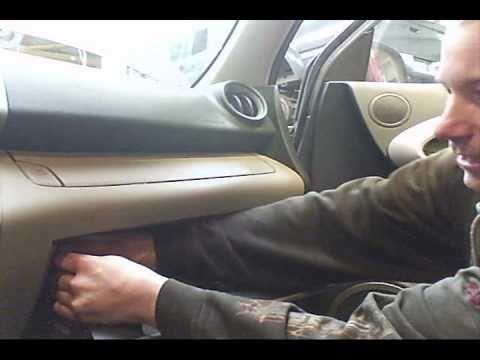

Step 1: Empty and open the glove box

• Remove everything from the glove box so nothing falls out.
• Open the glove box fully.

Step 2: Disconnect the glove box damper arm

• On the right side of the glove box, find the small “damper” arm (it slows the glove box when it opens).
• Use a trim removal tool (plastic) to gently pop the damper arm off its pin.
• Tip: Pull outward, not downward.

Step 3: Drop the glove box down

• Squeeze the left and right sides of the glove box inward with your hands to clear the built-in stops.
• Let the glove box swing down toward the floor.
• If a screw or strap is present on your glove box, remove it using a Phillips #2 screwdriver.

Step 4: Remove the cabin filter access cover

• Behind the glove box, locate the rectangular filter cover/tray area.
• Press the side tabs and pull the cover off by hand (use the trim removal tool (plastic) if it’s tight).

Step 5: Remove the old cabin air filter

• Slide the filter tray out toward you.
• Pull the old filter out of the tray.
• Use a flashlight to check for leaves/debris in the filter housing and wipe out by hand with a nitrile glove on.

Step 6: Install the new cabin air filter

• Put the new filter into the tray in the same orientation as the old one.
• Look for the airflow arrow on the filter frame and install it to match airflow direction (commonly DOWN on this setup).
• Slide the tray back in until fully seated.

Step 7: Reassemble the glove box

• Reinstall the filter cover by hand until the tabs click.
• Lift the glove box back up and squeeze the sides inward again to pass the stops.
• Reconnect the damper arm by pressing it back onto its pin (use the trim removal tool (plastic) to guide it if needed).
• If you removed a screw/strap, reinstall it using a Phillips #2 screwdriver.

---

✅ After Repair

• Start the engine and turn the fan to medium/high to confirm strong airflow.
• Switch between fresh air and recirculation to confirm normal operation.
• If you hear a ticking noise from the blower, recheck for debris in the housing.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$160 (parts + labor)

DIY Cost: $15-$45 (parts only)

You Save: $65-$115 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.6 hours.

---
