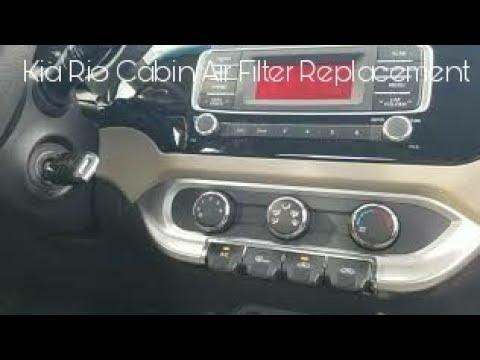

🔧 Rio - Cabin Air Filter Replacement

Your Rio’s cabin air filter cleans the air coming through the HVAC vents. Replacing it helps improve airflow, reduces odors, and keeps dust/pollen out of the cabin.

Difficulty Level: Beginner | Estimated Time: 0.2-0.4 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF before working under the dash/glove box.
• ⚠️ Avoid breathing dust from the old filter; wear a mask if needed.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Phillips #2 screwdriver
• Plastic trim tool set
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Cabin air filter - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the passenger door and fully empty the glove box.
• Have a trash bag ready for dusty filters.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open and support the glove box

• Open the glove box all the way.
• Use a flashlight to look at both sides of the glove box for the stops (small plastic “ears” that keep it from dropping).

Step 2: Release the glove box stops

• Press the glove box sides inward by hand to clear the stops, then let the glove box swing downward.
• If a side panel or small retainer blocks access, gently pry it using a plastic trim tool set. (A trim tool is a plastic pry tool that helps prevent scratches.)

Step 3: Disconnect the glove box damper (if equipped)

• On the right side, you may see a small “damper” arm (a little shock/strap that slows the glove box).
• Pop it off its pin using your fingers or a plastic trim tool set.

Step 4: Remove the cabin filter access door

• Behind the lowered glove box, find the rectangular cabin filter housing.
• Press the tabs and remove the cover by hand.
• If a screw is present on the cover, remove it with a Phillips #2 screwdriver.

Step 5: Remove the old cabin air filter

• Slide the filter straight out.
• Keep it level to avoid dumping debris.
• Note how the old filter is oriented before pulling it out.

Step 6: Install the new cabin air filter

• Check the airflow arrow on the filter frame.
• Install it in the same direction as the old one (typically the arrow points down toward the blower, but match what you removed).
• Slide it in without forcing it; it should seat smoothly.

Step 7: Reassemble the glove box

• Reinstall the housing cover until the tabs click (or tighten the screw with a Phillips #2 screwdriver if equipped).
• Reconnect the damper arm (if equipped) by pressing it back onto its pin.
• Lift the glove box and press the sides inward again to pass the stops back into place.
• Close the glove box and reinstall everything you removed.

---

✅ After Repair

• Start the engine and run the HVAC fan on medium, then high.
• Switch between fresh air and recirculation to confirm normal airflow.
• If you hear whistling/rattling, recheck that the filter cover is fully clipped in.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$140 (parts + labor)

DIY Cost: $10-$30 (parts only)

You Save: $50-$110 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.2-0.4 hours.

---
