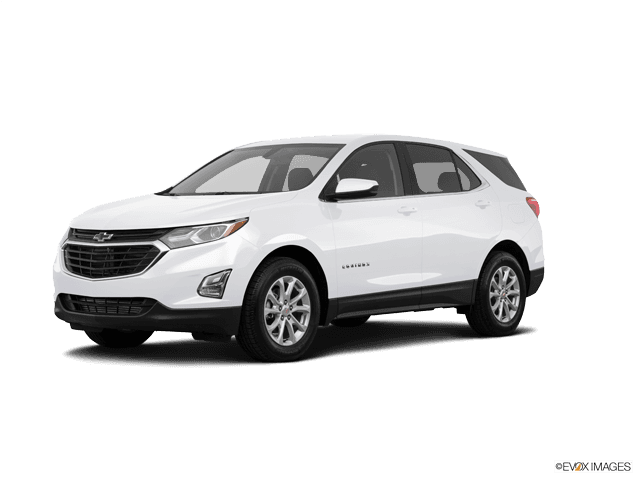

🔋 Equinox - Battery Replacement

Your battery is in the rear cargo area on this model, so the job is a little different from many cars. You’ll remove the trim access, disconnect the battery safely, and install the new battery with the hold-down secured tightly.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• Turn the ignition off and remove the key/fob from the vehicle.
• Keep metal tools away from both battery terminals at the same time.
• Work in a ventilated area. A battery can release flammable gas.
• If your vehicle has an automatic liftgate, keep fingers clear while working in the cargo area.
• Battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet
• Short extension
• Battery terminal puller (specialty)
• Flat trim tool
• Gloves
• Safety glasses
• Baking soda and water solution
• Battery terminal brush
• Memory saver (optional)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery - Qty: 1
• Battery terminal protectant spray - Qty: 1
• Battery hold-down hardware - Qty: 1 if damaged or corroded

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the rear liftgate and make sure the vehicle is fully off.
• If you use a memory saver, connect it before disconnecting the battery.
• Remove loose items from the cargo area so you can reach the battery cover.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the battery

• Open the rear cargo floor area and remove the cargo cover or floor panel.
• Use a flat trim tool to lift any access panels or retainers covering the battery.
• Keep trim clips in a safe place.

Step 2: Disconnect the negative cable

• Use a 10mm socket and ratchet to loosen the negative battery terminal.
• Pull the negative cable off and set it aside so it cannot spring back to the post.

Step 3: Disconnect the positive cable

• Use a 10mm socket to loosen the positive terminal.
• Remove the positive cable and keep it clear of metal parts.
• Negative off first, on last.

Step 4: Remove the battery hold-down

• Use a 10mm socket and short extension to remove the battery hold-down clamp or bracket.
• Lift the bracket out and keep the hardware together.

Step 5: Remove the battery

• Lift the battery straight out of the tray.
• If it feels heavy, use proper lifting form and keep it level.
• Battery acid can be very corrosive.

Step 6: Clean the tray and terminals

• Use the baking soda and water solution to clean any corrosion from the tray and cable ends.
• Scrub the terminals with a battery terminal brush if needed.
• Let everything dry fully before installing the new battery.

Step 7: Install the new battery

• Set the new battery into the tray in the same direction as the old one.
• Reinstall the hold-down bracket using the 10mm socket.
• Torque to 8 Nm (71 in-lbs).

Step 8: Reconnect the cables

• Install the positive cable first and tighten it with the 10mm socket.
• Torque to 5 Nm (44 in-lbs).
• Install the negative cable last and tighten it with the 10mm socket.
• Torque to 5 Nm (44 in-lbs).
• Positive first, negative last.

Step 9: Reassemble the cargo area

• Reinstall the battery cover, floor panel, and any trim pieces.
• Make sure everything sits flush and nothing is pinched.

---

✅ After Repair

• Start the vehicle and make sure it cranks normally.
• Check the dash for warning lights.
• Reset the clock and any saved radio presets if needed.
• If a window or liftgate acts odd, cycle it fully open and closed once.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $140-$260 (parts only)

You Save: $110-$190 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hour.

---
