🔧 3500 - Battery Replacement

On your 3500, the battery sits in the engine bay and can be replaced with basic hand tools. You’ll remove the hold-down, disconnect the cables (negative first), swap the battery, then reconnect and verify everything powers up normally.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn ignition OFF, remove key, and keep it away from the truck.
• ⚠️ Disconnect the negative (-) cable first and reconnect it last to reduce short-circuit risk.
• ⚠️ Do not let a tool bridge battery terminals or touch metal body parts while on a terminal.
• ⚠️ Battery acid is corrosive; wear gloves and safety glasses.
• ⚠️ If your negative terminal has a sensor module (IBS), don’t pry on it; loosen the clamp nut only. (IBS = a small sensor on the negative cable that monitors battery current.)

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 3/8" drive ratchet
• 6" extension (3/8" drive)
• Torque wrench (inch-pound/foot-pound)
• Battery terminal puller (specialty)
• Battery post/terminal cleaning brush
• Trim clip tool
• Shop rags
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V main battery (correct group size for your 3500) - Qty: 1
• Battery terminal anti-corrosion spray - Qty: 1
• Battery felt terminal washers - Qty: 2

---

📋 Before You Begin

• 🔧 Park on level ground, shift to Park, and set the parking brake.
• 🔧 Open the hood and locate the battery in the engine bay (passenger-side front area).
• 🔧 If you want to preserve radio presets, use a memory saver before disconnecting. (A memory saver is a small device that supplies low power through the OBD-II port.)

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the battery

• Remove any battery cover/insulator if equipped using a trim clip tool.
• Set the cover and clips aside where they won’t get lost.

Step 2: Disconnect the negative (-) battery cable

• Use a 10mm socket and 3/8" drive ratchet to loosen the negative terminal clamp nut.
• Lift the negative cable off the post and tuck it to the side so it cannot spring back.
• Negative off first prevents accidental shorts.

Step 3: Disconnect the positive (+) battery cable

• Flip open the red protective cap (if equipped).
• Use a 10mm socket and 3/8" drive ratchet to loosen the positive terminal clamp nut.
• Lift the positive cable off the post and move it aside safely.

Step 4: Remove the battery hold-down

• Use a 13mm socket, 3/8" drive ratchet, and 6" extension to remove the battery hold-down bolt(s).
• Remove the hold-down bracket and set it aside.

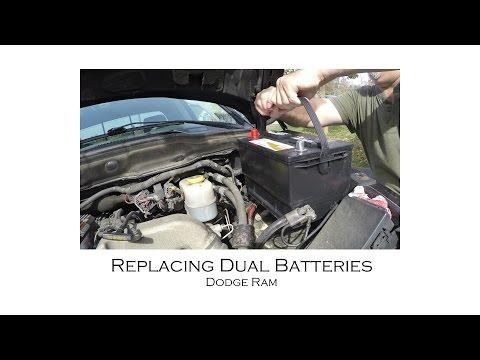

Step 5: Remove the old battery

• Lift the battery straight up and out. Use gloves; batteries are heavy.
• If a terminal is stuck on the post, use a battery terminal puller (specialty) to lift it off without prying.

Step 6: Clean and prep the connections

• Use a battery post/terminal cleaning brush to clean both cable clamps until the metal looks bright.
• Wipe residue with shop rags.
• Install battery felt terminal washers (red to positive, green/black to negative) if you’re using them.

Step 7: Install the new battery

• Place the new battery into the tray in the same orientation as the old one.
• Reinstall the hold-down bracket using a 13mm socket and 3/8" drive ratchet.
• Tighten with a torque wrench: Torque to 28 Nm (21 ft-lbs).

Step 8: Reconnect the positive (+) cable

• Install the positive clamp onto the battery post.
• Tighten using a 10mm socket and 3/8" drive ratchet, then finish with a torque wrench: Torque to 5 Nm (44 in-lbs).
• Close the red protective cap (if equipped).

Step 9: Reconnect the negative (-) cable

• Install the negative clamp onto the battery post.
• Tighten using a 10mm socket and 3/8" drive ratchet, then finish with a torque wrench: Torque to 5 Nm (44 in-lbs).
• Apply battery terminal anti-corrosion spray to help prevent future buildup.

Step 10: Reinstall any covers and final check

• Reinstall the battery cover/insulator using a trim clip tool as needed.
• Gently wiggle each terminal by hand—there should be no movement.

---

✅ After Repair

• 🔧 Start the engine and confirm normal cranking speed and no warning lights stay on.
• 🔧 Check that headlights, horn, and interior electronics work.
• 🔧 Reset clock and radio presets if they were lost.
• 🔧 If the battery light stays on after starting, re-check terminal tightness and clamp seating.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$380 (parts + labor)

DIY Cost: $150-$280 (parts only)

You Save: $70-$100 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
