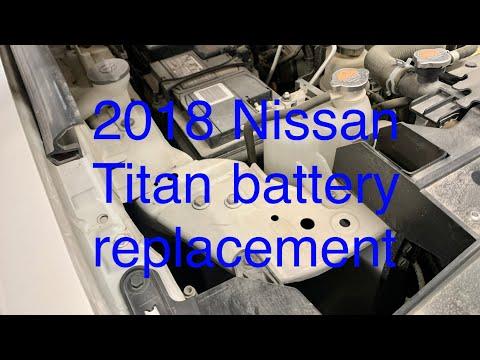

🔧 Titan - Battery Replacement

Replacing the battery on your Titan is a straightforward job: you’ll remove the hold-down, disconnect the cables, swap the battery, then reconnect and confirm everything powers up normally. The only “gotcha” is keeping the battery securely clamped and connecting the cables in the correct order to avoid electrical damage.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Keep keys away: Keep the key fob at least 15 ft away from your Titan while working.
• ⚠️ Disconnect in the right order: Always remove negative (-) first, install negative (-) last.
• ⚠️ Avoid short circuits: Do not let a tool touch the battery positive (+) and any metal body part at the same time.
• ⚠️ Battery acid/weight: Wear gloves and eye protection; the battery is heavy.
• ⚠️ No open flames/sparks: Batteries can vent explosive gas.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 3/8" ratchet
• 6" extension for 3/8" ratchet
• Torque wrench (10-30 ft-lbs)
• Battery terminal brush (specialty)
• Safety glasses
• Nitrile gloves
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (correct group size and CCA for your Titan) - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 2
• Battery terminal protectant spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Turn the ignition fully off and make sure all lights/accessories are off.
• Open the hood and locate the battery.
• If you want to preserve radio presets, use a memory saver (a small device that keeps power during battery swap). If you don’t have one, it’s okay—your Titan may just lose clock/presets.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the replacement battery matches

• Read the label on the old battery and match the group size and at least the same CCA (cold cranking amps).
• Snap a photo of the battery label.

Step 2: Disconnect the negative (-) battery terminal

• Use a 10mm socket with a 3/8" ratchet to loosen the negative (-) terminal clamp nut.
• Twist and lift the clamp off the battery post, then tuck the cable to the side so it cannot spring back.
• A battery post is the round lead nub on top of the battery.

Step 3: Disconnect the positive (+) battery terminal

• Use a 10mm socket with a 3/8" ratchet to loosen the positive (+) terminal clamp nut.
• Remove the clamp from the battery post and position it safely away from metal.

Step 4: Remove the battery hold-down

• Use a 12mm socket, 3/8" ratchet, and 6" extension to remove the hold-down hardware.
• Lift the hold-down bracket/rod(s) out and set them aside.
• The hold-down is the metal bracket that clamps the battery so it can’t move.

Step 5: Remove the old battery

• Wearing nitrile gloves and safety glasses, lift the battery straight up and out.
• Keep it upright to avoid any acid leakage.

Step 6: Clean and prep the terminals

• Use a battery terminal brush (specialty) to clean the inside of both cable clamps until the metal looks bright.
• Install battery terminal anti-corrosion pads on the new battery posts (one for + and one for -).

Step 7: Install the new battery and secure it

• Place the new battery into the tray in the same orientation as the old one.
• Reinstall the hold-down using a 12mm socket, 3/8" ratchet, and 6" extension.
• Tighten the hold-down with a torque wrench: Torque to 18 Nm (13 ft-lbs).
• Battery must not move when pushed.

Step 8: Reconnect the positive (+) terminal first

• Install the positive (+) clamp onto the battery post.
• Use a 10mm socket and 3/8" ratchet to tighten: Torque to 5 Nm (44 in-lbs).
• Lightly spray with battery terminal protectant spray after tightening.

Step 9: Reconnect the negative (-) terminal last

• Install the negative (-) clamp onto the battery post.
• Use a 10mm socket and 3/8" ratchet to tighten: Torque to 5 Nm (44 in-lbs).
• Lightly spray with battery terminal protectant spray after tightening.

Step 10: Quick check for secure connections

• Try to rotate each terminal clamp by hand. It should not twist on the post.
• Confirm the hold-down is tight and the battery cannot slide.

---

✅ After Repair

• Start your Titan. Confirm normal cranking and no warning lights that weren’t there before.
• Reset the clock and radio presets if needed.
• Power window “auto” feature may need relearn: run the driver window fully down and fully up once using the switch.
• Dispose of the old battery properly—parts stores typically take it for recycling.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 (parts + labor)

DIY Cost: $160-$320 (parts only)

You Save: $60-$150 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
