Assumption: Your Colorado uses a standard under-hood 12V top-post battery with a front hold-down clamp (common setup).

🔧 Colorado - Battery Replacement

Replacing the 12V battery restores reliable starting and prevents random electrical issues. You’ll remove the battery hold-down, disconnect the cables (negative first), swap the battery, then reconnect (positive first).

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Keep keys out of the truck and headlights OFF before starting.
• ⚠️ Always disconnect the negative (-) cable first to reduce short-circuit risk.
• ⚠️ Do not let a tool touch the positive terminal and metal at the same time.
• ⚠️ Batteries are heavy and contain acid—wear gloves and eye protection.
• ⚠️ If your truck has any add-on wiring (winch/amp), note where it attaches before removal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 3/8" ratchet
• 6" extension (3/8")
• Torque wrench (10–50 Nm range)
• Battery terminal brush
• Trim tool or flat screwdriver
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (correct group size for your Colorado) - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 2
• Battery terminal protectant spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to neutral, set the parking brake, and turn the ignition OFF.
• Open the hood and let the truck sit 2–3 minutes so modules “go to sleep.”
• Take a quick photo of cable routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

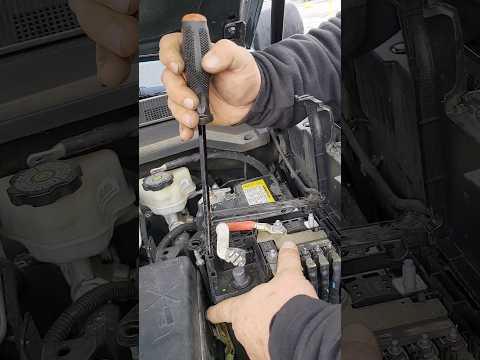

Step 1: Locate the battery and remove any covers

• Find the battery in the engine bay.
• If there’s a plastic battery cover/air guide, remove it using a trim tool or flat screwdriver (release clips gently).

Step 2: Disconnect the negative (-) battery cable

• Use a 10mm socket and ratchet to loosen the negative terminal clamp nut.
• Twist the clamp slightly and lift it off the negative post.
• Tuck the cable end to the side so it can’t spring back and touch the terminal.

Step 3: Disconnect the positive (+) battery cable

• Use a 10mm socket and ratchet to loosen the positive terminal clamp nut.
• Remove the clamp from the positive post.
• If there’s a red protective cover, use a trim tool or flat screwdriver to move it out of the way.

Step 4: Remove the battery hold-down

• Look for the battery hold-down clamp at the base of the battery.
• Use a 13mm socket, ratchet, and 6" extension to remove the hold-down bolt.
• Lift out the clamp and set the hardware aside where it won’t get lost.

Step 5: Remove the old battery

• Lift the battery straight up and out using both hands (keep your back straight).
• Set it on the ground on a flat surface.

Step 6: Clean the terminals and tray

• Use a battery terminal brush to clean the inside of both cable clamps until the metal looks bright.
• Wipe any dirt from the battery tray area using a shop towel (use your nitrile gloves).
• Install anti-corrosion pads onto the battery posts (one per post).

Step 7: Install the new battery

• Lower the new battery into the tray in the same orientation as the old one (posts in the same positions).
• Reinstall the hold-down clamp and bolt using a 13mm socket and ratchet.
• Final tighten with a torque wrench: Torque to 25 Nm (18 ft-lbs).

Step 8: Reconnect the positive (+) cable first

• Push the positive clamp fully down on the positive post.
• Tighten using a 10mm socket and ratchet.
• Final tighten with a torque wrench: Torque to 13 Nm (115 in-lbs).
• Apply battery terminal protectant spray lightly around the connection.

Step 9: Reconnect the negative (-) cable last

• Push the negative clamp fully down on the negative post.
• Tighten using a 10mm socket and ratchet.
• Final tighten with a torque wrench: Torque to 13 Nm (115 in-lbs).
• Apply battery terminal protectant spray lightly around the connection.

Step 10: Reinstall any covers

• Reinstall the battery cover/air guide (if equipped) by snapping clips back in place by hand.

---

✅ After Repair

• Start the engine and confirm it cranks strongly.
• Check that the battery is secure (should not move when you push it).
• Verify no warning lights stay on after a short drive.
• Reset clock/radio presets if they were lost.
• Recycle the old battery—most parts stores take it free.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 (parts + labor)

DIY Cost: $150-$300 (parts only)

You Save: $70-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
