🔧 Wrangler - Battery Replacement

You’ll remove the old 12V battery and install a new one with the correct size and terminal orientation. Doing it right prevents no-start issues, electrical glitches, and loose connections that can cause intermittent problems.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: stock under-hood battery and factory hold-down.

---

⚠️ Safety & Precautions

• ⚠️ Keep keys out of ignition; turn everything OFF before starting.
• ⚠️ Wear eye protection and gloves—battery acid is corrosive.
• ⚠️ Remove negative (-) cable first, install it last to reduce short-circuit risk.
• ⚠️ Do not let a tool bridge the battery post to metal—this can create a dangerous short.
• ⚠️ If the battery has venting hardware, reinstall it the same way.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 10mm wrench
• 13mm socket
• Ratchet (3/8")
• 6" socket extension (3/8")
• Torque wrench (in-lb or Nm)
• Battery terminal brush (specialty)
• Battery strap handle (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (correct group size for Wrangler) - Qty: 1
• Battery terminal anti-corrosion washers - Qty: 2
• Battery terminal protectant spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open the hood.
• Make sure all accessories are off (lights, radio, HVAC).
• Locate the battery and note which side is positive (+) and negative (-).
• If you want to preserve radio presets, use a memory saver—otherwise expect presets/clock to reset.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

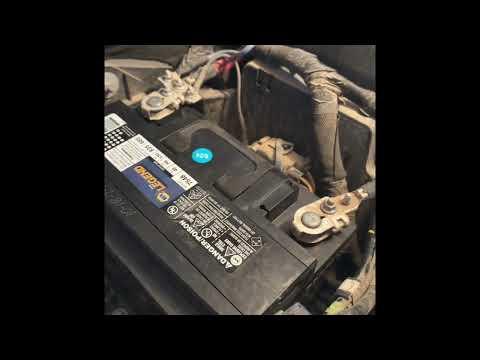

Step 1: Access and inspect the battery

• Use safety glasses and nitrile gloves.
• Visually check for corrosion (white/green buildup) on the terminals and any cracked battery case.

Step 2: Disconnect the negative (-) battery cable

• Use a 10mm socket with a ratchet (3/8") to loosen the negative terminal clamp nut.
• Twist and lift the clamp straight up off the post (do not pry on the battery case).
• Tuck the negative cable end aside so it can’t spring back and touch the post.
• Negative off first = fewer accidental sparks.

Step 3: Disconnect the positive (+) battery cable

• Use a 10mm socket with a ratchet (3/8") to loosen the positive terminal clamp nut.
• Remove the clamp from the positive post and position it safely away from the battery.

Step 4: Remove the battery hold-down

• Use a 13mm socket, 6" socket extension (3/8"), and ratchet (3/8") to remove the battery hold-down fastener(s) at the base of the battery tray.
• Keep the hold-down parts together so they go back exactly the same way.

Step 5: Lift out the old battery

• Use a battery strap handle (specialty) to lift the battery straight up and out.
• Set it on the ground upright (batteries are heavy—lift with your legs, not your back).

Step 6: Clean the terminals and tray

• Use a battery terminal brush (specialty) to clean the inside of both cable clamps until the metal looks bright.
• If there is loose debris in the tray, wipe it out with shop towels (avoid getting anything into the engine bay).
• Clean metal = better starting and charging.

Step 7: Install the new battery

• Lower the new battery into the tray in the same orientation as the old one using the battery strap handle (specialty).
• Make sure it sits fully flat in the tray (no pinched cables underneath).

Step 8: Reinstall and tighten the hold-down

• Reinstall the hold-down using the 13mm socket, 6" socket extension (3/8"), and ratchet (3/8").
• Use a torque wrench (in-lb or Nm) and Torque to 17 Nm (150 in-lb).
• The battery should not move when you push it by hand.

Step 9: Reconnect the positive (+) cable first

• Install anti-corrosion washers if you’re using them (one per post).
• Push the positive clamp fully down onto the positive post.
• Use a 10mm socket and torque wrench (in-lb or Nm) to tighten the clamp: Torque to 5 Nm (45 in-lb).

Step 10: Reconnect the negative (-) cable last

• Push the negative clamp fully down onto the negative post.
• Use a 10mm socket and torque wrench (in-lb or Nm) to tighten the clamp: Torque to 5 Nm (45 in-lb).
• Apply battery terminal protectant spray after everything is tight.

---

✅ After Repair

• Start the engine and confirm it cranks strongly and starts normally.
• Check that the battery is secure and the cables cannot rotate on the posts by hand.
• Verify charging: lights should be steady (no flicker) and no battery warning light should stay on.
• Reset clock/radio presets if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 (parts + labor)

DIY Cost: $160-$320 (parts only)

You Save: $60-$140 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
