🔧 Equinox - Battery Replacement

Your Equinox’s 12V battery powers the starter and all electronics. Replacing it is straightforward, but the order you disconnect/reconnect the cables matters to prevent damage and sparks.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work with the engine OFF, key out, and lights/accessories OFF.
• ⚠️ Do not let a tool touch both the battery terminal and metal body parts at the same time.
• ⚠️ Always disconnect the negative (-) cable first and reconnect it last.
• ⚠️ Batteries can vent gas; avoid sparks/flames and wear eye protection.
• ⚠️ If the battery has a vent tube, reconnect it exactly as found.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 3/8" ratchet
• 6" extension
• Torque wrench (5-30 Nm range)
• Battery terminal puller (specialty)
• Battery terminal brush
• Protective gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (match the group size and CCA listed on your current battery label) - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 2
• Battery terminal protectant spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and keep the area well ventilated.
• Make sure all accessories are off and wait 2 minutes before disconnecting the battery.
• If you want to keep radio presets, use a 12V memory saver (plugs into the OBD port) before disconnecting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

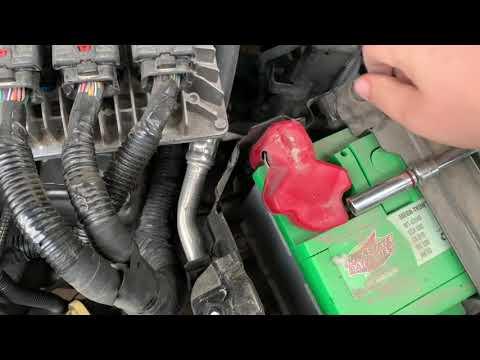

Step 1: Locate the battery and remove any covers

• Open the hood and locate the battery in the engine bay.
• If your Equinox has a battery cover, remove it by hand (no tools) or use a 10mm socket if it’s bolted.

Step 2: Disconnect the negative (-) cable first

• Use a 10mm socket to loosen the negative terminal clamp nut.
• Twist and lift the clamp off the negative post, then tuck the cable aside so it cannot spring back.
• If the clamp is stuck, use a battery terminal puller (specialty) (a small puller that separates a stuck terminal safely).
• Torque to 17 Nm (13 ft-lbs) when reinstalling this clamp.

Step 3: Disconnect the positive (+) cable

• Use a 10mm socket to loosen the positive terminal clamp nut.
• Lift the clamp off the positive post and move it aside.
• Torque to 17 Nm (13 ft-lbs) when reinstalling this clamp.

Step 4: Remove the battery hold-down

• At the base of the battery, remove the hold-down bolt using a 13mm socket with a 6" extension and 3/8" ratchet.
• Remove the hold-down bracket and set it aside.
• Torque to 20 Nm (15 ft-lbs) when reinstalling the hold-down bolt.

Step 5: Lift out the old battery

• Wear protective gloves and safety glasses.
• Lift the battery straight up and out. Batteries are heavy—use good posture.
• Keep it level to prevent leaks.

Step 6: Clean the tray and terminals

• Inspect the battery tray for corrosion and debris; wipe it clean.
• Use a battery terminal brush to clean the inside of both cable clamps if there is white/green buildup.

Step 7: Install the new battery

• Place the new battery into the tray in the same orientation as the old one.
• Reinstall the hold-down bracket and tighten with a 13mm socket.
• Torque to 20 Nm (15 ft-lbs).

Step 8: Reconnect cables (positive first, negative last)

• Install anti-corrosion pads on the posts (if using).
• Reconnect the positive (+) clamp first and tighten using a 10mm socket.
• Torque to 17 Nm (13 ft-lbs).
• Reconnect the negative (-) clamp last and tighten using a 10mm socket.
• Torque to 17 Nm (13 ft-lbs).
• Apply battery terminal protectant spray after everything is tight.

---

✅ After Repair

• Start your Equinox and confirm it cranks normally with no warning messages.
• Check that headlights, horn, and power locks work.
• Reset the clock and radio presets if they were lost.
• If the power window auto feature acts up, run the window fully down and fully up once to re-learn.

---

💰 DIY vs Shop Cost

Shop Cost: ₹9,000-₹14,000 (parts + labor)

DIY Cost: ₹8,500-₹13,000 (parts only)

You Save: ₹500-₹1,500 by doing it yourself!

Shop labor rates vary but typically run ₹600-₹1,500/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
