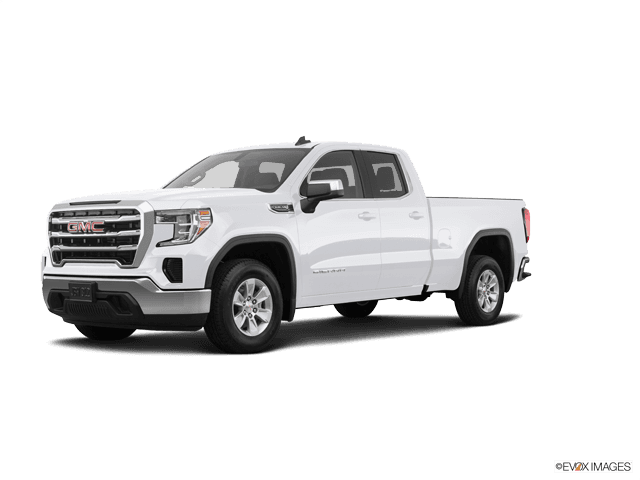

🔋 Sierra 1500 - Battery Replacement

Replacing the battery on your Sierra is a straightforward job. The battery is under the hood, and the main tasks are safely disconnecting the cables, removing the hold-down, and transferring any vent or cover parts to the new battery.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• Wear safety glasses and gloves. Batteries can leak acid and give off sparks.
• Turn the ignition off, remove the key/fob from the vehicle, and keep it away from the truck.
• Do not let a wrench touch both battery terminals or a terminal and metal body at the same time.
• Disconnect the negative cable first and reconnect it last.
• If the truck has an exposed battery sensor on the negative cable, handle it carefully.
• Some settings may reset after power loss. Be ready to reset clock, radio presets, and auto windows if needed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4-inch ratchet
• 6-inch extension
• Terminal puller (specialty)
• Battery brush
• Memory saver (optional specialty)
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery - Qty: 1
• Battery terminal protectant spray - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Make sure the ignition is off and all accessories are off.
• If you use a memory saver, connect it before disconnecting the battery.
• Take a photo of the cable layout first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the hood and locate the battery

• Use the hood release inside the cab, then secure the hood fully open.
• The battery is in the engine bay on your Sierra, near the front corner of the engine compartment.

Step 2: Disconnect the negative cable

• Use a 10mm socket and 1/4-inch ratchet to loosen the negative terminal clamp.
• Lift the negative cable off the battery post and move it aside so it cannot spring back.
• Always remove negative first.

Step 3: Disconnect the positive cable

• Use the 10mm socket to loosen the positive terminal clamp.
• Remove the positive cable and keep it clear of metal parts.

Step 4: Remove the battery hold-down

• Use the 10mm socket and 6-inch extension to remove the battery hold-down bracket or clamp.
• Set the fasteners aside where they will not be lost.

Step 5: Lift out the old battery

• Lift the battery straight up and out of the tray. A battery is heavy, so use both hands.
• If there is corrosion, use a battery brush to clean the terminals and tray.

Step 6: Install the new battery

• Place the new battery in the tray with the posts in the same orientation as the old one.
• Reinstall the hold-down bracket and tighten it with the 10mm socket.
• Torque to 18 Nm (13 ft-lbs).

Step 7: Reconnect the positive cable

• Install the positive cable first using the 10mm socket.
• Tighten the clamp securely. Do not over-tighten.

Step 8: Reconnect the negative cable

• Install the negative cable last using the 10mm socket.
• Tighten the clamp securely.
• Negative goes on last.

Step 9: Final check

• Make sure both clamps are tight and the battery cannot move.
• Close the hood and start the truck.

---

✅ After Repair

• Start the engine and confirm it cranks normally.
• Check for warning lights on the dash.
• Reset the clock, radio presets, and any saved settings if needed.
• If a window auto-up/down feature stopped working, reinitialize it using the switch.

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000-₹22,000 (parts + labor)

DIY Cost: ₹7,000-₹15,000 (parts only)

You Save: ₹5,000-₹7,000 by doing it yourself!

Shop labor rates vary but typically run ₹8,000-₹12,000/hour. This repair takes a shop approximately 0.5-1 hour.

---
