🔧 1500 - Battery Replacement

On your 1500, the battery sits under the hood on the passenger side. Replacing it is mainly removing the hold-down, swapping the battery, and reconnecting the cables in the correct order to prevent electrical damage.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Keep keys out of the ignition and lights off before starting.
• ⚠️ Wear eye protection and gloves; battery acid is corrosive.
• ⚠️ Always disconnect negative (-) first and reconnect negative (-) last.
• ⚠️ Do not let a tool touch both battery terminals at the same time.
• ⚠️ Batteries are heavy—lift with legs, not your back.
• ⚠️ Battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 3/8" drive ratchet
• 3" extension for 3/8" ratchet
• Torque wrench (in-lb and ft-lb capable)
• Battery terminal brush
• Trim/pick tool
• Shop rags
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (Group 65, correct CCA for your 1500) - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 2
• Battery terminal protectant spray - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Open the hood and let the engine bay cool if it’s hot.
• If you want to preserve radio presets, use a 12V memory saver (a small device that keeps power through the OBD port). If you don’t have one, it’s okay—your truck will relearn settings.
• Have your new battery ready and confirm it matches the old one’s size (Group 65) and terminal orientation.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the battery

• Open the hood and locate the battery on the passenger side of the engine bay.
• If there’s a battery/terminal cover, release the clips using a trim/pick tool and remove it by hand.

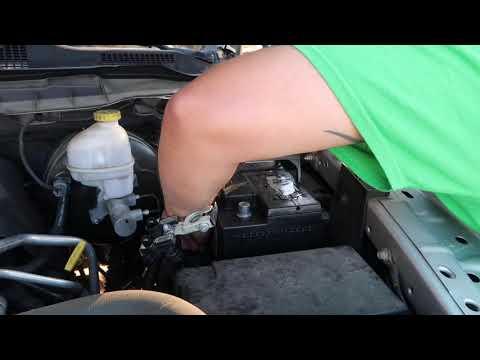

Step 2: Disconnect the negative (-) cable

• Use a 10mm socket with a 3/8" ratchet to loosen the negative (-) terminal clamp nut.
• Wiggle the clamp up and off the negative post, then tuck the cable aside so it can’t spring back to the battery.
• Negative first prevents accidental shorting.

Step 3: Disconnect the positive (+) cable

• Use a 10mm socket with a 3/8" ratchet to loosen the positive (+) terminal clamp nut.
• Remove the clamp and position the cable aside so it can’t touch metal or the battery post.

Step 4: Remove the battery hold-down

• Locate the hold-down clamp at the base of the battery.
• Use a 13mm socket, 3/8" ratchet, and 3" extension to remove the hold-down bolt.
• Lift out the hold-down clamp by hand and set it aside.

Step 5: Remove the old battery

• Lift the battery straight up and out (it’s heavy—use both hands and keep it close to your body).
• Set it on the ground upright.

Step 6: Clean the battery tray and cable ends

• Wipe the tray clean using shop rags.
• If you see corrosion on the clamps, scrub the inside of each clamp using a battery terminal brush until the metal looks clean.
• Install battery terminal anti-corrosion pads onto the battery posts (one per post).

Step 7: Install the new battery

• Place the new battery into the tray in the same orientation as the old one.
• Reinstall the hold-down clamp and start the bolt by hand.
• Use a 13mm socket with a torque wrench to tighten the hold-down bolt: Torque to 17 Nm (13 ft-lbs).

Step 8: Reconnect the positive (+) cable

• Push the positive clamp fully down onto the positive post.
• Use a 10mm socket with a torque wrench to tighten the clamp nut: Torque to 5 Nm (44 in-lbs).
• Apply a thin smear of dielectric grease (a non-conductive grease that helps prevent corrosion) around the outside of the connection.

Step 9: Reconnect the negative (-) cable

• Push the negative clamp fully down onto the negative post.
• Use a 10mm socket with a torque wrench to tighten the clamp nut: Torque to 5 Nm (44 in-lbs).
• Spray both terminals with battery terminal protectant spray.

Step 10: Reinstall any covers and final check

• Reinstall the terminal/battery cover by hand; use a trim/pick tool only if needed to seat clips.
• Gently try to move the battery by hand—there should be no shifting.

---

✅ After Repair

• Start the engine and confirm normal cranking speed and no warning lights staying on.
• Check that the clock and radio presets are correct (reset if needed).
• Cycle the power windows up/down once if the auto feature acts odd.
• If you had heavy corrosion, recheck terminal tightness after 2-3 days using a 10mm socket (do not overtighten).

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 (parts + labor)

DIY Cost: $160-$320 (parts only)

You Save: $60-$100 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
