🔧 Wrangler - Battery Replacement

Your Wrangler’s 12V battery provides the power to start the engine and run electronics when the alternator isn’t supplying enough power. Replacing a weak or failing battery restores reliable starting and helps prevent random electrical issues.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn ignition OFF, remove key, and keep it away from the vehicle.
• ⚠️ Disconnect the negative (-) cable first and reconnect it last to reduce short-circuit risk.
• ⚠️ Do not allow tools to touch both battery terminals or a terminal and metal at the same time.
• ⚠️ Batteries can vent explosive gas; keep sparks/flames away.
• ⚠️ Wear gloves and eye protection; battery acid is corrosive.

---

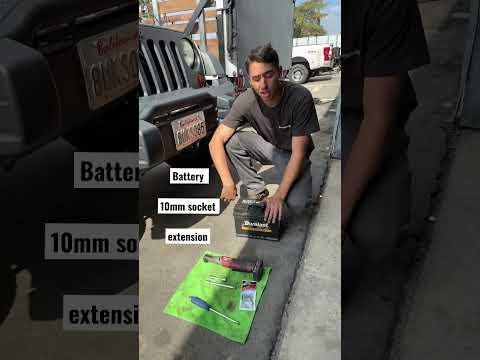

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 3/8" ratchet
• 6" socket extension
• 10mm combination wrench
• Battery terminal brush
• Shop rags
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (Group 34, top-post) - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 2
• Battery terminal corrosion protectant - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to neutral, and set the parking brake.
• Open the hood and locate the battery (engine bay, passenger-side/front area).
• Plan to reset the clock/radio presets after reconnecting the battery.
• If you see heavy corrosion (blue/green crust), have extra rags ready and work slowly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the battery

• Open the hood and confirm you can clearly see both battery terminals.
• If there’s a protective cover/insulator, remove it by hand and set it aside.

Step 2: Disconnect the negative (-) battery cable

• Use a 10mm socket (or 10mm combination wrench) to loosen the nut on the negative (-) terminal clamp.
• Twist the clamp gently and lift it straight up off the battery post.
• Move the cable aside so it cannot spring back onto the terminal. Negative off first prevents accidental shorts.

Step 3: Disconnect the positive (+) battery cable

• Use a 10mm socket to loosen the nut on the positive (+) terminal clamp.
• Lift the clamp off the post and position it so it cannot touch metal.

Step 4: Remove the battery hold-down

• At the base of the battery, remove the hold-down bolt using a 13mm socket, 3/8" ratchet, and 6" socket extension.
• Remove the hold-down bracket/wedge and set it aside.

Step 5: Remove the old battery

• Lift the battery straight up and out using safe posture (bend knees, keep back straight).
• Set the old battery on the ground in a safe spot, upright.

Step 6: Clean the terminals and tray

• Use a battery terminal brush to clean the inside of both cable clamps until the metal looks bright.
• Wipe the tray area with shop rags. Make sure no debris can keep the new battery from sitting flat.
• “Terminal brush” is a stiff brush made for battery posts.

Step 7: Install the new battery and secure it

• Place the new battery in the tray in the same orientation as the old one (positive and negative in the same positions).
• Reinstall the hold-down bracket and tighten the bolt using a 13mm socket and 3/8" ratchet.
• Ensure the battery does not move by hand when you try to wiggle it.

Step 8: Reconnect the positive (+) cable first

• Install an battery terminal anti-corrosion pad onto the positive post.
• Push the positive clamp fully down on the post, then tighten with a 10mm socket.
• Apply a light coat of battery terminal corrosion protectant after tightening.

Step 9: Reconnect the negative (-) cable last

• Install an battery terminal anti-corrosion pad onto the negative post.
• Push the negative clamp fully down on the post, then tighten with a 10mm socket.
• Apply a light coat of battery terminal corrosion protectant after tightening.

---

✅ After Repair

• Start your Wrangler and confirm it cranks strongly and starts normally.
• Verify electrical items work: headlights, blower fan, wipers, and interior lights.
• Reset the clock and radio presets if they were lost.
• If idle seems odd for a few minutes, let it idle and then take a short drive; the PCM may relearn.
• Bring the old battery to an auto parts store for proper recycling (often includes a core credit).

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $120-$220 (parts only)

You Save: $60-$130 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
