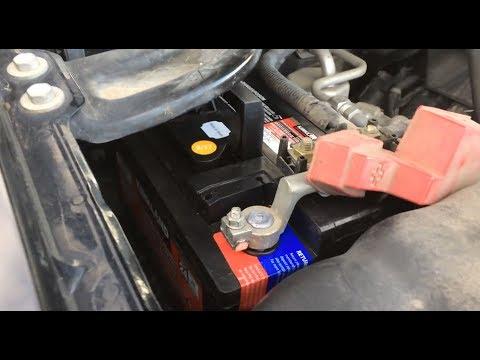

🔧 Sierra 1500 - Battery Replacement

On your Sierra 1500, the 12V battery is in the engine bay and uses GM-style side terminals. You’ll remove the hold-down, swap the battery, then reconnect the cables in the correct order to avoid sparks and electrical damage.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Wear eye protection and gloves—battery acid is corrosive.
• ⚠️ Keep flames/sparks away; batteries can vent explosive gas.
• ⚠️ Always disconnect negative (-) first, reconnect negative (-) last.
• ⚠️ Do not let a tool touch both the terminal and metal body parts.
• 🔋 Battery disconnect is required for replacement; you may lose radio presets/clock.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 13mm socket
• 3/8" ratchet
• 6" socket extension
• Torque wrench (in-lb and ft-lb)
• Battery terminal brush
• Small wire brush
• Baking soda
• Clean water (spray bottle)
• Shop towels
• Nitrile gloves
• Safety glasses
• Memory saver (OBD-II) (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (Group 78, side-terminal, 700+ CCA) - Qty: 1
• Battery terminal anti-corrosion spray - Qty: 1
• Dielectric grease - Qty: 1
• Battery terminal felt washers (side-terminal style) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to P, and turn the key off.
• Open the hood and let the engine bay cool if it’s hot.
• If you want to keep radio presets, use a memory saver (a device that supplies low power through the OBD-II port while the battery is disconnected).
• Confirm the new battery matches the old one: Group 78 and side terminals.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the battery

• Locate the battery at the front of the engine bay.
• If equipped with a cover/air duct, remove any retaining fasteners using a 8mm socket or 13mm socket as needed, then lift it off.

Step 2: Disconnect the negative (-) cable

• Use a 8mm socket with a 3/8" ratchet to loosen the negative (-) side-terminal bolt.
• Pull the negative cable straight out from the battery (don’t pry on the battery case).
• Tuck the cable aside so it cannot spring back and touch the terminal.

Step 3: Disconnect the positive (+) cable

• Use a 8mm socket with a 3/8" ratchet to loosen the positive (+) side-terminal bolt.
• Remove the cable and position it safely away from the battery.

Step 4: Remove the battery hold-down

• Use a 13mm socket with a 6" socket extension and 3/8" ratchet to remove the battery hold-down bolt/nut at the base of the battery.
• Lift the hold-down bracket out and set it aside.

Step 5: Remove the old battery

• Grab the battery by the handle and lift it straight up and out. It’s heavy—lift with your legs.
• Set it on the ground upright (do not tip it).

Step 6: Clean the tray and cable ends

• If you see crusty buildup, sprinkle a little baking soda on the area and mist with clean water to neutralize acid (it may fizz).
• Scrub the tray with a small wire brush, then wipe with shop towels.
• Clean the inside of each cable end using a battery terminal brush.

Step 7: Install the new battery

• Place the new battery into the tray in the same orientation as the old one (side terminals aligned to the cables).
• Reinstall the hold-down bracket and tighten using a 13mm socket and torque wrench: Torque to 20 Nm (15 ft-lbs).

Step 8: Reconnect the positive (+) cable first

• Push the positive cable straight into the side terminal.
• Tighten the side-terminal bolt using a 8mm socket and torque wrench: Torque to 15 Nm (11 ft-lbs).
• Apply a thin coat of dielectric grease (grease that helps prevent corrosion) around the connection, then apply anti-corrosion spray if you have it.

Step 9: Reconnect the negative (-) cable last

• Push the negative cable straight into the side terminal.
• Tighten using a 8mm socket and torque wrench: Torque to 15 Nm (11 ft-lbs).
• Apply a thin coat of dielectric grease around the connection, then apply anti-corrosion spray.

Step 10: Reinstall any covers

• Reinstall the battery cover/air duct (if equipped) using the same hardware removed earlier with a 8mm socket or 13mm socket.
• Make sure nothing is rubbing on the battery cables.

---

✅ After Repair

• Start the engine and confirm it cranks normally.
• With the engine running, charging voltage should typically be about 13.5–14.8V (if you have a meter).
• Reset the clock and re-save radio presets if needed.
• Recycle the old battery—most parts stores in/around Panipat will take it.
• If you see corrosion returning quickly, recheck cable tightness and cleanliness.

---

💰 DIY vs Shop Cost

Shop Cost: ₹7,000-₹14,000 (battery + labor)

DIY Cost: ₹6,000-₹13,000 (battery only)

You Save: ₹1,000-₹3,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹2,000/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
