🔧 Grand Cherokee - Battery Replacement

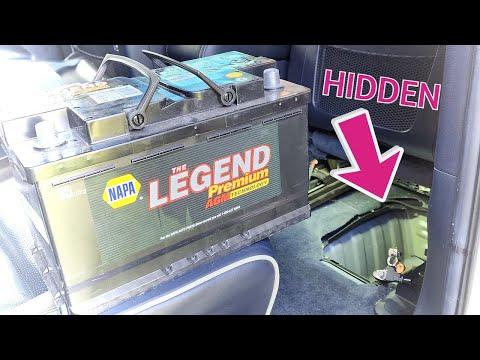

On your Grand Cherokee, the main battery is located under the front passenger seat. You’ll slide the seat to access the battery cover, disconnect the old battery safely, and install the new one with the vent tube attached so fumes are routed correctly.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• 🧯 Turn ignition fully OFF, remove the key/fob from the vehicle, and wait 5 minutes before disconnecting the battery so the modules go to “sleep.”
• 🧤 Batteries are heavy and contain acid; wear gloves and safety glasses.
• ⚡ Disconnect the negative (–) terminal first and reconnect it last to reduce short-circuit risk.
• 🔥 Do not let a tool touch both the positive terminal and metal at the same time.
• 🔌 Battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 3/8" drive ratchet
• 6" socket extension
• Trim clip tool
• Torque wrench (inch-pound)
• Torque wrench (ft-lb)
• Battery terminal brush
• Work light
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V main battery (correct fitment for Grand Cherokee) - Qty: 1
• Battery terminal anti-corrosion spray - Qty: 1
• Battery terminal felt washers - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the passenger door and keep it open so you have room to work.
• Use the power seat switch to move the front passenger seat all the way forward and as high as it will go.
• Wait 5 minutes after key-off before touching battery cables.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the battery under the passenger seat

• Use the seat switch to move the passenger seat fully forward and up.
• Use a trim clip tool to release/remove the battery cover fasteners (if equipped), then remove the cover.
• Take a quick photo of cable routing.

Step 2: Disconnect the negative (–) battery cable

• Use a 10mm socket with a 3/8" drive ratchet to loosen the negative terminal clamp nut.
• Wiggle and lift the clamp off the negative post, then position the cable so it cannot spring back onto the terminal.
• Torque to 6 N·m (53 in-lbs) when reinstalling later.
• Negative first prevents accidental shorts.

Step 3: Disconnect the positive (+) battery cable

• Use a 10mm socket with a 3/8" drive ratchet to loosen the positive terminal clamp nut.
• Lift the clamp off the positive post and keep it from touching any metal.
• Torque to 6 N·m (53 in-lbs) when reinstalling later.

Step 4: Remove the battery hold-down and vent tube

• If your battery has a small hose attached: that’s the vent tube (it routes battery gas outside). Gently pull it off the battery vent port by hand.
• Use a 13mm socket with a 6" socket extension and 3/8" drive ratchet to remove the battery hold-down bolt/clamp.
• Torque to 17 N·m (13 ft-lbs) when reinstalling later.

Step 5: Remove the old battery

• Carefully lift the battery straight up and out. Keep it level.
• Set it on the ground (not on carpet) and keep it upright.
• Batteries are heavy—lift with legs.

Step 6: Clean and prep the terminals

• Use a battery terminal brush to clean corrosion from the inside of both cable clamps.
• Install battery terminal felt washers if you’re using them.

Step 7: Install the new battery

• Place the new battery into the tray in the same orientation as the old one.
• Reinstall the hold-down clamp using a 13mm socket, 6" socket extension, and 3/8" drive ratchet.
• Torque to 17 N·m (13 ft-lbs).
• Reconnect the vent tube by pushing it firmly onto the battery vent port (if equipped).

Step 8: Reconnect the positive (+) cable, then the negative (–) cable

• Install the positive clamp first. Use a 10mm socket and 3/8" drive ratchet to tighten.
• Torque to 6 N·m (53 in-lbs).
• Install the negative clamp last. Use a 10mm socket and 3/8" drive ratchet to tighten.
• Torque to 6 N·m (53 in-lbs).
• Apply battery terminal anti-corrosion spray to help prevent future corrosion.

Step 9: Reinstall the battery cover and return the seat

• Reinstall the battery cover and fasteners using a trim clip tool as needed.
• Move the passenger seat back to your normal position.

---

✅ After Repair

• Start the engine and confirm normal cranking and no warning messages.
• Use a work light to re-check both terminals are fully seated and not loose.
• If the auto-up/down power windows act weird, re-learn them: fully raise the window, then hold the switch up for a few seconds; repeat for each window.
• Reset the clock and radio presets if they were lost.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $170-$280 (parts only)

You Save: $80-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
