🔧 Terrain - Battery Replacement

Replacing the battery restores reliable starting and prevents random electrical issues. You’ll remove the old battery, clean the terminals, and install the new one with the correct polarity and tightness.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: your Terrain uses top-post clamps; side-post notes included.

---

⚠️ Safety & Precautions

• ⚠️ Wear eye protection and gloves—battery acid is corrosive.
• ⚠️ Keep sparks/flames away; batteries can vent explosive gas.
• ⚠️ Always disconnect the negative (-) cable first and reconnect it last.
• ⚠️ Don’t let a tool bridge between a battery terminal and metal body parts.
• ⚠️ Ignition OFF, key out, and wait 2 minutes before starting.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 6" extension
• Torque wrench (5-30 ft-lbs range)
• Battery terminal puller (specialty)
• Battery terminal cleaning brush
• Trim clip tool
• Shop rags
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (Group 48 / H6, match OE CCA rating) - Qty: 1
• Battery terminal anti-corrosion washers - Qty: 2
• Battery terminal protectant spray or dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and make sure the engine bay is cool to the touch.
• If you use a “memory saver” (a small device that keeps radio/settings alive), follow its instructions before disconnecting the battery.
• Locate the battery and note the terminal markings: positive is + (usually has a red cover).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

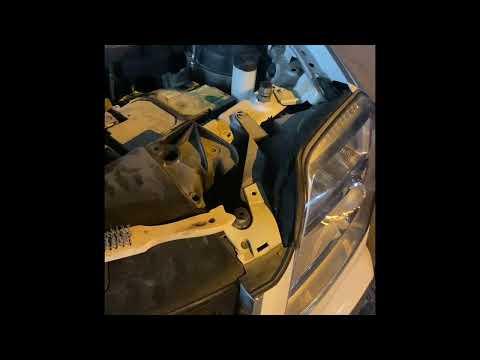

Step 1: Access the battery

• Remove any battery cover or intake snorkel if it blocks access.
• Use a trim clip tool for plastic clips and a 10mm socket for small bolts (if equipped).

Step 2: Disconnect the negative (-) cable

• Use a 10mm socket to loosen the negative terminal clamp nut.
• Twist the clamp gently and lift it off the negative post.
• Tip: Tuck the cable aside so it can’t spring back.
• If the clamp is stuck, use a battery terminal puller (specialty) (it pulls the clamp straight up without prying).
• Torque to 17 Nm (13 ft-lbs) when reinstalling (typical GM top-post clamp spec).

Step 3: Disconnect the positive (+) cable

• Flip up/remove the red terminal cover (if equipped).
• Use a 10mm socket to loosen the positive terminal clamp nut and remove the clamp from the post.
• Torque to 17 Nm (13 ft-lbs) when reinstalling (typical GM top-post clamp spec).

Step 4: Remove the battery hold-down

• The “hold-down” is the bracket that clamps the battery so it can’t move.
• Use a 13mm socket, 3/8" drive ratchet, and 6" extension to remove the hold-down bolt(s).
• Lift out the hold-down bracket and set it aside.
• Torque to 20 Nm (15 ft-lbs) when reinstalling (typical GM hold-down spec).

Step 5: Remove the old battery

• Lift the battery straight up and out using safe lifting posture (it’s heavy).
• Use shop rags to protect nearby parts if you need to rest it briefly.

Step 6: Clean and prep the terminals

• Use a battery terminal cleaning brush to clean the inside of each cable clamp until shiny.
• Wipe debris with shop rags.
• Install battery terminal anti-corrosion washers (one on each post, if used).

Step 7: Install the new battery

• Place the new battery in the tray in the same orientation as the old one.
• Reinstall the hold-down bracket using a 13mm socket and torque wrench.
• Torque to 20 Nm (15 ft-lbs).

Step 8: Reconnect cables (positive first, negative last)

• Reconnect the positive (+) clamp first using a 10mm socket.
• Torque to 17 Nm (13 ft-lbs).
• Apply battery terminal protectant spray or dielectric grease lightly after tightening.
• Reconnect the negative (-) clamp last using a 10mm socket.
• Torque to 17 Nm (13 ft-lbs).

Step 9: Side-post variant note (only if your battery uses side bolts)

• If your Terrain has side-terminal bolts instead of top clamps, use a 10mm socket to remove/install the side bolts.
• Torque to 15 Nm (11 ft-lbs) (typical GM side-terminal spec).

---

✅ After Repair

• Start the engine and confirm it cranks strongly.
• Check that the battery is secure and the cables do not rotate by hand.
• Reset clock/date and radio presets if they were lost.
• If the battery light stays on, re-check terminal tightness and cable seating.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 (parts + labor)

DIY Cost: $140-$280 (parts only)

You Save: $80-$140 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
