🔧 Equinox - Battery Replacement

You’ll be replacing the 12V starting battery under the hood of your Equinox. This restores reliable starting and prevents electrical issues like dim lights or slow cranking.

Difficulty Level: Beginner | Estimated Time: 0.5–1 hour

---

⚠️ Safety & Precautions

• 🛑 Always turn the engine off and remove the key before working on the battery.
• 🛑 Wear eye protection and gloves; batteries contain acid and can spark.
• 🛑 Do not let metal tools touch both battery terminals at the same time.
• 🛑 Always disconnect the negative (–) cable first and reconnect it last to reduce the chance of a short circuit.
• 🛑 Keep flames, cigarettes, and sparks away from the battery; it can release explosive gas.
• 🛑 If the old battery is swollen, cracked, or leaking, handle it very carefully and avoid skin contact with any fluid.
• 🛑 No full battery disconnect “coding” is required on your Equinox, but your radio presets and clock may reset.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 10mm socket
• 🧰 13mm socket
• 🧰 1/4" drive ratchet
• 🧰 3/8" drive ratchet
• 🧰 3" socket extension
• 🧰 Flathead screwdriver (medium)
• 🧰 Needle-nose pliers
• 🧰 Battery terminal cleaning brush
• 🧰 Shop rags
• 🧰 Safety glasses
• 🧰 Nitrile or mechanic gloves
• 🧰 Memory saver device (12V OBD or power outlet type) (specialty)
• 🧰 Wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 12V battery (Group 48/H6, correct CCA for Equinox) - Qty: 1
• 🔩 Battery terminal protector spray - Qty: 1
• 🔩 Anti-corrosion battery washers - Qty: 2
• 🔩 Battery hold-down bolt and clamp - Qty: 1 set (only if existing parts are rusted or damaged)

---

📋 Before You Begin

• 🚗 Park the Equinox on level ground, shift to Park, and set the parking brake.
• 🔑 Turn off the engine, remove the key, and switch off all lights and accessories.
• 💾 If you have a memory saver, plug it into the OBD port under the dash or the 12V power outlet, following its instructions. This helps keep radio presets and other settings.
• 📸 Take a clear photo of the battery area so you remember cable routing and connections.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the hood and locate the battery

• Pull the interior hood release handle near the driver’s kick panel, then release the secondary latch under the front edge of the hood.
• Lift the hood and secure it with the prop rod.
• The battery on your Equinox is on the right (passenger) side of the engine bay under a plastic cover.

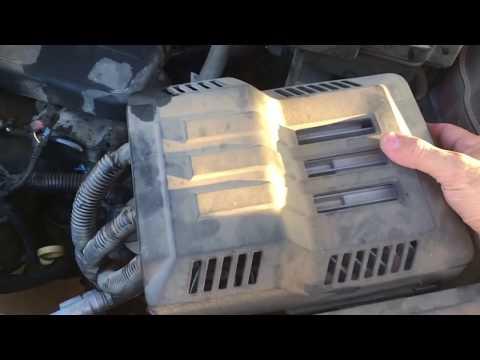

Step 2: Remove the battery cover

• Use the flathead screwdriver to gently release the plastic tabs on the battery top cover.
• Lift the cover up and set it aside where it won’t get stepped on.
• Don’t force tabs; they can snap easily.

Step 3: Identify positive and negative terminals

• The positive (+) terminal usually has a red cover and may be marked with a “+”.
• The negative (–) terminal is usually black and may connect directly to the body metal nearby.
• Double-check markings before loosening anything.

Step 4: Disconnect the negative (–) cable

• Use the 10mm socket and 1/4" drive ratchet to loosen the nut on the negative terminal clamp.
• Twist the clamp gently and lift it off the battery post.
• If it’s stuck, use the flathead screwdriver to gently pry it open, but do not damage the clamp.
• Move the cable end away from the battery and tuck it to the side so it cannot spring back or touch the terminal.

Step 5: Disconnect the positive (+) cable

• Flip open or remove the red plastic cover on the positive terminal.
• Use the 10mm socket and 1/4" drive ratchet to loosen the nut on the positive terminal clamp.
• Lift the clamp off the post and move the cable aside.
• Never let this clamp touch any metal part of the car.

Step 6: Remove the battery hold-down clamp

• Look at the base of the battery for a metal or plastic bracket on one side that holds it down.
• Use the 13mm socket, 3/8" drive ratchet, and 3" extension to remove the hold-down bolt at the bottom.
• Lift out the hold-down clamp and set it aside.
• Keep the bolt and clamp together so you don’t lose them.

Step 7: Lift out the old battery

• Grip the battery by the built-in handle; if it has no handle, hold the sides firmly.
• Lift the battery straight up and out of the tray. It is heavy, so lift with your legs, not just your back.
• Place the old battery upright on the ground away from children or pets.

Step 8: Clean the battery tray and terminals

• Use shop rags to wipe out any dirt or moisture from the battery tray.
• Use the battery terminal cleaning brush to clean the inside of both cable clamps until shiny metal is visible.
• If there is heavy corrosion (white/green crust), use the wire brush carefully to remove it.
• A clean connection helps prevent starting problems.

Step 9: Place the new battery in the tray

• Check that the new battery matches the old one in size and that the positive and negative posts are in the same positions.
• Lower the new battery into the tray with the positive (+) terminal on the same side as the old one.
• Make sure it sits flat and is not rocking.

Step 10: Reinstall the hold-down clamp

• Reposition the hold-down clamp at the base of the battery.
• Install the bolt by hand first so you don’t cross-thread it.
• Use the 13mm socket, 3/8" drive ratchet, and 3" extension to tighten the hold-down bolt.
• Torque to 20 Nm (15 ft-lbs) – snug but not extreme.
• Battery must not move when you push it.

Step 11: Install anti-corrosion washers (optional but recommended)

• Slide one anti-corrosion washer over each battery post (positive and negative) before reconnecting the cables.
• Match colors if provided: usually red for positive, green for negative.

Step 12: Reconnect the positive (+) cable

• Place the positive cable clamp fully down on the positive (+) battery post.
• Use the 10mm socket and 1/4" drive ratchet to tighten the clamp nut until the clamp does not move on the post.
• Torque to 7–10 Nm (5–7 ft-lbs) – firm but do not over-tighten.
• Close the red plastic cover over the terminal.

Step 13: Reconnect the negative (–) cable

• Place the negative cable clamp fully down on the negative (–) battery post.
• Use the 10mm socket and 1/4" drive ratchet to tighten the clamp nut.
• Torque to 7–10 Nm (5–7 ft-lbs).
• Check that both clamps are snug and do not rotate by hand.

Step 14: Apply terminal protector and reinstall battery cover

• Spray a light coat of battery terminal protector spray on both terminals and clamps.
• Let it sit for a minute to dry slightly.
• Refit the plastic battery top cover and press it down until all tabs click into place.

Step 15: Remove memory saver (if used) and close the hood

• If you used a memory saver, unplug it from the OBD port or power outlet.
• Lower the hood to about 20–30 cm from closed, then let it drop to latch securely.
• Gently tug up on the hood front to confirm it is fully latched.

---

✅ After Repair

• 🔑 Start the engine and make sure it cranks quickly and starts smoothly.
• 💡 Check headlights, interior lights, horn, power windows, and wipers to confirm electrical systems work normally.
• 📻 Reset the clock and radio presets if they were lost.
• 🧾 Check the dash for any warning lights. A battery or check engine light that stays on after a few minutes may need a scan; otherwise, a brief light at startup is normal.
• 🪫 Recycle the old battery at a parts store or recycling center; do not throw it in the trash.

---

💰 DIY vs Shop Cost

Shop Cost: $220–$320 (parts + labor)

DIY Cost: $140–$220 (battery + supplies)

You Save: $80–$120 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.5–0.8 hours.

---
