🔧 Camry - Battery Replacement

Replacing the battery on your Camry is a straightforward under-hood job. The key is removing the cables in the correct order and securing the new battery so it can’t move while driving.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Keep keys out of the ignition and all accessories OFF.
• ⚠️ Remove the negative (-) cable first to prevent accidental short circuits.
• ⚠️ Battery acid is corrosive—wear gloves and safety glasses.
• ⚠️ Do not let a metal tool touch the battery positive post and body metal at the same time.
• ⚠️ Battery is heavy—lift with both hands and keep it upright.
• 🔌 Battery disconnect is not strictly required, but you will be disconnecting it during the job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" extension (1/4" drive)
• 10mm combination wrench
• Inch-pound torque wrench (specialty)
• Battery terminal brush
• Small flathead screwdriver
• Nitrile gloves
• Safety glasses
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V car battery (Group 24F) - Qty: 1
• Battery terminal anti-corrosion spray - Qty: 1
• Battery terminal felt washer kit - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to neutral, and set the parking brake.
• Open the hood and let the engine bay cool if it’s hot.
• Lay a fender cover to protect paint.
• If you have a lot of custom radio/clock settings, write them down first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

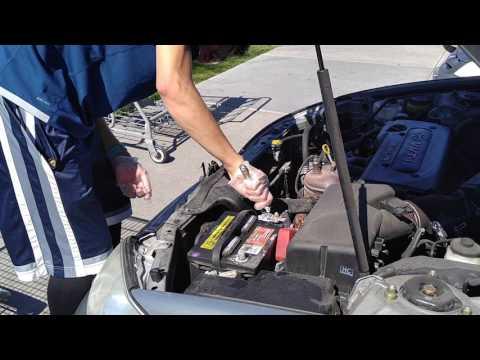

Step 1: Locate the battery and inspect the hold-down

• Open the hood and find the battery in the engine bay.
• Look for the battery hold-down bracket (the metal bar that clamps the battery). Hold-down keeps battery from shifting.

Step 2: Disconnect the negative (-) battery cable

• Use a 10mm socket and 1/4" ratchet to loosen the negative terminal clamp nut.
• Wiggle the clamp and lift it off the negative post, then tuck it aside so it can’t spring back.
• Torque to 5.4 Nm (48 in-lbs) during reassembly.

Step 3: Disconnect the positive (+) battery cable

• Use a 10mm socket and 1/4" ratchet to loosen the positive terminal clamp nut.
• Lift the clamp off the positive post.
• Torque to 5.4 Nm (48 in-lbs) during reassembly.

Step 4: Remove the battery hold-down bracket

• Use a 10mm socket, 1/4" ratchet, and 6" extension to remove the hold-down nuts/bolts.
• Lift the hold-down bracket off and set it aside.
• Torque to 7.4 Nm (65 in-lbs) during reassembly.

Step 5: Remove the old battery

• Put on nitrile gloves and safety glasses.
• Lift the battery straight up and out (keep it upright).
• If there’s a battery tray liner, lift it out and clean underneath.

Step 6: Clean the terminals and tray

• Use a battery terminal brush to clean the inside of both cable clamps until the metal looks bright.
• If needed, use a small flathead screwdriver to gently break loose heavy corrosion (don’t gouge the clamp).
• Clean metal makes starting easier.

Step 7: Install the new battery

• Set the new battery into the tray in the same orientation as the old one (posts in the same positions).
• Reinstall the hold-down bracket using the 10mm socket, ratchet, and extension.
• Use an inch-pound torque wrench (specialty) to tighten: Torque to 7.4 Nm (65 in-lbs).

Step 8: Reconnect the cables (positive first)

• Install the felt washers (if included) onto the posts.
• Place the positive (+) clamp on the positive post, then tighten using a 10mm socket.
• Tighten with an inch-pound torque wrench (specialty): Torque to 5.4 Nm (48 in-lbs).
• Place the negative (-) clamp on the negative post last, then tighten using a 10mm socket.
• Tighten with an inch-pound torque wrench (specialty): Torque to 5.4 Nm (48 in-lbs).

Step 9: Protect against corrosion

• Spray a light coat of battery terminal anti-corrosion spray around both terminal connections.
• Gently tug each cable by hand to confirm it’s fully seated and secure.

---

✅ After Repair

• Start your Camry and confirm it cranks strongly.
• Reset the clock and any radio presets if they changed.
• With the engine running, verify charging is normal if you have a meter: typically about 13.5–14.5V at the battery.
• Recheck terminal tightness after 1-2 days of driving.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$380 (parts + labor)

DIY Cost: $120-$250 (parts only)

You Save: $80-$130 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
