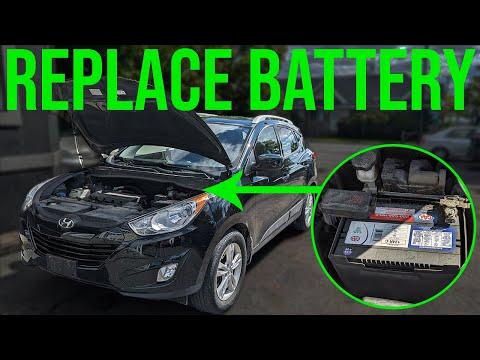

🔧 Tucson - Battery Replacement

Replacing the 12-volt battery on your Tucson is a beginner-friendly job. The battery powers the starter, lights, and control modules, so a weak or dead battery can cause slow cranking, warning lights, or a no-start condition.

Difficulty Level: Beginner | Estimated Time: 20-40 minutes

---

⚠️ Safety & Precautions

• ⚠️ Always remove the negative cable first to reduce the chance of sparks.
• ⚠️ Keep metal tools away from both battery posts at the same time.
• ⚠️ Wear safety glasses and gloves because battery acid can burn skin and eyes.
• ⚠️ Do not smoke or create sparks near the battery; batteries can vent flammable gas.
• ⚠️ Your Tucson does not require battery coding or registration after replacement.
• ⚠️ Battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 3/8-inch ratchet
• 6-inch extension
• Battery terminal puller (specialty)
• Battery terminal cleaning brush
• Battery carrier strap
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12-volt automotive battery - Qty: 1
• Battery terminal protectant - Qty: 1
• Battery terminal anti-corrosion washers - Qty: 2

---

📋 Before You Begin

• 🚗 Park your Tucson on level ground, shift to neutral, set the parking brake, and turn the ignition fully off.
• 🔑 Remove the key from the ignition and keep it away from the vehicle while working.
• ⏱️ Wait at least 3 minutes after turning the ignition off before disconnecting the battery.
• 🧠 A battery disconnect can reset the clock, radio presets, and power window auto-up/down memory.
• 📌 A battery terminal puller is a small clamp tool that lifts a stuck cable end off the battery post without prying.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the Hood and Locate the Battery

• Use your hands to release the hood latch, then raise the hood and secure it with the prop rod.
• The battery is in the engine bay on the driver-side front area.
• Put on safety glasses and nitrile gloves before touching the battery.
• Take a photo before disconnecting anything.

Step 2: Loosen the Negative Battery Cable

• Find the negative terminal marked with a minus sign: -.
• Use a 10mm socket with a 3/8-inch ratchet to loosen the negative terminal clamp nut.
• Twist the cable end gently by hand and lift it off the battery post.
• If it is stuck, use a battery terminal puller (specialty).
• Move the negative cable aside so it cannot spring back and touch the battery post.

Step 3: Loosen the Positive Battery Cable

• Find the positive terminal marked with a plus sign: +.
• Lift the red protective cover by hand if fitted.
• Use a 10mm socket with a 3/8-inch ratchet to loosen the positive terminal clamp nut.
• Lift the positive cable off the battery post by hand.
• If it is stuck, use a battery terminal puller (specialty).

Step 4: Remove the Battery Hold-Down Bracket

• The hold-down bracket keeps the battery from moving while driving.
• Use a 12mm socket, 6-inch extension, and 3/8-inch ratchet to remove the hold-down bolt at the base of the battery.
• Remove the hold-down bracket by hand and set it aside.
• Do not drop the bolt into the engine bay.

Step 5: Remove the Old Battery

• Attach a battery carrier strap to the battery if it does not have a built-in handle.
• Lift the battery straight up and out using both hands.
• Keep the battery upright at all times.
• Set it on cardboard or a plastic tray, not directly on finished surfaces.
• Batteries are heavier than they look.

Step 6: Clean the Battery Tray and Cable Ends

• Use a battery terminal cleaning brush to clean the inside of both cable clamps.
• Use the same battery terminal cleaning brush to clean light corrosion from the battery tray area.
• If you see white or green crusty buildup, avoid touching it with bare hands.
• Make sure the tray is dry and clear before installing the new battery.

Step 7: Install the New Battery

• Use a battery carrier strap to lower the new battery into the tray.
• Make sure the positive post is on the same side as the positive cable.
• Install the battery squarely in the tray so it sits flat.
• Place battery terminal anti-corrosion washers over the battery posts if supplied.

Step 8: Reinstall the Hold-Down Bracket

• Install the hold-down bracket by hand at the base of the battery.
• Use a 12mm socket, 6-inch extension, and 3/8-inch ratchet to tighten the hold-down bolt.
• Torque to 9-12 Nm (80-106 in-lbs).
• Gently push the battery by hand. It should not slide or tip.

Step 9: Connect the Positive Cable First

• Place the positive cable clamp onto the positive battery post marked +.
• Push it fully down by hand so it sits low on the post.
• Use a 10mm socket and 3/8-inch ratchet to tighten the clamp nut.
• Torque to 4-6 Nm (35-53 in-lbs).
• Close the red protective cover by hand if fitted.

Step 10: Connect the Negative Cable Last

• Place the negative cable clamp onto the negative battery post marked -.
• Push it fully down by hand so it sits low on the post.
• Use a 10mm socket and 3/8-inch ratchet to tighten the clamp nut.
• Torque to 4-6 Nm (35-53 in-lbs).
• Apply battery terminal protectant lightly to both installed terminals.

Step 11: Check Your Work

• Use your hands to gently wiggle each cable clamp.
• If a clamp moves, use a 10mm socket and 3/8-inch ratchet to snug it slightly.
• Do not overtighten the clamps because battery posts can crack.
• Make sure no tools are left near the battery or engine.

---

✅ After Repair

• ✅ Start your Tucson and confirm it cranks normally.
• ✅ Check that the battery warning light turns off after the engine starts.
• ✅ Reset the clock and radio presets if needed.
• ✅ If the power window auto function does not work, fully lower the window, then fully raise it and hold the switch up for 2-5 seconds.
• ✅ Recycle the old battery at a parts store or recycling center; do not throw it in household trash.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$330 (parts + labor)

DIY Cost: $120-$230 (parts only)

You Save: $60-$100 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.5 hours.

---
