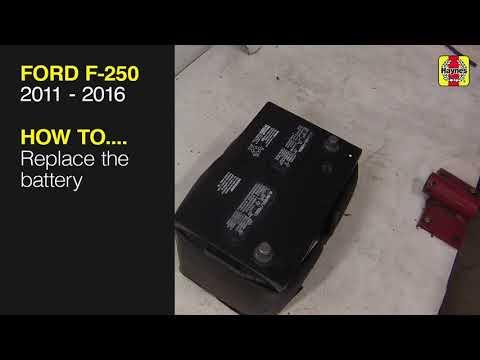

🔧 F-250 Super Duty - Battery Replacement

You’ll remove the old 12V battery from the engine bay and install a new one, then clean and protect the terminals so it starts reliably. This is a straightforward job, but the battery is heavy and the terminals can spark if handled in the wrong order.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: OEM-style single under-hood battery with top-post terminals.

---

⚠️ Safety & Precautions

• ⚠️ Turn ignition OFF, remove the key, and keep it away from the truck.
• ⚠️ Wear eye protection and gloves; battery acid is corrosive.
• ⚠️ Always disconnect negative (-) first and reconnect negative (-) last to reduce spark risk.
• ⚠️ Do not let a tool touch the battery positive and any metal at the same time.
• ⚠️ Battery is heavy—lift with your legs, not your back.
• ⚠️ Battery disconnect is not required beyond removing the terminals for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 3/8" ratchet
• 6" extension for 3/8" ratchet
• Torque wrench 20-200 in-lb
• Battery terminal puller (specialty)
• Battery terminal cleaning brush
• Digital multimeter
• OBD-II memory saver (specialty)
• Nitrile gloves
• Safety glasses
• Shop rags
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (Group 65, top-post, heavy-duty) - Qty: 1
• Battery terminal anti-corrosion spray - Qty: 1
• Battery terminal felt washers - Qty: 1 set

---

📋 Before You Begin

• 🧰 Park on level ground, shift to Park, and set the parking brake.
• 🧰 Open the hood and let the engine bay cool if it was recently driven.
• 🧰 If you want to keep radio presets and module memory: plug in an OBD-II memory saver (a small device that supplies backup power through the diagnostic port) before disconnecting the battery.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the battery and check access

• Open the hood and locate the battery in the engine bay.
• Set your work light so you can clearly see both terminals and the hold-down.

Step 2: Disconnect the negative (-) terminal

• Use a 10mm socket, 3/8" ratchet, and 6" extension to loosen the negative terminal clamp bolt.
• Wiggle and lift the negative cable end straight up off the battery post.
• Tuck the negative cable to the side so it cannot spring back and touch the terminal.
• Negative off first prevents accidental shorting.

Step 3: Disconnect the positive (+) terminal

• Use a 10mm socket and 3/8" ratchet to loosen the positive terminal clamp bolt.
• Remove the positive cable end from the battery post and position it safely away from the battery.

Step 4: Remove the battery hold-down

• Use a 13mm socket, 3/8" ratchet, and 6" extension to remove the battery hold-down bolt(s).
• Lift out the hold-down bracket/wedge and set it aside.
• When reinstalling later: Torque hold-down fastener to 80-120 in-lb (9-14 Nm).

Step 5: Lift out the old battery

• With nitrile gloves on, lift the battery straight up and out.
• Keep it upright to avoid any acid spill.

Step 6: Clean and prep the tray and terminals

• Use shop rags to clean debris from the battery tray.
• Use a battery terminal cleaning brush to clean the inside of the cable clamps until the metal looks bright.
• If a clamp is stuck on a post, use a battery terminal puller (specialty) (a small screw tool that presses the clamp off without prying).

Step 7: Install the new battery and secure it

• Set the new battery into the tray in the same orientation as the old one.
• Reinstall the hold-down using the 13mm socket and 3/8" ratchet.
• Use the torque wrench 20-200 in-lb and 13mm socket: Torque hold-down fastener to 80-120 in-lb (9-14 Nm).

Step 8: Reconnect the positive (+) terminal first

• Install the battery terminal felt washer on the positive post (if included in your kit).
• Push the positive cable clamp fully down on the positive post.
• Use a 10mm socket and torque wrench 20-200 in-lb: Torque terminal clamp bolt to 45-70 in-lb (5-8 Nm).

Step 9: Reconnect the negative (-) terminal last

• Install the battery terminal felt washer on the negative post (if included).
• Push the negative cable clamp fully down on the negative post.
• Use a 10mm socket and torque wrench 20-200 in-lb: Torque terminal clamp bolt to 45-70 in-lb (5-8 Nm).

Step 10: Protect against corrosion

• Spray a light coat of battery terminal anti-corrosion spray on both terminal connections.
• Wipe any overspray with shop rags.

---

✅ After Repair

• 🧪 Start the truck and confirm it cranks strongly with no warning messages.
• 🧪 Use a digital multimeter across the battery posts with the engine running; you should typically see about 13.5-14.8V (charging system working).
• 🧪 Reset the clock and radio presets if they were lost.
• 🧪 If auto-up/down windows act weird, cycle each window fully down and fully up once to relearn.

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000-₹22,000 (parts + labor)

DIY Cost: ₹10,000-₹20,000 (parts only)

You Save: ₹2,000-₹4,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹2,000/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
