🔧 Express - Battery Replacement

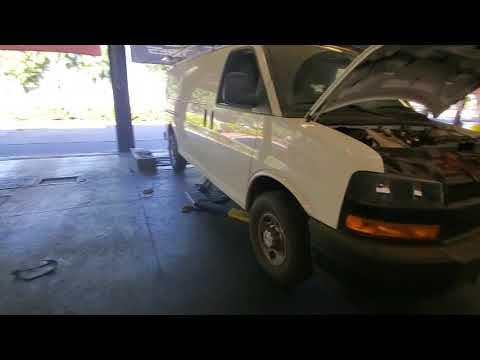

Replacing the battery restores reliable starting and prevents random electrical glitches. On your Express, the battery sits in the engine bay and is held by a clamp/hold-down.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: Most Express vans use a Group 78 battery; match your old battery’s group/terminal style.

---

⚠️ Safety & Precautions

• ⚠️ Turn ignition OFF, remove key, and keep it in your pocket.
• ⚠️ Wear eye protection and gloves—battery acid is corrosive.
• ⚠️ Always disconnect negative (-) first and reconnect it last to prevent accidental short-circuits.
• ⚠️ Do not let a tool touch the battery positive (+) and metal at the same time.
• ⚠️ Keep flames/sparks away—batteries can vent flammable gas.
• ⚠️ Battery disconnect is not required beyond removing the cables for this job (you will be disconnecting them as part of the repair).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 3/8" ratchet
• 6" socket extension
• Torque wrench (inch-pound or Nm capable)
• Battery terminal cleaning brush (specialty)
• Small flathead screwdriver
• Work light
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 12V battery (Group 78, side-terminal style) - Qty: 1
• Battery terminal anti-corrosion washers or spray - Qty: 1
• Battery terminal felt pads - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Open the hood and let the engine bay cool if it’s hot.
• If you have radio presets you care about, write them down (some settings may reset).
• Identify the terminals: negative (-) usually has a black cable; positive (+) often has a red cover.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the battery

• Open the hood and locate the battery in the engine bay.
• If there’s a protective cover, release it using a small flathead screwdriver and set it aside.

Step 2: Disconnect the negative (-) cable first

• Use a 10mm socket and 3/8" ratchet to loosen the negative terminal bolt.
• Wiggle the cable off and move it aside so it can’t spring back and touch the battery.
• Tip: Tuck the cable behind a hose.

Step 3: Disconnect the positive (+) cable

• Flip open the red terminal cover (if equipped).
• Use a 10mm socket and 3/8" ratchet to loosen the positive terminal bolt.
• Remove the cable and keep it from touching metal parts.

Step 4: Remove the battery hold-down

• Locate the battery hold-down clamp at the base of the battery.
• Use a 13mm socket, 6" extension, and 3/8" ratchet to remove the hold-down bolt.
• Lift out the clamp and set it aside.

Step 5: Remove the old battery

• Lift the battery straight up and out. Batteries are heavy—use good lifting posture.
• Set the old battery on the ground upright.

Step 6: Clean the terminals and tray

• Use a battery terminal cleaning brush (specialty) (a brush made to scrub battery terminals) to clean corrosion off the cable ends.
• Wipe the battery tray area clean with a dry rag you don’t mind getting dirty (avoid touching any residue).

Step 7: Install the new battery

• Place the new battery into the tray in the same orientation as the old one.
• Reinstall the hold-down clamp and bolt using a 13mm socket, extension, and ratchet.
• Tighten with a torque wrench: Torque to 15 Nm (11 ft-lbs).

Step 8: Reconnect cables (positive first, negative last)

• Install anti-corrosion pads/spray (if using).
• Reconnect the positive (+) cable using a 10mm socket and ratchet, then torque: Torque to 13 Nm (115 in-lbs).
• Reconnect the negative (-) cable using a 10mm socket and ratchet, then torque: Torque to 13 Nm (115 in-lbs).
• Reinstall any terminal covers and the battery cover (if equipped).

---

✅ After Repair

• Start the engine and confirm it cranks normally.
• Turn on headlights and blower motor to confirm stable power.
• Check that no cables can wiggle on the terminals.
• Reset the clock and radio presets if needed.
• Bring the old battery to a parts store for proper recycling (most give a core credit).

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 (parts + labor)

DIY Cost: $140-$260 (parts only)

You Save: $80-$160 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
