🔧 Explorer - Alternator Replacement

You’ll remove the old alternator (the part that charges the battery) and install a new one on your Explorer. This involves loosening the drive belt, unbolting the alternator, swapping it, and refitting the belt.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always disconnect the battery negative cable before working; the alternator has a live heavy-gauge power wire.
• ⚠️ Let the engine cool fully before starting; you’ll work close to hot components.
• ⚠️ If you lift the front of your Explorer, always use jack stands; never rely on a jack alone.
• ⚠️ Keep metal tools away from the battery positive terminal to avoid sparks and short circuits.
• ⚠️ Do not pull on the serpentine belt while the engine is running.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠 8mm socket
• 🛠 10mm socket
• 🛠 13mm socket
• 🛠 15mm socket
• 🛠 3/8" drive ratchet
• 🛠 3/8" drive 6" extension
• 🛠 1/2" drive ratchet
• 🛠 1/2" drive torque wrench (10–100 ft-lbs range)
• 🛠 Serpentine belt tool (low-profile) (specialty)
• 🛠 Flathead screwdriver (medium)
• 🛠 Needle-nose pliers
• 🛠 Work light or LED lamp
• 🛠 Floor jack (rated 3-ton minimum)
• 🛠 Jack stands (rated 3-ton minimum)
• 🛠 Mechanic’s gloves
• 🛠 Safety glasses
• 🛠 Fender cover or thick towel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Alternator (correct for 3.3L Explorer) - Qty: 1
• 🔩 Alternator mounting bolts (optional replacement set) - Qty: 1 set
• 🔩 Serpentine drive belt - Qty: 1
• 🔩 Battery terminal cleaning brush - Qty: 1
• 🔩 Dielectric grease - Qty: 1 small tube
• 🔩 Anti-seize compound - Qty: 1 small tube
• 🔩 Shop towels - Qty: 1 pack

---

📋 Before You Begin

• Park your Explorer on level ground, shift to Park, and set the parking brake.
• Open the hood and support it fully.
• Take a clear photo of the serpentine belt routing sticker under the hood, or of the belt on the pulleys.
• Disconnect the battery negative terminal with a 10mm socket and position the cable where it cannot spring back.
• If access is tight from above for you, safely raise the front with a floor jack and support with jack stands under the front subframe.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove engine cover and get access

• Lift off the plastic engine cover by pulling straight up; it is held by rubber grommets.
• If there is an air intake duct blocking access, loosen its clamps with a flathead screwdriver and remove the duct.
• Keep removed parts in order on a clean towel.

Step 2: Disconnect the battery safely

• Use a 10mm socket and 3/8" ratchet to loosen the nut on the negative (-) battery terminal.
• Lift the cable off and tuck it to the side so it cannot touch the battery post.

Step 3: Relieve tension from the serpentine belt

• The serpentine belt is the long belt that drives the alternator, AC, and other pulleys.
• Place the serpentine belt tool or a 1/2" drive ratchet into the square hole on the tensioner arm.
• Rotate the tensioner in the direction that loosens the belt (usually clockwise when viewed from the front on this engine).
• While holding tension off with one hand, slip the belt off the alternator pulley with your other hand.
• Slowly release the tensioner back to its resting position.
• Do not let the tensioner snap back quickly.

Step 4: Move the belt out of your way

• You do not have to fully remove the belt if you are replacing only the alternator, but this is a good time to install a new belt.
• Gently push the belt off nearby pulleys so you have clear access to the alternator.

Step 5: Disconnect alternator electrical connectors

• Locate the large power cable on the back of the alternator under a plastic cap.
• Pop off the plastic cap with a flathead screwdriver.
• Use a 13mm socket and 3/8" ratchet to remove the nut holding the heavy-gauge wire to the alternator stud.
• Pull the cable off and set it aside.
• Unplug the smaller electrical connector by pressing the tab with your thumb or needle-nose pliers and pulling straight out.
• Never pull connectors by the wires, only by the plug.

Step 6: Remove alternator mounting bolts

• There are usually two main mounting bolts on the alternator (top and bottom) that go into the front of the engine.
• Use a 15mm socket, 3/8" ratchet, and extension if needed to remove the upper mounting bolt(s).
• Use the same 15mm socket and tools to remove the lower mounting bolt(s).
• Support the alternator with one hand as you remove the final bolt so it does not drop.

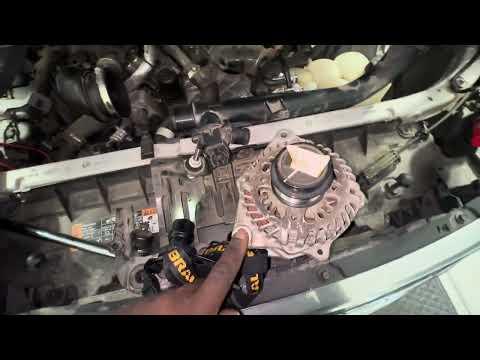

Step 7: Remove the alternator from the engine bay

• Wiggle the alternator free from its bracket; it may be snug in the mounting ears.
• If needed, gently pry at the mounting ears with a flathead screwdriver, but do not damage the aluminum housing.
• Lift the alternator out from the top; if clearance is tight, slightly move hoses or wiring looms aside, noting their original positions.
• Compare the old alternator to the new one: same plugs and mounting points.

Step 8: Prepare the new alternator

• Lightly coat the new alternator mounting ears (where the bolts pass through) with a tiny amount of anti-seize compound.
• Apply a small dab of dielectric grease inside the electrical connector on the alternator to protect against corrosion.

Step 9: Install the new alternator

• Lower the new alternator into position on its bracket.
• Align the bolt holes by hand and start all mounting bolts by hand to avoid cross-threading.
• Once all bolts are started and the alternator sits flush, tighten them snugly with a 15mm socket and 3/8" ratchet.
• Then use a torque wrench with 15mm socket to tighten the main mounting bolts to 48 Nm (35 ft-lbs).

Step 10: Reconnect alternator wiring

• Push the small electrical connector onto the alternator until it clicks into place.
• Place the heavy-gauge power cable onto the alternator stud.
• Install the nut using a 13mm socket and tighten to 12 Nm (9 ft-lbs) with a torque wrench.
• Snap the plastic protective cap back over the stud and nut.

Step 11: Reinstall or replace the serpentine belt

• Route the belt according to the factory belt routing diagram or the photo you took earlier.
• Leave the alternator pulley for last; it is easiest to slip on there.
• Use the serpentine belt tool or 1/2" ratchet to rotate the tensioner and create slack.
• With the tensioner held, slide the belt onto the alternator pulley.
• Release the tensioner slowly and ensure the belt sits in the grooves of every pulley.
• Spin a couple of pulleys by hand to verify correct belt tracking.

Step 12: Reinstall intake duct and engine cover

• If you removed an intake duct, slide it back into place and tighten the clamps with a flathead screwdriver.
• Press the engine cover back down onto its mounting posts until it snaps fully into place.

Step 13: Reconnect the battery

• Place the negative (-) battery cable back on the battery post.
• Use a 10mm socket and 3/8" ratchet to tighten the terminal clamp until it is snug and does not move.
• Do not overtighten; just firm enough so the terminal cannot rotate by hand.

---

✅ After Repair

• Start the engine and watch for the battery/charging warning light; it should go off after starting.
• Use the vehicle’s information display to confirm system voltage (if your trim shows it) or have a shop or parts store measure voltage; it should be around 13.5–14.5 volts with the engine running.
• Turn on headlights, AC, and rear defogger; the engine should idle smoothly with no flickering lights.
• Listen for any belt squeal or abnormal noises near the alternator; if you hear noise, shut off the engine and re-check belt routing and bolt tightness.
• After a short test drive, recheck the belt visually and make sure all tools are removed from the engine bay.

---

💰 DIY vs Shop Cost

Shop Cost: $650–$900 (parts + labor)

DIY Cost: $250–$450 (parts only)

You Save: $200–$650 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
