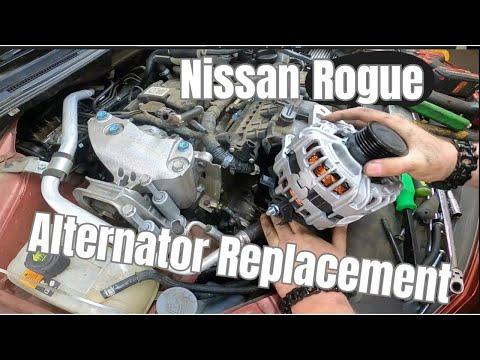

🔧 Rogue - Alternator Replacement

You’ll remove the old alternator, swap it with a new one, and reinstall the drive belt so your battery charges correctly again. On your Rogue, the alternator sits on the front of the engine and is reached mostly from the top after moving the air intake parts out of the way.

Difficulty Level: Intermediate (OK for a careful beginner) | Estimated Time: 3–4 hours

---

⚠️ Safety & Precautions

• 🔋 Always disconnect the negative battery cable before working. This prevents sparks and protects electronics.
• 🧠 You’ll be working near the serpentine belt. Keep fingers, hair, and clothes clear from pulleys and moving parts.
• 🔥 Let the engine cool completely. The exhaust and engine parts can stay hot for a long time.
• 🛠️ Use jack stands if you lift the vehicle. Never rely on just a floor jack.
• ⚡ Do not let tools bridge between the alternator’s main power stud and metal parts of the engine/body.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 10mm socket
• 🧰 12mm socket
• 🧰 14mm socket
• 🧰 3/8" drive ratchet
• 🧰 3/8" drive torque wrench (10–80 ft-lbs range)
• 🧰 3/8" drive extension (3"–6")
• 🧰 Serpentine belt tool or 3/8" breaker bar
• 🧰 Flathead screwdriver (medium)
• 🧰 Trim clip removal tool
• 🧰 Needle-nose pliers
• 🧰 Floor jack (rated 3-ton minimum)
• 🧰 Jack stands (rated 3-ton minimum)
• 🧰 Wheel chocks
• 🧰 Work light
• 🧰 Mechanic’s gloves
• 🧰 Safety glasses
• 🧰 Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Alternator (new or remanufactured, for 2.5L) - Qty: 1
• 🔩 Serpentine drive belt - Qty: 1
• 🔩 Alternator mounting bolts (hardware kit, if original are corroded) - Qty: 1 set
• 🔩 Battery terminal cleaner or battery terminal brush - Qty: 1
• 🔩 Dielectric grease - Qty: 1 small tube
• 🔩 Anti-seize compound - Qty: 1 small tube
• 🔩 Replacement plastic push clips for engine covers/splash shields - Qty: As needed

---

📋 Before You Begin

• 🅿️ Park the Rogue on level ground, shift to Park, and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels.
• 🔋 Turn ignition off and remove the key. Wait at least 2–3 minutes before disconnecting the battery so modules go to “sleep.”
• 🔌 Open the hood and locate the battery on the left side of the engine bay.
• 📸 Take a clear photo of the serpentine belt routing before touching it. This saves you later.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket and 3/8" drive ratchet to loosen the nut on the negative (black, “-”) battery terminal.
• Twist and lift the cable off the battery post and tuck it aside so it cannot spring back.
• Always remove negative terminal first.

Step 2: Remove the engine cover and intake duct

• Gently pull up on the plastic engine cover to release its rubber grommets and set it aside.
• Use a flathead screwdriver to loosen the clamps on the air intake duct between the air box and throttle body.
• Unclip any small hoses or electrical connectors from the duct by hand or with needle-nose pliers if tight.
• Lift the duct out to create more room on top of the engine.

Step 3: Remove the air filter box (if needed for access)

• Open the air box and remove the air filter to see the screws or clips.
• Use a 10mm socket and ratchet to remove any bolts holding the lower air box to the body.
• Lift the air box straight up to release the locating pegs, then remove it from the engine bay.
• More room makes the alternator job easier.

Step 4: (Optional but helpful) Raise the front right side

• Use a floor jack at the front jacking point and lift the right-front corner slightly.
• Place a jack stand under the proper support point and lower the vehicle onto it.
• Remove the right-front wheel with a lug wrench if you want more side access to the belt area.
• If there is a plastic splash shield blocking lower access, use a trim clip removal tool and 10mm socket to remove clips/bolts and swing it aside.

Step 5: Release tension from the serpentine belt

• The tensioner is a spring-loaded pulley that keeps the belt tight.
• Install a serpentine belt tool or 3/8" breaker bar into the square hole or bolt head on the tensioner (usually near the middle of the belt path).
• Rotate the tensioner (usually clockwise on this engine) to relieve tension on the belt.
• While holding tension off, slip the belt off the alternator pulley with your free hand.
• Slowly release the tensioner back to its resting position.
• Note belt routing before removal.

Step 6: Remove the serpentine belt (if replacing)

• After it’s off the alternator pulley, slip the belt off the remaining pulleys and remove it from the engine bay.
• Compare old and new belts side-by-side to confirm length and rib count match.

Step 7: Disconnect alternator wiring

• Locate the alternator on the front of the engine (toward the radiator).
• On the back of the alternator, unplug the small electrical connector by pressing its tab and pulling straight out by hand.
• Use a 12mm socket and ratchet to remove the nut holding the main power cable (B+ cable) to the alternator stud.
• Lift the cable eyelet off the stud and tuck it aside.

Step 8: Remove the alternator mounting bolts

• Locate the upper and lower alternator mounting bolts that hold it to the engine bracket.
• Use a 14mm socket and ratchet with extension if needed to loosen and remove the upper bolt.
• Remove the lower bolt the same way with the 14mm socket.
• Support the alternator with one hand as you remove the last bolt so it doesn’t drop.

Step 9: Remove the alternator from the engine bay

• Wiggle the alternator free from its bracket by hand; it may be snug in the locating sleeves.
• If stuck, gently pry at the mounting ears using a flathead screwdriver, but do not pry on fragile plastic parts.
• Lift the alternator up and out through the space created by removing the air intake parts.

Step 10: Prepare the new alternator

• Compare the new alternator to the old one: check mounting points, pulley size, electrical connector shape, and power stud location.
• Lightly coat the mounting bolt shanks with anti-seize compound to make future removal easier.

Step 11: Install the new alternator

• Lower the new alternator into position by hand and slide it into the bracket so bolt holes line up.
• Install the upper and lower mounting bolts by hand to avoid cross-threading.
• Use a 14mm socket and ratchet to snug both bolts evenly.
• Then use a torque wrench with 14mm socket to tighten mounting bolts to 40–50 Nm (30–37 ft-lbs).

Step 12: Reconnect alternator wiring

• Place the main power cable eyelet on the alternator power stud.
• Install the nut with a 12mm socket by hand first, then snug with a ratchet.
• Torque the power stud nut to 8–10 Nm (6–7 ft-lbs) using a torque wrench and 12mm socket. Do not overtighten.
• Plug in the small electrical connector until it clicks.
• Apply a tiny amount of dielectric grease to the connector seal if available.

Step 13: Reinstall or route the serpentine belt

• Route the new or existing belt around all pulleys following your photo or the belt routing diagram (often on a sticker under the hood).
• Leave the alternator pulley for last so the belt can slip over more easily.
• Use the serpentine belt tool or 3/8" breaker bar to rotate the tensioner again to release tension.
• Slide the belt fully onto the alternator pulley, then gently release the tensioner.
• Check from top and bottom that the belt ribs are seated correctly in each pulley groove.

Step 14: Reinstall air box, intake duct, and covers

• Place the lower air box back into position and press its pegs into their holes.
• Install and tighten air box bolts with a 10mm socket.
• Install the air filter and close the air box.
• Reinstall the intake duct and tighten its clamps using a flathead screwdriver.
• Reconnect any hoses or clips that were removed.
• Push the engine cover back onto its mounting pegs by hand.
• If you removed the wheel/splash shield, reinstall the shield with a 10mm socket and trim clip tool, mount the wheel, tighten lug nuts, then lower the vehicle using the floor jack and remove the jack stand.

Step 15: Reconnect the battery

• Place the negative battery cable back on the negative battery post.
• Use a 10mm socket and ratchet to tighten the terminal nut to about 5–7 Nm (4–5 ft-lbs). Just snug; do not crush it.
• Terminal should not twist by hand when tight.

---

✅ After Repair

• 🔑 Start the engine and let it idle. Check that the battery warning light on the dash turns off.
• 🔌 If you have a multimeter, measure voltage at the battery with the engine idling: it should read about 13.8–14.7V.
• 👂 Listen for any belt squeal or strange noises around the alternator and belt area. If you hear chirping, shut off the engine and recheck belt routing and seating.
• 🚗 Turn on headlights, rear defogger, and blower fan. Voltage should still stay above about 13.5V.
• 🧽 Re-enter radio presets and any customized settings, as some may reset after the battery is disconnected.

---

💰 DIY vs Shop Cost

Shop Cost: $650–$900 (parts + labor)

DIY Cost: $250–$450 (parts only)

You Save: $400–$450 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 2–3 hours.

---
