🔧 Corolla - Alternator Replacement

You’ll be removing the serpentine belt, unbolting the alternator, swapping it with a new one, and reinstalling the belt with correct tension. This restores proper charging so your battery and electronics stay healthy.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always disconnect the negative battery cable before working to avoid shocks and short circuits.
• ⚠️ Let the engine cool fully; you’ll be working near hot metal and the exhaust manifold.
• ⚠️ Support the car with jack stands if you lift it; never rely on the jack alone.
• ⚠️ Keep metal tools away from the battery positive terminal while it’s connected.
• ⚠️ Avoid twisting or pulling hard on wiring harnesses; damaged wires can cause charging faults.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ 10mm socket
• 🛠️ 12mm socket
• 🛠️ 14mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive torque wrench (5–80 ft-lbs range)
• 🛠️ 6" socket extension
• 🛠️ Serpentine belt tool or long 14mm box wrench (specialty)
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Needle-nose pliers
• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Wheel chocks
• 🛠️ Work light or flashlight
• 🛠️ Mechanic’s gloves
• 🛠️ Safety glasses
• 🛠️ Shop towels or rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Alternator assembly (2.0L engine, with clutch pulley) - Qty: 1
• 🔩 Serpentine drive belt - Qty: 1 (recommended while you’re here)
• 🔩 Alternator mounting bolt set (if corroded or damaged) - Qty: 1 set
• 🔩 Battery terminal cleaning brush - Qty: 1
• 🔩 Dielectric grease (for electrical connectors) - Qty: 1 small tube
• 🔩 Anti-seize compound - Qty: 1 small tube
• 🔩 Cable ties - Qty: 4–6

---

📋 Before You Begin

• Park the Corolla on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and prop it securely.
• Turn off all accessories (headlights, blower fan, audio system).
• Disconnect the negative battery terminal using a 10mm socket, and tuck the cable aside so it cannot spring back.
• Take a clear photo of the belt routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the front of the car (if needed)

• Use the floor jack to lift the front of the Corolla at the front center jacking point behind the front bumper.
• Place jack stands under the front side pinch welds and gently lower the car onto them.
• Leave the floor jack slightly touching as a backup, but main support is the stands.
• Make sure the car does not rock when pushed gently.

Step 2: Remove the right front wheel and splash shield (for better access)

• Loosen the right front wheel lug nuts slightly with the vehicle on the ground (if not already loosened), then fully raise and support as above.
• Remove the lug nuts with a 21mm socket and ratchet, then remove the wheel. Torque on install: 140 Nm (103 ft-lbs)
• Inside the right front wheel well, remove the plastic clips and screws holding the splash shield using a 10mm socket and flathead screwdriver.
• Pull the splash shield back to expose the side of the engine where the belt and alternator sit.

Step 3: Confirm belt routing and inspect the belt

• From the wheel well and from above, look at the serpentine belt routing around the pulleys.
• Take clear photos from a couple of angles.
• If the belt shows cracks, fraying, or glazing (shiny spots), plan to replace it now.

Step 4: Relieve tension on the serpentine belt

• Locate the belt tensioner pulley on the front of the engine. The tensioner is a spring-loaded arm that keeps the belt tight.
• Place your serpentine belt tool or long 14mm box wrench on the tensioner bolt head.
• Rotate the tensioner slowly in the direction that loosens the belt (usually clockwise when viewed from the wheel well) to relieve tension.
• While holding the tensioner, slide the belt off one easily reached pulley (usually the alternator) using your free hand.
• Slowly let the tensioner return to its rest position.
• Keep fingers out of pinch points near the pulleys.

Step 5: Remove the serpentine belt from the alternator

• Pull the belt clear from the alternator pulley and other pulleys, noting its path.
• If reusing the belt, set it aside in the same orientation (you can mark an arrow for rotation with a marker).

Step 6: Disconnect alternator electrical connections

• From above the engine bay, locate the alternator on the front of the engine.
• Press the tab and unplug the small alternator connector (this is the control plug). If stiff, gently pry the tab with a flathead screwdriver.
• Remove the rubber boot covering the main charging cable stud on the alternator.
• Use a 12mm socket and ratchet to remove the nut holding the main cable to the alternator output stud. Torque on install: 10 Nm (7 ft-lbs)
• Pull the cable off the stud and move it aside. Do not twist the cable hard.

Step 7: Remove alternator mounting bolts

• Locate the upper and lower alternator mounting bolts.
• Use a 14mm socket, extension, and ratchet to loosen and remove the upper mounting bolt.
• From the wheel well or from above (whichever gives better access), remove the lower mounting bolt with the same 14mm socket and ratchet.
• Support the alternator with one hand as you remove the last bolt so it does not drop.
• Torque on install for alternator mounting bolts: 39 Nm (29 ft-lbs)

Step 8: Remove the alternator from the engine bay

• Work the alternator free from its bracket; you may need to gently pry it away using a flathead screwdriver at the mounting ears.
• Carefully maneuver the alternator up and out from the top, or through the wheel well opening, depending on space. Be patient; small movements help.
• Do not force it against AC or coolant lines.

Step 9: Prepare and install the new alternator

• Compare the old and new alternators: same connector location, pulley type, and mounting ears.
• Lightly coat the mounting bolt threads with anti-seize compound to ease future removal.

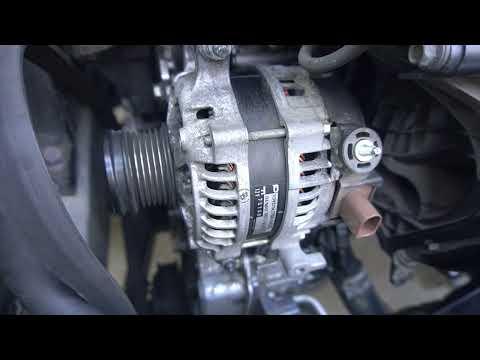

• Position the new alternator into place in the bracket.
• Hand-thread the upper and lower mounting bolts using your fingers to avoid cross-threading.
• Tighten both bolts snug with a 14mm socket and ratchet, then torque both to 39 Nm (29 ft-lbs) using your torque wrench.

Step 10: Reattach alternator wiring

• Place the main charging cable back over the alternator output stud.
• Install the nut using a 12mm socket and tighten to 10 Nm (7 ft-lbs) with the torque wrench. Do not overtighten; you can damage the stud.
• Apply a tiny amount of dielectric grease inside the small connector if available.
• Plug the small connector back into the alternator until it clicks.
• Pull the rubber boot back over the main output stud and nut to cover it fully.

Step 11: Install the serpentine belt

• Route the belt around the crankshaft pulley and other accessories following your photo, leaving the alternator pulley or an easy-reach pulley for last.
• Double-check that the belt sits fully in the grooves on every grooved pulley, and not riding on the edge.
• Place your serpentine belt tool or 14mm box wrench on the tensioner and rotate it again to relieve tension.
• While holding the tensioner, slip the belt over the final pulley.
• Slowly release the tensioner so it tightens the belt.
• Inspect from above and from the wheel well that the belt is straight and centered on every pulley.

Step 12: Reinstall splash shield and wheel

• Reposition the wheel well splash shield and reinstall all screws and clips using the 10mm socket and flathead screwdriver.
• Mount the wheel on the hub and hand-thread the lug nuts.
• Lower the car off the jack stands using the floor jack.
• With the car on the ground, torque the lug nuts in a star pattern to 140 Nm (103 ft-lbs) using a torque wrench and appropriate socket.

Step 13: Reconnect the battery

• Clean the battery terminals with the battery terminal brush if they are corroded.
• Reattach the negative battery cable using a 10mm socket. Tighten snugly (about 5 Nm / 44 in-lbs), not crushing the clamp.
• Make sure the cable does not twist or move once tightened.

---

✅ After Repair

• Start the engine and let it idle. The battery light on the dash should turn off after starting.
• Using the infotainment or a multimeter if you have one, check charging voltage at the battery: it should be about 13.5–14.5 volts with the engine running.
• Turn on headlights, rear defogger, and blower fan to medium; ensure there are no squealing belt noises.
• Take a short test drive, then re-check under the hood for any loose connectors or odd smells (like a slipping belt).

---

💰 DIY vs Shop Cost

Shop Cost: $650–$900 (parts + labor)

DIY Cost: $250–$400 (parts only)

You Save: $250–$650 by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
