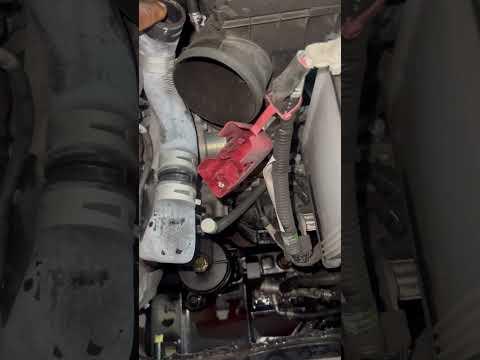

🔧 Highlander - Alternator Replacement

Replacing the alternator on your Highlander involves removing the serpentine belt, unplugging the alternator wiring, and unbolting the alternator from its bracket. The key is doing it safely (battery power off) and tightening the mounting bolts back to the correct Toyota torque specs so the alternator stays aligned and the belt tracks correctly.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent an electrical short.
• ⚠️ Keep hands/tools away from the belt path; fingers can get pinched.
• ⚠️ Support the vehicle with jack stands if you go through the wheel well; never rely on a jack alone.
• ⚠️ If the engine was recently running, let it cool to avoid burns.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 3/8" drive torque wrench
• 6" extension
• Serpentine belt tool (specialty)
• Trim clip removal tool
• Flathead screwdriver
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator electrical terminal nut - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and take a clear photo of the belt routing (or use the belt routing diagram sticker if equipped).
• Disconnect the battery negative terminal using a 10mm socket. Tuck the cable aside so it can’t spring back.
• Tip: Bag and label bolts as you remove them.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm access path (top vs wheel-well)

• On your Highlander, alternator access is usually from the top, but some fasteners/space are easier from the right-front wheel well.
• If you need wheel-well access: loosen lug nuts slightly with a 21mm socket, raise with a floor jack, and support with jack stands.

Step 2: Remove covers/ducting blocking the alternator

• Remove the engine cover (if equipped) by pulling up firmly by hand.
• Remove any intake snorkel/upper duct pieces that block access using a 10mm socket and a flathead screwdriver (for hose clamps, if present).

Step 3: Release serpentine belt tension

• Place a serpentine belt tool (specialty) or breaker bar on the belt tensioner.
• Rotate the tensioner to relieve tension, then slide the belt off the alternator pulley.
• Tip: Don’t fully remove the belt yet.

Step 4: Disconnect alternator electrical connectors

• Unplug the alternator regulator connector by pressing the tab and pulling straight out.
• Remove the rubber boot over the main power stud.
• Remove the main power cable nut using a 12mm socket, then lift the cable off and position it away from the stud.

Step 5: Remove alternator mounting bolts

• Support the alternator with one hand.
• Remove the alternator mounting bolts using a 14mm socket, ratchet, and extension.
• Work the alternator out of the bracket and lift it out of the engine bay.

Step 6: Install the new alternator

• Set the new alternator into position and hand-start all mounting bolts to avoid cross-threading.
• Tighten mounting bolts with a ratchet, then final-tighten with a torque wrench to the correct Toyota specs.

Step 7: Reconnect wiring

• Install the main power cable on the alternator stud and tighten with a 12mm socket and torque wrench to the correct Toyota spec.
• Reinstall the rubber boot over the stud.
• Plug in the regulator connector until it clicks.

Step 8: Reinstall the belt

• Route the belt using your photo/diagram.
• Rotate the tensioner with the serpentine belt tool (specialty) and slip the belt over the alternator pulley last.
• Double-check every pulley groove is seated correctly with a work light.

Step 9: Reassemble and reconnect the battery

• Reinstall any ducting/covers using a 10mm socket.
• Reconnect the negative battery terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and verify the belt runs smoothly with no squeal or wobble.
• Check for a battery/charging warning light on the dash.
• If you have a multimeter: check charging voltage at the battery with engine running (typically around 13.5–14.8V on a healthy system).
• Recheck for loose tools/wiring and confirm the rubber boot covers the power stud.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $400-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
