🔧 Ascent - Alternator Replacement

The alternator keeps your battery charged and powers the electrical system while the engine runs. Replacing it involves disconnecting the battery, removing the drive belt from the alternator pulley, unbolting the alternator, then reinstalling everything and verifying charging voltage.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent short circuits.
• ⚠️ Never let a tool bridge the alternator’s main power stud to ground (it can arc badly).
• ⚠️ Work on a cool engine; the turbo/heat shields can burn you.
• ⚠️ Keep fingers/tools clear of the belt path when releasing the tensioner.
• ⚠️ Battery disconnect is required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench (10–100 Nm range)
• 3/8" extension (6")
• Serpentine belt tool (specialty)
• Flat trim removal tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1 Recommended if belt is worn
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully.
• Have your radio presets noted (battery disconnect may reset memory).
• Disconnect the battery: use a 10mm socket to remove the negative (-) terminal first, then move it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and open up access

• Remove the plastic engine cover by pulling it upward evenly (it’s held by grommets). Use a flat trim removal tool if it feels stuck.
• Remove any intake snorkel/ducting that blocks alternator access (commonly held by clips/bolts). Use a flat trim removal tool for clips and a 10mm socket for bolts.

Step 2: Relieve belt tension and remove the belt from the alternator

• Locate the automatic belt tensioner.
• Use a serpentine belt tool (specialty) to rotate the tensioner and relieve tension. A serpentine belt tool is a long-handled wrench designed to move the tensioner in tight spaces.
• While holding tension off, slip the belt off the alternator pulley. Use a flashlight to confirm the belt is fully clear.
• Tip: Take a quick photo of belt routing.

Step 3: Disconnect alternator wiring

• Unplug the alternator electrical connector by pressing the lock tab, then pulling straight off.
• Remove the protective rubber boot on the alternator B+ (main power) stud.
• Use a 12mm socket to remove the nut for the main power cable from the alternator stud.
• Move the cable aside so it cannot touch metal.

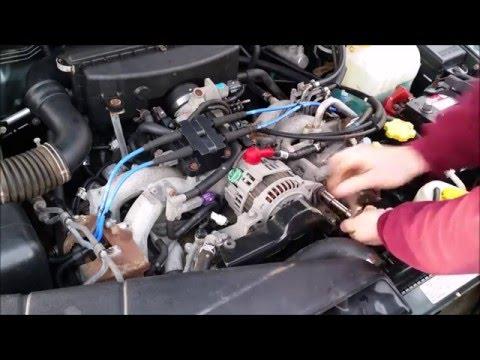

Step 4: Unbolt and remove the alternator

• Remove the alternator mounting bolts using a 14mm socket, 3/8" ratchet, and 3/8" extension (6") as needed.
• Support the alternator with one hand as the last bolt comes out.
• Lift the alternator out carefully without snagging wiring or hoses.

Step 5: Install the new alternator

• Set the new alternator into position and start the mounting bolts by hand to avoid cross-threading.
• Tighten alternator mounting bolts using a 14mm socket, then final-tighten using a 3/8" torque wrench: Torque to 45 Nm (33 ft-lbs).

Step 6: Reconnect wiring to the alternator

• Install the main power cable onto the B+ stud and thread the nut by hand first.
• Use a 12mm socket and 3/8" torque wrench to tighten the nut: Torque to 10 Nm (89 in-lbs).
• Reinstall the rubber protective boot.
• Apply a small amount of dielectric grease to the connector seal, then plug in the alternator connector until it clicks.

Step 7: Reinstall the belt

• Route the belt correctly on all pulleys except the alternator (use your photo for reference).
• Use the serpentine belt tool (specialty) to rotate the tensioner again, then slip the belt onto the alternator pulley.
• Slowly release the tensioner and confirm the belt is seated in every pulley groove (use a flashlight).

Step 8: Reassemble and reconnect the battery

• Reinstall intake ducting/snorkel using a 10mm socket and any clips using a flat trim removal tool.
• Reinstall the engine cover by pressing it down evenly into the grommets.
• Reconnect the battery terminals: positive (+) first if it was removed, then negative (-). Use a 10mm socket to tighten the negative terminal clamp snugly.

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light is OFF.
• With the engine idling, check charging voltage at the battery with a meter if available: you should typically see about 13.5–14.8V.
• Listen for belt squeal and watch the belt for smooth tracking.
• Take a short test drive, then recheck for any loose connectors and confirm no warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: ₹25,000-₹55,000 (parts + labor)

DIY Cost: ₹15,000-₹40,000 (parts only)

You Save: ₹10,000-₹20,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,500-₹3,500/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
