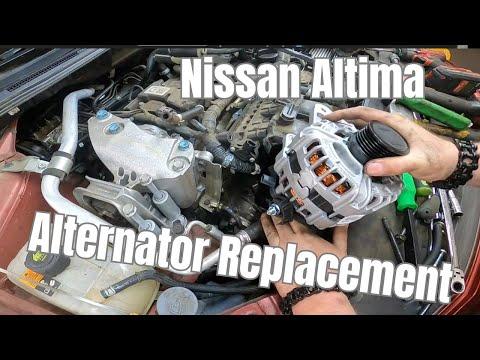

🔧 Altima - Alternator Replacement

You’ll be removing the alternator, which charges the battery, and installing a new one. On your Altima the alternator sits at the front of the engine and is driven by the serpentine belt.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always disconnect the negative battery cable before working on the alternator to avoid sparks or short circuits.
• ⚠️ Support the car with jack stands under the proper lift points; never rely only on a floor jack.
• ⚠️ Let the engine cool fully; you’ll work near hot metal and rubber parts.
• ⚠️ Keep fingers, clothing, and tools clear of the belt area when rotating the belt tensioner.
• ⚠️ Do not let the alternator power cable touch ground (body or engine) once disconnected.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extension (6")
• Breaker bar (1/2" drive)
• Serpentine belt tool (long handle) (specialty)
• Torque wrench (10–80 ft-lbs range)
• Flathead screwdriver (medium)
• Trim clip removal tool
• Needle-nose pliers
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Work gloves
• Safety glasses
• Fender cover
• Shop light or flashlight
• Small wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator (new or remanufactured) - Qty: 1
• Serpentine drive belt - Qty: 1
• Battery terminal cleaning brush - Qty: 1
• Dielectric grease - Qty: 1
• Anti-seize compound - Qty: 1
• Penetrating oil spray - Qty: 1
• Replacement plastic clips for splash shield - Qty: 6–10

---

📋 Before You Begin

• Park the Altima on level ground, shift to Park, and set the parking brake.
• Turn off all electrical loads (lights, AC, radio) and remove the key from the vehicle.
• Open the hood and install a fender cover to protect the paint.
• Disconnect the negative battery terminal using a 10mm socket and move the cable aside so it cannot spring back.
• Loosen the front right wheel lug nuts slightly with the car on the ground if you plan to remove the wheel for better access.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Safely raise and support the front right side

• Place wheel chocks behind the rear wheels.
• Use a floor jack under the front right jacking point and raise the car high enough to work in the wheel well.
• Place jack stands under the proper support point and lower the car onto the stands.
• If desired for more space, remove the front right wheel using the appropriate lug wrench or socket.
• Always test the car is stable before crawling under.

Step 2: Remove the right front inner splash shield

• The splash shield is the plastic cover inside the wheel well and under the front right of the engine.
• Use a trim clip removal tool or flathead screwdriver to pop out the plastic clips.
• Remove any 10mm bolts using a 10mm socket and ratchet.
• Lower the shield and set it aside; keep track of clips and bolts.
• Broken clips are common; that’s why we listed spares.

Step 3: Relieve tension and remove the serpentine belt

• A serpentine belt is the long rubber belt that drives accessories like the alternator, AC, and power steering.
• From the wheel well and/or top, locate the belt tensioner pulley (spring-loaded pulley that keeps the belt tight).
• Use a serpentine belt tool or a long breaker bar with the correct socket (usually 14mm socket) on the tensioner center bolt.
• Rotate the tensioner to relieve belt tension (usually clockwise) while slipping the belt off the alternator pulley with your free hand.
• Carefully release the tensioner back to its rest position.
• Note the belt routing or take a clear photo before removing the belt fully.
• Remove the belt from the alternator and other pulleys; you can pull it out from the wheel well.
• If reusing belt, mark direction with a marker.

Step 4: Disconnect electrical connectors from the alternator

• From the top, locate the alternator at the front of the engine.
• There will be a main power cable held by a nut and a smaller plug connector.
• Use a 12mm socket and ratchet to remove the nut holding the main power cable to the alternator stud.
• Pull the cable off and cover the metal eyelet with tape or a rag so it cannot contact ground.
• Press the tab on the smaller plug and pull it straight out; if stuck, use needle-nose pliers gently on the plastic housing.

Step 5: Remove alternator mounting bolts

• The alternator is usually held by two main bolts (upper and lower) going through a bracket.
• Spray a small amount of penetrating oil on the bolts and let sit for a few minutes if they look corroded.
• Use a 14mm socket, extension, and ratchet to remove the upper mounting bolt.
• Remove the lower mounting bolt using the same 14mm socket and ratchet; access may be easier from the wheel well.
• Support the alternator with one hand as you remove the last bolt so it doesn’t drop.

Step 6: Remove the alternator from the engine bay

• The alternator may be snug in its bracket due to alignment sleeves.
• Gently rock the alternator by hand to loosen it; do not pry heavily on aluminum parts.
• If needed, use a flathead screwdriver carefully as a lever against a solid metal part, not thin brackets.
• Once loose, rotate and angle the alternator out through the top or through the wheel well opening (whichever gives more room on your car).
• Be patient; small movements often free it.

Step 7: Prepare the new alternator

• Compare the old and new alternators side by side.
• Confirm same mounting ears, pulley diameter, electrical connectors, and clocking (orientation).
• Use a small wire brush to clean the contact area of the main power cable eyelet.
• Apply a very thin film of dielectric grease to the small connector seal (not on metal contacts).
• Optionally apply a tiny amount of anti-seize compound to the shanks of the mounting bolts, not the threads.

Step 8: Install the new alternator

• Carefully position the new alternator into the bracket along the same path the old one came out.
• Align the mounting ears with the bracket holes.
• Install the lower mounting bolt by hand first to avoid cross-threading.
• Install the upper mounting bolt by hand.
• Snug both bolts using a 14mm socket and ratchet, but do not fully torque yet.
• Now tighten both bolts evenly.
• Using a torque wrench and 14mm socket, tighten the alternator mounting bolts to approximately 50 Nm (37 ft-lbs) or to the manufacturer’s spec if you have it.

Step 9: Reconnect alternator wiring

• Push the small electrical plug into the new alternator until it clicks.
• Install the main power cable onto the alternator stud.
• Thread the nut on by hand to avoid cross-threading.
• Use a 12mm socket and torque wrench to tighten the nut to about 10–12 Nm (8–9 ft-lbs); do not overtighten or you can damage the stud.
• Make sure the cable is routed so it will not rub on the belt or pulleys.

Step 10: Install the new serpentine belt

• Route the new belt around the pulleys according to your photo or the diagram under the hood (if present).
• Leave the alternator or an easy-to-reach pulley for last so you can slip the belt on there.
• Use the serpentine belt tool or breaker bar with the correct socket on the tensioner again and rotate to relieve tension.
• With the tensioner held, slide the belt over the last pulley.
• Slowly release the tensioner so it applies tension to the belt.
• Check every pulley to ensure the belt ribs sit properly in the grooves and are fully seated.
• Mis-routed belts can cause noise and damage quickly.

Step 11: Reinstall splash shield and wheel

• Reposition the splash shield in the wheel well and under the engine.
• Install any 10mm bolts with a 10mm socket and ratchet and snug them down.
• Reinstall the plastic clips by pushing them firmly into place; replace any broken ones.
• If you removed the wheel, reinstall it now and hand-tighten the lug nuts in a star pattern.
• Raise the car slightly with the floor jack, remove the jack stands, and lower the car to the ground.
• Torque the wheel lug nuts using a torque wrench and appropriate socket to the correct wheel torque spec for your Altima (typically around 110 Nm / 80 ft-lbs, verify for your exact spec).

Step 12: Reconnect the battery and final checks

• Clean the battery terminals with a battery terminal cleaning brush if they are dirty or corroded.
• Reconnect the negative battery cable and tighten the clamp with a 10mm socket until snug; do not overtighten.
• Make sure no tools or rags are left in the engine bay.
• Close the hood securely.

---

✅ After Repair

• Start the engine and watch the instrument cluster for the battery/charging light; it should turn off after starting.
• Listen for any unusual noises from the belt or alternator area (squealing, grinding, or rattling).
• With a multimeter (if available), check battery voltage at the terminals with the engine running; it should be around 13.8–14.5 volts.
• Turn on headlights, rear defogger, and blower fan; voltage should stay above about 13.5 volts if the alternator is working properly.
• You may need to reset clock, radio presets, and auto-up/down window functions after battery disconnect.

---

💰 DIY vs Shop Cost

Shop Cost: $550–$850 (parts + labor)

DIY Cost: $250–$450 (parts only)

You Save: $300–$400 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
