🔧 Escape - Alternator Replacement

You’ll be removing the drive belt, unbolting the alternator, moving it out of the tight engine bay, then installing a new one and re-tensioning the belt. On your Escape, the alternator sits tight near the front of the engine, so you’ll work from the top and from the passenger-side wheel well.

Difficulty Level: Intermediate | Estimated Time: 3-4 hours

---

⚠️ Safety & Precautions

• 🔋 Always disconnect the negative battery cable before working on the alternator to avoid sparks and short circuits.
• 🧯 Let the engine cool completely; you’ll be working near hot components and the radiator.
• 🛞 Use a proper floor jack and jack stands; never rely on the jack alone when the wheel is off.
• ⚡ Avoid letting the battery cables touch each other or metal parts once disconnected.
• 👓 Wear safety glasses; dirt and rust can fall from under the car and wheel well.
• 🧤 Wear gloves to protect your hands from sharp edges and hot parts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 3/8" drive ratchet
• 🧰 1/2" drive ratchet
• 🧰 3/8" drive socket set (8mm-19mm)
• 🧰 1/2" drive socket set (13mm-21mm)
• 🧰 10mm socket
• 🧰 13mm socket
• 🧰 15mm socket
• 🧰 18mm socket
• 🧰 E-torx socket set (E6-E14) (specialty)
• 🧰 Serpentine belt tool or long 3/8" drive breaker bar (specialty)
• 🧰 Torx T25 screwdriver
• 🧰 Flathead screwdriver (medium)
• 🧰 Needle-nose pliers
• 🧰 Trim clip removal tool (specialty)
• 🧰 Floor jack (rated 3-ton minimum)
• 🧰 Jack stands (rated 3-ton minimum)
• 🧰 Lug wrench or 19mm socket with breaker bar
• 🧰 Torque wrench 3/8" drive (5-80 ft-lbs range)
• 🧰 Torque wrench 1/2" drive (30-150 ft-lbs range)
• 🧰 Work light or LED lamp
• 🧰 Mechanic’s gloves
• 🧰 Safety glasses
• 🧰 Fender cover or old towel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Alternator (2.0L EcoBoost, correct for SE trim) - Qty: 1
• 🔩 Serpentine drive belt - Qty: 1
• 🔩 Alternator mounting bolts (one-time-use if specified) - Qty: 2-3
• 🔩 Alternator B+ terminal nut - Qty: 1
• 🔩 Battery terminal cleaning brush - Qty: 1
• 🔩 Dielectric grease (for electrical connectors) - Qty: 1 small tube
• 🔩 Anti-seize compound - Qty: 1 small tube
• 🔩 Zip ties (for harness routing if needed) - Qty: 4-6

---

📋 Before You Begin

• 🅿️ Park the Escape on level ground, set the parking brake, place the transmission in P, and turn off the engine.
• 🔌 Open the hood and remove the key from the vehicle so no one can start it while you work.
• 🧊 Let the engine cool for at least 30–45 minutes if it was recently running.
• 🔋 Plan to disconnect the battery; you’ll lose radio presets and trip data, but nothing critical.
• 🛞 Loosen the passenger-front wheel lug nuts slightly before lifting the vehicle; final removal will be in the air.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Open the hood and locate the battery on the driver side.
• Use a 10mm socket and 3/8" ratchet to loosen the negative (black) battery terminal clamp.
• Lift the negative cable off the post and tuck it aside so it cannot spring back.
• Cover the terminal with a rag to avoid accidental contact.

Step 2: Raise the front and remove the right front wheel

• Use a floor jack at the front jacking point or subframe and lift the front of the Escape.
• Place jack stands securely under the pinch welds or frame points on both sides.
• Use a 19mm socket and breaker bar or lug wrench to remove the passenger-front wheel nuts and wheel.
• Always shake the car slightly to confirm it’s stable on stands.

Step 3: Remove the right front wheel well splash shield

• Turn the steering slightly left for better access if needed.
• Use a Torx T25 screwdriver to remove Torx screws holding the inner fender liner/splash shield.
• Use a trim clip removal tool or flathead screwdriver to pop out any plastic push clips.
• Pull the splash shield away to expose the belt and alternator from the side.

Step 4: Remove the upper engine cover and intake duct (if equipped)

• Gently pull up on the plastic engine cover; it usually pops off rubber grommets.
• Loosen any hose clamps on the intake duct using a flathead screwdriver or 8mm socket.
• Disconnect any small air or sensor hoses using needle-nose pliers if needed.
• Remove the duct to give more space around the alternator.

Step 5: Relieve tension on the serpentine belt

• From the wheel well opening, locate the belt tensioner (spring-loaded pulley pushing on the belt).
• Install your serpentine belt tool or long 3/8" breaker bar into the square opening or bolt head on the tensioner arm.
• Rotate the tensioner in the direction that loosens the belt (usually clockwise) while holding firmly.
• While holding tension off, slide the belt off the alternator pulley with your free hand.
• Slowly release the tensioner back to its rest position.
• Take a picture of the belt routing before removal.

Step 6: Remove the serpentine belt (if replacing)

• Note how the belt routes around each pulley.
• From the top and side, unthread the belt from all pulleys and remove it from the engine bay.
• Set it aside if you plan to re-use it, but replacing is recommended.

Step 7: Disconnect electrical connections at the alternator

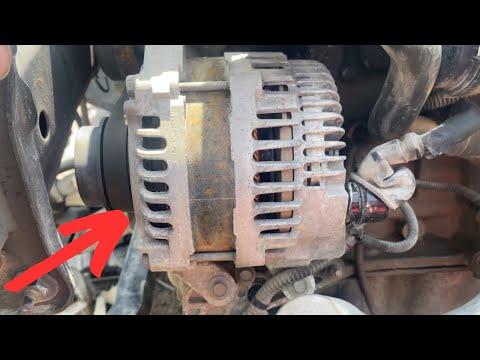

• From the top of the engine bay, locate the alternator at the front of the engine (toward passenger side).
• Press the tab and unplug the small alternator connector using your fingers or needle-nose pliers gently.
• Use a 10mm or 13mm socket (size varies) to remove the nut on the large B+ cable at the back of the alternator.
• Lift the cable off and move it aside. Do not twist the stud.
• Place the nut back on the stud loosely so it doesn’t get lost.

Step 8: Remove any brackets or components blocking alternator removal

• Some Escapes have brackets or supports near the alternator.
• Use the appropriate 13mm or 15mm socket and 3/8" ratchet to remove any small brackets attached to the alternator or its mounting ears.
• Use an E-torx socket if any bolts have E-heads; keep track of where each bolt came from.

Step 9: Remove alternator mounting bolts

• Locate the upper and lower alternator mounting bolts from the front/top and from the wheel well.
• Use a 15mm socket and 3/8" ratchet to loosen and remove the upper mounting bolt.
• From the wheel well, use a 15mm socket and possibly a 1/2" ratchet if it’s tight to remove the lower mounting bolt(s).
• Support the alternator with one hand as you remove the last bolt so it does not drop.

Step 10: Remove the alternator from the engine bay

• Carefully work the alternator out of its bracket; it may be snug in the mounting ears.
• If stuck, gently pry at the mounting ear with a flathead screwdriver, but do not bend the bracket.
• Angle and tilt the alternator out through the top or wheel well opening (whichever has more room).
• Be patient; small angle changes help a lot.

Step 11: Prepare and install the new alternator

• Compare the new alternator to the old one: same connector, pulley size, mounting ears, and clocking.
• Lightly coat the new alternator mounting ears with anti-seize compound to ease future removal.
• Carefully feed the new alternator into position through the same path the old one came out.
• Align the mounting ears with the bracket holes.

Step 12: Reinstall alternator mounting bolts

• Install the lower mounting bolt(s) by hand first to avoid cross-threading.
• Install the upper mounting bolt by hand.
• Use a 15mm socket and 3/8" ratchet to snug all alternator bolts.
• Use a torque wrench with 15mm socket to tighten each mounting bolt to factory specification (refer to service info).
• Always torque bolts; don’t just “feel tight”.

Step 13: Reconnect alternator electrical connections

• Apply a small amount of dielectric grease inside the alternator connector.
• Plug in the small alternator connector until it clicks.
• Install the large B+ cable on the alternator stud.
• Install the B+ nut using a 10mm or 13mm socket and snug it down, then torque to factory specification (do not overtighten).
• Make sure the rubber boot (if present) fully covers the B+ terminal.

Step 14: Reinstall any brackets or supports removed

• Reinstall any engine brackets or supports you removed earlier, using the original hardware.
• Use the correct 13mm or 15mm socket and torque wrench to tighten them to factory specification.

Step 15: Install the new serpentine belt

• Route the new belt according to your picture or the routing diagram under the hood.
• Leave it off the alternator pulley for last.
• Use your serpentine belt tool or breaker bar on the tensioner and rotate to release tension.
• With the tensioner held, slip the belt over the alternator pulley.
• Slowly release the tensioner so it takes up the slack.
• Check from top and wheel well that the belt sits fully in all pulley grooves.

Step 16: Reinstall intake duct and engine cover

• Reinstall the intake duct and reconnect any hoses or sensors.
• Tighten hose clamps with a flathead screwdriver or 8mm socket.
• Press the engine cover back down onto its mounting grommets until it snaps in place.

Step 17: Reinstall splash shield and wheel

• Reposition the wheel well splash shield inside the fender.
• Reinstall push clips with your hands or trim clip tool and Torx screws with a T25 screwdriver.
• Install the wheel, then start all lug nuts by hand.
• Lower the Escape using the floor jack and remove the jack stands.
• Use a 19mm socket and torque wrench to torque lug nuts in a star pattern to factory wheel torque specification.

Step 18: Reconnect the battery

• Clean the battery posts with a battery terminal brush if corroded.
• Place the negative cable clamp back on the negative post.
• Tighten the clamp with a 10mm socket until snug; don’t overdo it.
• Make sure the clamp doesn’t rotate by hand when tight.

---

✅ After Repair

• 🔑 Start the engine and listen for any unusual noises such as belt squeal, grinding, or rattling.
• ⚡ Check that the battery/charging warning light on the dash turns off after starting.
• 📏 Use the vehicle’s information display (if equipped) or a basic multimeter to check charging voltage at the battery; you should see approximately 13.5–14.8 volts with the engine running.
• 🛞 Take a short test drive, then recheck belt alignment and lug nut torque when you return.
• 📻 Reset your clock and radio presets as needed.

---

💰 DIY vs Shop Cost

Shop Cost: $750-$1,050 (parts + labor)

DIY Cost: $280-$480 (parts only, depending on alternator brand)

You Save: $270-$770 by doing it yourself!

Shop labor rates in Los Angeles typically run $130-$180/hour. This repair takes a shop approximately 2.5-3.0 hours.

---
