🔧 Traverse - Alternator Replacement

The alternator keeps your A4—sorry, your Traverse—battery charged and powers the electrical system while the engine runs. Replacing it means disconnecting the battery, removing the serpentine belt, swapping the alternator, then reinstalling everything with correct tightening (torque) so connections don’t loosen.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent short circuits.
• ⚠️ Let the engine cool; the radiator area and exhaust parts can burn you.
• ⚠️ Support the vehicle with jack stands before going underneath—never rely on a jack.
• ⚠️ Keep fingers clear of the belt and pulleys; they can pinch hard.
• ⚠️ Do not allow the alternator power cable to touch ground after disconnecting it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive ratchet
• 3/8" drive torque wrench (10–100 Nm range)
• Serpentine belt tool (specialty)
• Socket set (8mm–18mm)
• Wrench set (8mm–18mm)
• Extension set (3", 6", 12")
• Trim clip removal tool
• Flat-blade screwdriver
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Intake duct clamps (if damaged) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and take a photo of the belt routing sticker (or draw the routing).
• Make sure you have your radio presets handy (battery disconnect may reset some settings).
• If you’ll go underneath, place wheel chocks and raise/support the front safely on jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket (or 10mm wrench) to loosen the negative battery terminal clamp.
• Lift the negative cable off and position it so it can’t spring back onto the terminal.
• When reinstalling later: Torque to 17 Nm (13 ft-lbs).
• Negative off first, on last.

Step 2: Remove the engine cover and intake ducting (as needed)

• If equipped, pull up on the engine cover to release the grommets (hands only).
• Use an 8mm socket or flat-blade screwdriver to loosen intake duct clamps if they block alternator access.
• Use a trim clip removal tool for any push-pins so they don’t break.

Step 3: Relieve belt tension and remove the serpentine belt

• Use a serpentine belt tool (specialty) on the belt tensioner.
• Rotate the tensioner to relieve tension, then slip the belt off the alternator pulley.
• Slowly release the tensioner back to its stop.
• Don’t let the tensioner snap back.

Step 4: Disconnect alternator electrical connections

• Unplug the alternator electrical connector by releasing the lock tab using a flat-blade screwdriver (gentle pressure).
• Remove the alternator main power (B+) cable nut using a 13mm socket (commonly used on this platform).
• Move the cable aside and keep it from touching any metal parts.
• When reinstalling later: Torque to 15 Nm (11 ft-lbs).
• Cover the cable end with a glove.

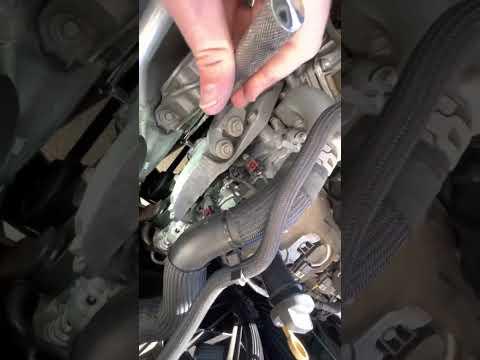

Step 5: Remove the alternator mounting bolts

• Remove the alternator mounting bolts using the appropriate socket (commonly 15mm socket) with a ratchet and extensions as needed.
• Support the alternator with one hand as you remove the last bolt so it doesn’t drop.
• When reinstalling later: Torque to 50 Nm (37 ft-lbs).

Step 6: Remove the alternator from the engine bay

• Work the alternator out carefully—tilt/rotate it to clear hoses and brackets.
• If clearance is tight, you may need to remove additional intake ducting using an 8mm socket.

Step 7: Install the new alternator

• Position the new alternator in place and start the mounting bolts by hand to avoid cross-threading.
• Tighten the bolts evenly using a ratchet, then final tighten with a torque wrench: Torque to 50 Nm (37 ft-lbs).

Step 8: Reconnect alternator wiring

• Install the B+ cable and nut using a 13mm socket, then final tighten with a torque wrench: Torque to 15 Nm (11 ft-lbs).
• Plug the electrical connector back in until it clicks.

Step 9: Reinstall the serpentine belt

• Route the belt exactly per your photo/routing label.
• Use the serpentine belt tool (specialty) to rotate the tensioner and slip the belt onto the alternator pulley last.
• Double-check the belt is fully seated in every pulley groove using a work light.

Step 10: Reinstall intake parts and reconnect battery

• Reinstall any intake ducting and tighten clamps using an 8mm socket (snug, do not strip).
• Reconnect the negative battery terminal using a 10mm socket, then Torque to 17 Nm (13 ft-lbs).

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light stays off.
• Listen for belt squeal or chirping; if present, shut off and re-check belt seating.
• With a multimeter, check charging voltage at the battery: typically around 13.5–14.8V with engine running.
• Recheck for any loose tools/rags in the engine bay before driving.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $220-$520 (parts only)

You Save: $430-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
