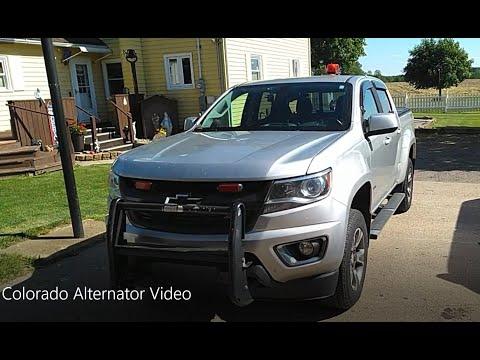

🔧 Colorado - Alternator Replacement

The alternator charges your battery and powers the truck’s electrical system while the engine runs. Replacement involves disconnecting the battery, removing the serpentine belt, unbolting the alternator, and reinstalling everything in the correct order.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🔌 Disconnect the negative battery cable first to prevent a short.
• 🔥 Let the engine cool; you’ll work near hot components.
• 🧱 Support the truck safely if you lift it; never rely on a jack alone.
• ⚡ Do not allow the alternator B+ cable to touch ground/metal.
• 🧤 Wear eye protection; belts and tools can slip suddenly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Serpentine belt tool (specialty)
• Socket set: 8mm, 10mm, 13mm, 15mm
• Wrench set: 10mm, 13mm
• Torx bit set (T20-T30)
• Trim clip removal tool
• Flat-blade screwdriver
• Torque wrench (10-100 ft-lbs)
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator (3.6L, correct amperage for your Colorado) - Qty: 1
• Serpentine drive belt - Qty: 1
• Alternator electrical terminal nut (if damaged) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and keep the key fob away from the truck.
• Disconnect the battery negative cable (black) before touching the alternator wiring.
• If you remove any intake ducting, take a quick photo first for hose/clamp routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm wrench to loosen the negative (black) battery terminal.
• Remove the negative cable and tuck it aside so it can’t spring back to the post.
• Torque to 15 Nm (11 ft-lbs) on reassembly.

Step 2: Remove the engine cover and air intake duct (as needed for access)

• Pull up on the engine cover to release the rubber grommets, or remove fasteners with the correct socket/Torx bit if equipped.
• Loosen intake clamps using an 8mm socket or flat-blade screwdriver.
• Release any clips with a trim clip removal tool, then move the duct aside.
• Tip: Label any small hoses with tape.

Step 3: Release serpentine belt tension

• Use a serpentine belt tool (specialty) or 1/2" breaker bar on the belt tensioner.
• Rotate the tensioner to relieve tension, then slide the belt off the alternator pulley.
• A serpentine belt tool is a long handled bar made to reach the tensioner in tight spaces.
• Tip: Sketch the belt routing before removal.

Step 4: Disconnect alternator electrical connections

• Unplug the alternator connector by releasing the lock tab with a flat-blade screwdriver if needed.
• Remove the B+ cable protective boot.
• Use a 13mm socket to remove the B+ terminal nut and set the cable aside.
• Torque to 15 Nm (11 ft-lbs) on reassembly.

Step 5: Unbolt and remove the alternator

• Remove the alternator mounting bolts using a 15mm socket and 3/8" ratchet.
• Support the alternator with your free hand as the last bolt comes out.
• Lift the alternator out of the engine bay (you may need to rotate it for clearance).
• Torque to 50 Nm (37 ft-lbs) on reassembly.

Step 6: Install the new alternator

• Set the new alternator in place by hand and start all mounting bolts by hand first.
• Tighten bolts with a 15mm socket, then finish with a torque wrench.
• Torque to 50 Nm (37 ft-lbs).

Step 7: Reconnect alternator wiring

• Install the B+ cable onto the alternator stud and tighten with a 13mm socket.
• Torque to 15 Nm (11 ft-lbs), then reinstall the protective boot.
• Reconnect the alternator plug until it clicks.

Step 8: Reinstall the serpentine belt

• Route the belt according to the under-hood belt diagram.
• Use the serpentine belt tool (specialty) or 1/2" breaker bar to rotate the tensioner.
• Slide the belt fully onto the alternator pulley and slowly release the tensioner.
• Visually confirm the belt is seated in every pulley groove.

Step 9: Reinstall intake ducting and engine cover

• Reinstall the intake duct and tighten clamps using an 8mm socket or flat-blade screwdriver.
• Reinstall any clips with the trim clip removal tool.
• Press the engine cover back onto its grommets (or reinstall fasteners with the correct socket/Torx bit).

Step 10: Reconnect the battery and final check

• Reconnect the negative battery terminal using a 10mm wrench.
• Torque to 15 Nm (11 ft-lbs).
• Start the engine and listen for belt squeal or slapping.

---

✅ After Repair

• With the engine running, verify the battery/charging warning light is off.
• Turn on headlights and blower motor; confirm no dimming or warning messages.
• Recheck the belt tracking after a short test drive.
• If the battery light stays on, recheck the alternator connector and B+ nut tightness.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,050 (parts + labor)

DIY Cost: $220-$520 (parts only)

You Save: $330-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
