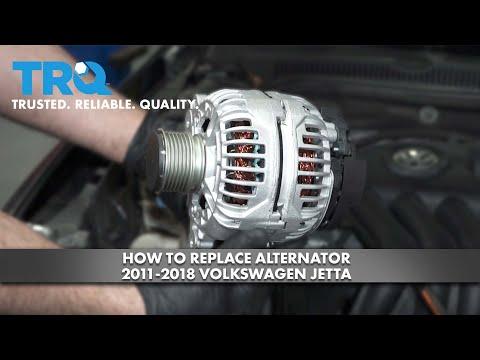

🔧 Jetta - Alternator Replacement

On your Jetta, replacing the alternator involves disconnecting the battery, removing the serpentine belt, unplugging the alternator wiring, and swapping the alternator itself. The exact steps and torque specs can change depending on whether your car has Auto Start-Stop (some versions use a different charging setup).

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching the alternator wiring to prevent shorting the main power cable.
• ⚠️ Let the engine cool; you’ll be working near hot exhaust/turbo plumbing.
• ⚠️ Support the car with jack stands if you need under-car access; never rely on a jack alone.
• ⚠️ Keep fingers clear of the belt path when releasing belt tension.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 16mm socket
• 3/8" ratchet
• 3/8" torque wrench (10–100 Nm range)
• 3/8" breaker bar
• Serpentine belt tool 16mm (specialty)
• Torx T25 bit
• Torx T30 bit
• Trim clip removal tool
• Flathead screwdriver
• Needle-nose pliers
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Work gloves
• Safety glasses
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator mounting bolts - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Open the hood and note any radio presets if you care about them.
• Disconnect the battery: use a 10mm socket to remove the negative (-) terminal first, then position it so it can’t spring back.
• Tip: Take a quick photo of the belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower engine cover (if equipped)

• Raise the front of the car with a floor jack (rated 3-ton minimum) and support it on jack stands (rated 3-ton minimum).
• Use a Torx T25 bit / Torx T30 bit (varies by fastener) to remove the undertray screws.
• Use a trim clip removal tool for any push-clips.

Step 2: Relieve belt tension and remove the serpentine belt

• From above or below (whichever gives you access), place a serpentine belt tool 16mm (specialty) or 16mm socket on the belt tensioner.
• Rotate the tensioner to release tension, then slip the belt off the alternator pulley.
• Slowly release the tensioner back to rest. (Don’t let it snap back.)
• Tip: Compare new belt length before installing.

Step 3: Disconnect the alternator electrical connections

• Locate the alternator electrical plug and release the lock tab using a flathead screwdriver, then unplug it.
• Remove the main charging cable nut using a 13mm socket, then lift the cable off the stud.
• Move the cable aside so it cannot touch metal.

Step 4: Unbolt and remove the alternator

• Remove the alternator mounting bolts using the correct socket (commonly 13mm socket or 16mm socket depending on bracket).
• Support the alternator with one hand as you remove the last bolt.
• Work the alternator out through the best opening (top or bottom). Use a flashlight to avoid snagging wiring.

Step 5: Install the new alternator

• Set the new alternator into place and start all mounting bolts by hand to prevent cross-threading.
• Tighten the bolts evenly using a 3/8" ratchet, then final-tighten with a 3/8" torque wrench (10–100 Nm range).
• Torque to the correct spec for your alternator/bracket variant. (I’ll provide the exact Nm/ft-lb once you answer the two quick questions below.)

Step 6: Reconnect alternator wiring

• Reinstall the main charging cable and nut using a 13mm socket, then tighten with a 3/8" torque wrench (10–100 Nm range).
• Plug in the alternator connector until it clicks.

Step 7: Reinstall the serpentine belt

• Route the belt correctly over all pulleys (use the photo you took).
• Use the serpentine belt tool 16mm (specialty) to rotate the tensioner, slip the belt fully onto the alternator pulley, then gently release the tensioner.
• Visually confirm the belt is seated in every pulley groove.

Step 8: Reinstall the undertray and reconnect the battery

• Reinstall the lower engine cover using the Torx T25 bit / Torx T30 bit and any clips.
• Lower the car from the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Reconnect the battery negative terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light turns off.
• Listen for belt squeal or ticking that could indicate belt misalignment.
• Check for any loose wiring near the belt path.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $400-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---

🎯 Ready to get started?

Before I lock in the exact torque specs and the correct alternator/belt setup, answer these two quick questions:

• ❓ Does your Jetta have Auto Start-Stop (engine shuts off at stops)?
• ❓ Are you replacing a standard alternator, or does it look like a larger “starter-generator” unit with heavier cabling?
