🔧 C-HR - Alternator Replacement

On your C-HR, the alternator charges the battery and powers the electrical system while the engine is running. Replacement is mostly bolt-on, but access is tight, so taking off the air intake ducting and working carefully around the belt and wiring is key.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Quick check so I can be 100% trim-accurate: What amperage is printed on the alternator label (for example 100A/120A/130A)? That determines the exact factory torque specs for the mounting and terminal nut.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery terminal first to prevent shorts.
• ⚠️ Let the engine cool completely; the exhaust and engine parts get very hot.
• ⚠️ Support the vehicle with jack stands before working underneath (never rely only on a jack).
• ⚠️ Keep fingers and tools clear of the belt path while releasing the tensioner.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench
• 3/8" extension set
• 14mm combination wrench
• Flat-blade screwdriver
• Trim clip removal tool
• Needle-nose pliers
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1 Recommended if belt is worn

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Open the hood and make sure the engine is fully cool.
• Look at the alternator label and note the amperage (100A/120A/130A). Reply with that number so I can give the exact Toyota torque specs.
• Take a quick photo of the belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

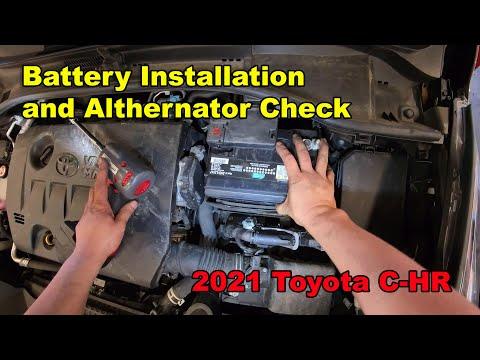

Step 1: Disconnect the battery

• Use a 10mm socket with a 3/8" ratchet to loosen the negative battery terminal clamp.
• Lift the negative cable off and tuck it aside so it can’t spring back.

Step 2: Remove the air intake ducting (for access)

• Use a flat-blade screwdriver to loosen any hose clamps on the intake duct.
• Use needle-nose pliers to release any small hose clips, then pull hoses off gently.
• Remove plastic push-clips with a trim clip removal tool if your duct/cover uses them.
• Move the intake ducting out of the way.

Step 3: Raise the front and remove the lower splash shield (if needed)

• Lift the front with a floor jack (rated 2-ton minimum) and set it securely on jack stands (rated 2-ton minimum).
• Remove the splash shield fasteners using a 10mm socket and trim clip removal tool.
• Lay the fasteners out in a pattern.

Step 4: Release belt tension and remove the serpentine belt

• Place a 14mm combination wrench (or 14mm socket and 3/8" ratchet) on the belt tensioner hex.
• Rotate the tensioner to relieve tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to its resting position.

Step 5: Disconnect alternator electrical connections

• Unplug the alternator connector by pressing the lock tab and pulling the plug straight out (use a flat-blade screwdriver gently only if needed).
• Remove the protective boot over the main charging cable (B+).
• Use a 10mm socket to remove the B+ terminal nut, then lift the cable off and move it aside.

Step 6: Remove the alternator mounting bolts

• Support the alternator with one hand.
• Use a 14mm socket, 3/8" ratchet, and 3/8" extensions to remove the alternator mounting bolts.
• Remove the alternator from the engine bay (you may need to rotate it to clear brackets and hoses).

Step 7: Install the new alternator

• Position the alternator in place and start all mounting bolts by hand.
• Tighten the mounting bolts with a 14mm socket and 3/8" ratchet.
• Then tighten using a 3/8" torque wrench to the correct Toyota spec for your alternator amperage label.

Step 8: Reconnect wiring

• Install the B+ cable and nut using a 10mm socket, then torque it with a 3/8" torque wrench to the correct Toyota spec for your alternator label.
• Reinstall the protective boot over the B+ terminal.
• Plug in the alternator connector until it clicks.

Step 9: Reinstall the belt

• Route the belt according to your photo.
• Use a 14mm combination wrench to rotate the tensioner, slip the belt over the alternator pulley, then release tension slowly.
• Double-check the belt is centered on every pulley.

Step 10: Reassemble and reconnect the battery

• Reinstall the splash shield using a 10mm socket and trim clip removal tool.
• Lower the vehicle safely (use the floor jack and remove the jack stands).
• Reinstall the intake ducting using a flat-blade screwdriver and any sockets needed (often 10mm socket or 12mm socket depending on clamps/bolts).
• Reconnect the negative battery terminal using a 10mm socket and snug it securely.

---

✅ After Repair

• Start the engine and confirm the belt runs smoothly with no squeal.
• Turn on headlights and blower motor; confirm there’s no dimming or warning lights.
• If you have a multimeter: check charging voltage at the battery with engine idling (typically around 13.5–14.8V on a healthy system).
• Recheck for any loose tools, disconnected hoses, or leftover clips.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 (parts + labor)

DIY Cost: $220-$550 (parts only)

You Save: $430-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
