🔧 Avalon - Alternator Replacement

The alternator charges your Avalon’s battery and powers the electrical system while the engine runs. Replacing it involves disconnecting the battery, removing the serpentine drive belt, unplugging the alternator wiring, then unbolting and swapping the alternator.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable first to prevent short circuits.
• ⚠️ Do not allow your wrench to touch metal while on the alternator B+ terminal.
• ⚠️ Let the engine cool before working near the radiator and belt area.
• ⚠️ If you raise the car, support it with jack stands on solid, level ground.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Serpentine belt tool (specialty)
• Flat trim clip tool
• Torque wrench (10-100 Nm range)
• Small flathead screwdriver
• Multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1 Replace if cracked/glazed
• Battery terminal anti-corrosion spray - Qty: 1

---

📋 Before You Begin

• Park your Avalon on level ground and set the parking brake.
• Open the hood and remove the plastic engine cover (it pulls up on most Toyotas; if yours has fasteners, use a 10mm socket).
• If you plan to access the belt/alternator from the wheel well, loosen the front-right lug nuts 1/2 turn using a 21mm lug socket before lifting. A lug socket is a deep socket for wheel nuts.
• Take a quick photo of the belt routing (or draw it). This prevents a “wrong route” mistake during reinstall.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative (-) battery terminal clamp.
• Lift the negative cable off and tuck it aside so it cannot spring back.

Step 2: Choose your access path (top or wheel-well)

• Top access: If you have enough room, you can do most of this from above with a 14mm socket and 3/8" drive extension set.
• Wheel-well access: Often makes belt/tensioner access easier.

Step 3 (Wheel-well path): Lift the front-right corner and remove the splash shield

• Place wheel chocks at the rear wheels.
• Lift using a floor jack (rated 2-ton minimum) and support with jack stands (rated 2-ton minimum).
• Remove the front-right wheel using a 21mm lug socket.
• Remove the right-side splash shield/liner fasteners using a flat trim clip tool and a 10mm socket (some fasteners are bolts, some are clips).
• Reinstall wheel later and Torque lug nuts to 103 Nm (76 ft-lbs).

Step 4: Release tension and remove the serpentine belt

• Place a 17mm socket on the belt tensioner arm bolt.
• Use a serpentine belt tool (specialty) or your 3/8" drive ratchet to rotate the tensioner and relieve belt tension.
• Slip the belt off the alternator pulley first, then remove it from the remaining pulleys.
• Don’t pinch fingers when tension releases.

Step 5: Disconnect alternator electrical connections

• Locate the alternator wiring on the rear of the alternator.
• Unplug the regulator connector by depressing the tab (use a small flathead screwdriver gently if the tab is stubborn).
• Remove the rubber boot covering the main charging (B+) terminal.
• Use a 12mm socket to remove the B+ terminal nut, then lift the cable off the stud.
• During reassembly, Torque the B+ terminal nut to 9 Nm (80 in-lbs).

Step 6: Unbolt and remove the alternator

• Support the alternator with one hand while removing bolts so it doesn’t drop.
• Remove the alternator mounting bolts using a 14mm socket and 3/8" drive extension set.
• Work the alternator out of the bracket and out of the engine bay (you may need to rotate it to clear hoses/wiring).
• During reassembly, Torque alternator mounting bolts to 46 Nm (34 ft-lbs).

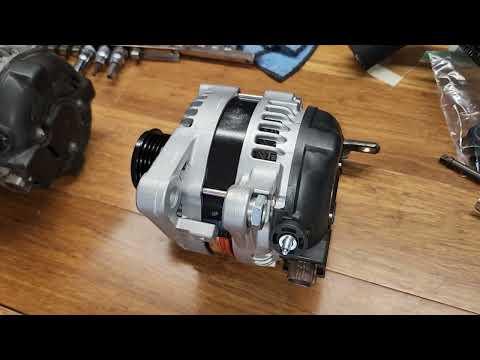

Step 7: Install the new alternator

• Position the new alternator into the bracket by hand.
• Thread mounting bolts in by hand first (prevents cross-threading).
• Tighten with a 14mm socket, then finish with a torque wrench (10-100 Nm range): Torque to 46 Nm (34 ft-lbs).

Step 8: Reconnect alternator wiring

• Install the B+ cable onto the alternator stud and tighten using a 12mm socket: Torque to 9 Nm (80 in-lbs).
• Reinstall the rubber boot over the B+ terminal (important to prevent accidental shorting).
• Plug the regulator connector back in until it clicks.

Step 9: Reinstall the serpentine belt

• Route the belt according to your photo/diagram.
• Rotate the tensioner again using the 17mm socket and serpentine belt tool (specialty).
• Slip the belt onto the alternator pulley last, then slowly release the tensioner.
• Visually confirm the belt is fully seated in every pulley groove.

Step 10 (Wheel-well path): Reinstall splash shield and wheel

• Reinstall the splash shield using the flat trim clip tool and 10mm socket.
• Reinstall the wheel and hand-tighten lug nuts.
• Lower the car, then use a torque wrench: Torque lug nuts to 103 Nm (76 ft-lbs).

Step 11: Reconnect the battery

• Clean the terminal if needed, then reinstall the negative cable.
• Tighten using a 10mm socket until snug (do not overtighten and crack the clamp).
• Apply battery terminal anti-corrosion spray if you have it.

---

✅ After Repair

• Start the engine and confirm the charging warning light turns off.
• Use a multimeter at the battery terminals: engine running should typically show about 13.5-14.8V.
• Listen for belt squeal; if present, shut off and re-check belt routing and seating.
• Recheck for any loose tools/wiring near the belt before closing the hood.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹40,000 (parts + labor)

DIY Cost: ₹9,000-₹28,000 (parts only)

You Save: ₹9,000-₹12,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
