🔧 4Runner - Alternator Replacement

The alternator charges your battery and powers the electrical system while your 4Runner is running. Replacement involves removing the drive belt, unplugging the alternator wiring, unbolting the alternator, and installing the new unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable first to prevent a short at the alternator “B+” power stud.
• ⚠️ Work on a cool engine; the radiator, fan area, and exhaust components can burn you.
• ⚠️ If you raise the front, support with jack stands on the frame (never rely on a jack).
• ⚠️ Keep tools away from the battery positive terminal and alternator power stud.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench (10–100 Nm range)
• 3/8" extension (6")
• Flat-blade screwdriver
• Trim clip remover
• Serpentine belt tool with 14mm socket (specialty)
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1 (recommended if worn/cracked)
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully.
• If you’ll lift the front: chock the rear wheels, then raise the front and set it on jack stands.
• Take a quick photo of the belt routing under the hood (or draw it). This prevents misrouting later.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

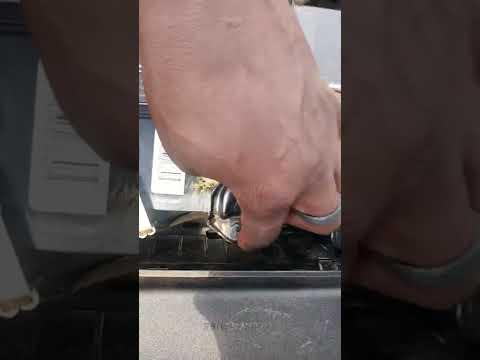

• Use a 10mm socket and 3/8" ratchet to loosen the negative battery terminal clamp and remove it from the battery post.
• Tuck the cable aside so it can’t spring back to the post.
• Torque to 5 Nm (44 in-lbs) when reinstalling.

Step 2: Remove the front skid plate (if equipped)

• Use a 12mm socket and 3/8" ratchet to remove the skid plate bolts.
• Lower the skid plate and set it aside.
• Torque to 27 Nm (20 ft-lbs) when reinstalling.

Step 3: Remove the intake duct (room to work)

• Use a flat-blade screwdriver to loosen the hose clamps on the intake duct.
• Use a trim clip remover to release any clips holding the duct/resonator (if present).
• Lift the duct out and place it where it won’t get stepped on.

Step 4: Release belt tension and remove the serpentine belt

• Use a serpentine belt tool with 14mm socket (specialty) on the belt tensioner arm and rotate to relieve tension. A belt tool is a long handled wrench made for tight spaces.
• Slip the belt off the alternator pulley first, then slowly release the tensioner.
• Remove the belt from the rest of the pulleys if you’re replacing it.

Step 5: Unplug alternator wiring

• Locate the alternator electrical connector and press the tab to unplug it by hand (use a flat-blade screwdriver gently if stuck).
• Remove the rubber boot over the alternator power stud (B+).
• Use a 10mm socket to remove the B+ terminal nut and lift the cable off the stud.
• Torque to 9 Nm (80 in-lbs) when reinstalling.

Step 6: Remove the alternator mounting bolts

• Support the alternator with one hand so it doesn’t drop when bolts come out.
• Use a 14mm socket, 3/8" ratchet, and 6" extension to remove the alternator mounting bolts.
• Wiggle the alternator free and lift it out from the top.

Step 7: Install the new alternator

• Position the new alternator into place by hand.
• Start the mounting bolts by hand first (to avoid cross-threading), then tighten with a 14mm socket and 3/8" ratchet.
• Torque to 43 Nm (32 ft-lbs) for the alternator mounting bolts.

Step 8: Reconnect alternator wiring

• Install the B+ cable onto the stud and tighten with a 10mm socket.
• Apply a small amount of dielectric grease to the connector seal, then click the alternator connector back in until it locks.
• Reinstall the rubber boot over the B+ stud.
• Torque to 9 Nm (80 in-lbs) for the B+ nut.

Step 9: Reinstall the belt

• Route the belt correctly on all pulleys (match your photo/diagram).
• Use the serpentine belt tool with 14mm socket (specialty) to rotate the tensioner and slip the belt onto the alternator pulley last.
• Double-check the belt is seated in every pulley groove with a flashlight. One rib off can shred belts.

Step 10: Reassemble intake duct and skid plate

• Reinstall the intake duct and tighten clamps using a flat-blade screwdriver.
• Reinstall the skid plate using a 12mm socket and 3/8" ratchet.
• Torque to 27 Nm (20 ft-lbs) for skid plate bolts.

Step 11: Reconnect the battery

• Reconnect the negative terminal using a 10mm socket and 3/8" ratchet.
• Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• Start your 4Runner and confirm the battery/charging warning light is off.
• Listen for belt squeal or slapping; if heard, shut off and re-check belt routing and seating.
• With the engine idling, check charging voltage at the battery (if you have a meter): it should typically be around 13.5–14.8V.
• Take a short test drive, then do a final under-hood check for loose tools, loose wiring, or belt dust.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 (parts + labor)

DIY Cost: $220-$550 (parts only)

You Save: $430-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
