🔧 Pathfinder - Alternator Replacement

The alternator keeps your battery charged and powers the electrical system while the engine runs. On your Pathfinder, replacement involves removing the serpentine belt, unplugging the alternator wiring, and unbolting the alternator from its mount.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the alternator wiring (prevents short circuits).
• ⚠️ Support the vehicle on jack stands before working under it; never rely on a jack alone.
• ⚠️ Keep fingers/tools clear of the belt path and pulleys.
• ⚠️ Let the engine cool if it was recently running (hot radiator/exhaust nearby).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 21mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Socket set: 10mm, 12mm, 14mm
• Wrench set: 10mm, 14mm
• Extension set: 3" and 6"
• Trim clip remover (specialty)
• Torque wrench (10-150 ft-lbs range)
• Digital multimeter
• Small wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 2
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🧱 Chock the rear wheels.
• 🔋 Open the hood and disconnect the negative battery terminal using a 10mm wrench.
• 📸 Take a picture of the belt routing (or use the under-hood belt diagram) so the belt goes back on correctly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and access the lower engine area

• Use wheel chocks behind the rear tires.
• Use a floor jack (rated 3-ton minimum) to lift the front-right jacking point, then support with jack stands (rated 3-ton minimum).
• Remove the right-front wheel using a 21mm socket and breaker bar.
• Remove the front under-cover/splash shield fasteners using a 10mm socket and trim clip remover (specialty), then lower the cover out of the way.

Step 2: Create working room up top (if needed)

• Remove the intake duct/air snorkel clamps and bolts using a 10mm socket, then move the duct aside for better alternator access.
• Take a quick photo before disassembly.

Step 3: Remove belt tension from the alternator

• From the top or through the wheel well, place a 14mm wrench on the belt tensioner hex.
• Rotate the tensioner to relieve belt tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to its resting position.

Step 4: Disconnect alternator electrical connections

• Confirm the negative battery cable is disconnected.
• Unplug the alternator regulator connector by pressing the lock tab and pulling the connector straight off.
• Remove the rubber boot from the alternator B+ post, then remove the nut using a 10mm socket and take off the main battery charge cable.
• Clean the cable ring terminal lightly with a small wire brush if it’s dirty/corroded.

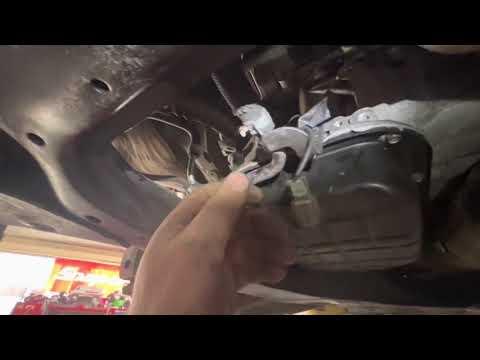

Step 5: Remove the alternator

• Support the alternator by hand.
• Remove the alternator mounting bolts using a 14mm socket and ratchet with a 6" extension.
• Work the alternator out of the engine bay (you may find it easiest to guide it out through the wheel well opening).

Step 6: Install the new alternator

• Position the new alternator in place and start the mounting bolts by hand (prevents cross-threading).
• Tighten the alternator mounting bolts using a 14mm socket, then Torque to 44 Nm (33 ft-lbs) with a torque wrench (10-150 ft-lbs range).

Step 7: Reconnect alternator wiring

• Install the main B+ cable onto the alternator post and tighten the nut with a 10mm socket, then Torque to 9.8 Nm (87 in-lbs) using a torque wrench (10-150 ft-lbs range).
• Reinstall the rubber protective boot over the B+ terminal.
• Apply a small amount of dielectric grease to the regulator connector seal, then plug the connector back in until it clicks.

Step 8: Reinstall the serpentine belt

• Route the belt exactly per the under-hood belt diagram.
• Use the 14mm wrench on the tensioner again, slip the belt fully onto the alternator pulley, then slowly release the tensioner.
• Visually confirm the belt is seated in every pulley groove (this is critical).

Step 9: Reassemble the splash shield and wheel

• Reinstall the under-cover/splash shield using the 10mm socket and trim clip remover (specialty).
• Reinstall the wheel. Hand-start lug nuts, then snug with a 21mm socket.
• Lower the vehicle, then Torque lug nuts to 133 Nm (98 ft-lbs) using a torque wrench (10-150 ft-lbs range).

Step 10: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm wrench.
• Install battery terminal anti-corrosion pads if you’re using them.

---

✅ After Repair

• 🔍 Start the engine and confirm the charge warning light is OFF.
• 🔌 Use a digital multimeter at the battery: engine running should typically read about 13.5V-14.8V.
• 👂 Listen for belt squeal or slapping; if present, shut off and re-check belt routing/seat.
• 🧼 Recheck the B+ terminal boot is fully covering the stud (prevents accidental shorting).

---

💰 DIY vs Shop Cost

Shop Cost: $600-$1,050 (parts + labor)

DIY Cost: $220-$520 (parts only)

You Save: $380-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
