🔧 CX-9 - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. On your CX-9, replacement mainly involves disconnecting the battery, removing the serpentine belt, unplugging the alternator wiring, and swapping the unit.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching alternator wiring (the alternator “B+” wire is always live).
• ⚠️ Let the engine and turbo area cool completely; hot parts can burn you.
• ⚠️ Support the vehicle with jack stands if you go underneath; never rely on a jack alone.
• ⚠️ Keep fingers clear of the belt path; the tensioner can snap back quickly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 1/2" breaker bar
• 3/8" ratchet
• 3/8" extension set
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• Torque wrench (10–150 ft-lbs)
• Trim clip removal tool
• Flathead screwdriver
• Pliers
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully.
• If you’ll access from below, chock the rear wheels and lift the front safely onto jack stands.
• Tip: Take a quick photo of belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Remove the negative cable and tuck it aside so it can’t spring back.
• Torque to 5 Nm (44 in-lbs) when reinstalling the terminal clamp.

Step 2: Remove the air intake duct (for access)

• Use a flathead screwdriver to loosen intake hose clamps.
• Use pliers to release any small hose clamps (if equipped).
• Lift out the intake duct/resonator as needed for working room.

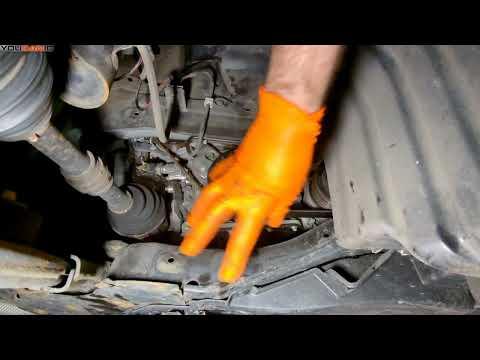

Step 3: Remove the lower splash shield (if needed)

• If access is tight from above, go underneath and use a trim clip removal tool and 10mm socket to remove the under cover fasteners.
• Set the shield and clips aside in a small pile so nothing gets lost.

Step 4: Relieve belt tension and remove the serpentine belt

• Place a 17mm socket and 1/2" breaker bar on the belt tensioner bolt.
• Rotate the tensioner to relieve tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to its resting position.
• Tip: Keep hands out of pinch points.

Step 5: Disconnect alternator electrical connections

• On the back of the alternator, unplug the alternator control connector by pressing the lock tab (use a flathead screwdriver gently if stuck).
• Remove the rubber boot covering the main charging cable (B+).
• Use a 10mm socket to remove the B+ retaining nut and lift the cable off the stud.
• Torque to 9 Nm (80 in-lbs) when reinstalling the B+ nut.

Step 6: Remove alternator mounting bolts

• Support the alternator by hand while removing bolts so it doesn’t drop.
• Use a 14mm socket and 3/8" ratchet with 3/8" extensions to remove the alternator mounting bolts.
• Remove the alternator from the bracket and maneuver it out (you may need to rotate it to clear hoses and wiring).
• Torque to 45 Nm (33 ft-lbs) for alternator mounting bolts during installation.

Step 7: Install the new alternator

• Position the alternator into place and start the mounting bolts by hand (prevents cross-threading).
• Use a 14mm socket to snug the bolts evenly.
• Use a torque wrench (10–150 ft-lbs) to finish tightening: Torque to 45 Nm (33 ft-lbs).

Step 8: Reconnect alternator wiring

• Install the B+ cable onto the stud and tighten with a 10mm socket: Torque to 9 Nm (80 in-lbs).
• Reinstall the rubber boot over the B+ stud.
• Plug in the alternator connector until it clicks.

Step 9: Reinstall the serpentine belt

• Route the belt according to your photo (make sure every rib sits in every pulley groove).
• Use a 17mm socket and 1/2" breaker bar to rotate the tensioner, slide the belt onto the alternator pulley, then release the tensioner slowly.
• Visually check belt alignment on all pulleys with a flashlight.

Step 10: Reinstall covers and reconnect the battery

• Reinstall the lower splash shield using the trim clip removal tool and 10mm socket.
• Reinstall the intake duct using a flathead screwdriver for clamps.
• Reconnect the negative battery terminal using a 10mm socket: Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• Start your CX-9 and confirm the battery/charging warning light stays off.
• Listen for belt squeal or slapping noises; shut off and re-check belt routing if you hear anything abnormal.
• If you have a multimeter, check charging voltage at the battery: roughly 13.5–14.7V with engine running.
• Take a short test drive, then recheck for any loose connectors or fluid hoses you may have moved.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,200 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $450-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
