🔧 Sorento - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. On your Sorento, replacement usually involves removing the serpentine belt and unbolting the alternator from the front of the engine.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Quick check (2 questions): Does your Sorento have Auto Start/Stop (ISG)? And are you planning to replace the serpentine belt at the same time (recommended if it’s cracked or glazed)?

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching alternator wiring (prevents short circuits).
• ⚠️ Let the engine cool fully; you’ll be working near hot parts.
• ⚠️ Support the vehicle with jack stands; never rely on a jack alone.
• ⚠️ Keep fingers clear of the belt drive path when releasing the tensioner.
• If equipped with ISG, be extra strict about battery disconnect and do not allow the cable to touch the terminal again until reassembly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 21mm socket
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm combination wrench
• 3/8" drive ratchet
• 3/8" drive extension set
• Flathead screwdriver
• Trim clip removal tool
• Torque wrench (10–150 Nm range)
• Serpentine belt tool (specialty)
• Multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Splash shield fastener clips - Qty: 1 set
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Open the hood and take a quick photo of the belt routing (or sketch it).
• If you’re new to this: a serpentine belt tool is a long handled wrench made to rotate the belt tensioner in tight spaces.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal and remove it from the battery.
• Move the cable aside so it can’t spring back to the terminal.
• Torque to 5 Nm (44 in-lbs) when reinstalling the battery terminal.

Step 2: Remove the upper engine cover and air intake ducting

• Remove the engine cover by pulling it upward firmly by hand.
• Use a flathead screwdriver to loosen the intake hose clamps.
• Use a 10mm socket as needed for any intake resonator/duct bolts, then lift the ducting out.
• More room now saves knuckles later.

Step 3: Raise the right-front and remove the wheel

• Break the lug nuts loose using a 21mm socket (just a half turn each).
• Lift with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the wheel using the 21mm socket.

Step 4: Remove the right-front splash shield (inner fender)

• Use a trim clip removal tool to pop out the plastic clips.
• Use a 10mm socket for any small bolts, then peel the shield back to access the belt/alternator area.

Step 5: Release belt tension and remove the serpentine belt

• Place a 17mm combination wrench or serpentine belt tool (specialty) on the belt tensioner hex.
• Rotate the tensioner to relieve tension, then slide the belt off the alternator pulley.
• Slowly let the tensioner return to its stop (do not let it snap back).

Step 6: Disconnect alternator electrical connectors

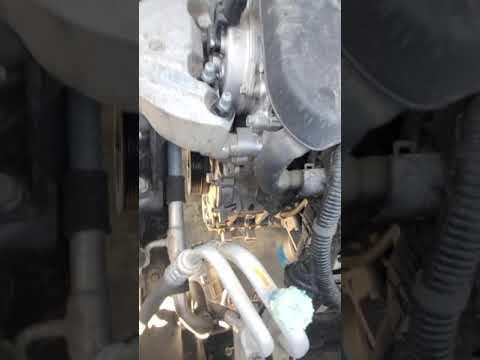

• Locate the alternator at the front of the engine.
• Remove the rubber cap on the main power stud.
• Use a 12mm socket to remove the B+ nut and lift off the power cable.
• Unplug the alternator connector by pressing the lock tab and pulling straight off.
• Torque to 9 Nm (80 in-lbs) when reinstalling the B+ nut.

Step 7: Remove the alternator mounting bolts

• Support the alternator with one hand while removing bolts.
• Use a 14mm socket with a 3/8" drive ratchet and 3/8" drive extension set to remove the alternator mounting bolts.
• Work the alternator out through the wheel well opening (tilt/rotate as needed).
• Torque to 49 Nm (36 ft-lbs) for alternator mounting bolts during installation.

Step 8: Install the new alternator

• Position the new alternator into place by hand.
• Start all mounting bolts by hand first (prevents cross-threading).
• Tighten mounting bolts with a 14mm socket, then Torque to 49 Nm (36 ft-lbs).

Step 9: Reconnect alternator wiring

• Plug in the alternator connector until it clicks.
• Reinstall the B+ cable and nut using a 12mm socket, then Torque to 9 Nm (80 in-lbs).
• Reinstall the rubber protective cap over the power stud.
• Apply a tiny amount of dielectric grease to the connector seal area only.

Step 10: Reinstall the serpentine belt

• Route the belt correctly using your photo/sketch.
• Rotate the tensioner with the 17mm combination wrench or serpentine belt tool (specialty) and slip the belt onto the alternator pulley last.
• Double-check the belt is centered on every pulley groove.

Step 11: Reinstall splash shield and wheel

• Reinstall the splash shield using the trim clip removal tool and 10mm socket.
• Reinstall the wheel and hand-thread lug nuts.
• Lower the vehicle, then tighten lug nuts using a 21mm socket in a star pattern.
• Torque to 108 Nm (80 ft-lbs) for the wheel lug nuts.

Step 12: Reinstall intake ducting and reconnect the battery

• Reinstall the intake ducting and tighten clamps using a flathead screwdriver and/or 10mm socket.
• Reconnect the negative battery terminal using a 10mm socket, then Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• Start the engine and listen for belt squeal or slapping sounds (shut off if you hear it).
• Use a multimeter at the battery terminals: you typically want about 13.5–14.8V with the engine running.
• Turn on headlights and rear defrost; recheck voltage to confirm it stays stable.
• Recheck for any warning lights after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $600-$1,100 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $350-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
