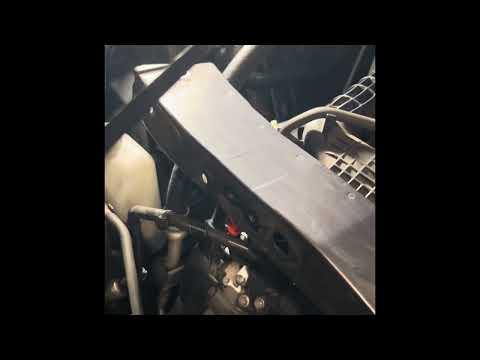

🔧 Odyssey - Alternator Replacement

Your Odyssey’s alternator charges the battery and powers the vehicle’s electrical system while the engine is running. Replacing it involves removing the drive belt, disconnecting wiring, unbolting the alternator, and installing the new unit with correct belt routing and electrical connections.

Difficulty Level: Advanced | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent shorts.
• ⚠️ Let the engine cool before working near the exhaust/front of engine.
• ⚠️ Support the vehicle with jack stands if you lift it; never rely on a jack.
• ⚠️ Keep fingers/tools clear of the belt path and pulleys.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–100 ft-lbs range)
• 6" socket extension
• Serpentine belt tool (specialty)
• Flat-blade trim clip tool
• Phillips screwdriver
• Needle-nose pliers
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Battery terminal anti-corrosion washers - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and keep the key fob at least 15 ft away from the vehicle.
• Disconnect the battery: use a 10mm socket to remove the negative (-) cable and isolate it so it can’t spring back.
• Take a photo of the belt routing. If your Odyssey has a belt-routing sticker, photograph that too.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield (if equipped)

• Lift the front safely using a floor jack (rated 3-ton minimum) and support it with jack stands (rated 3-ton minimum); use wheel chocks at the rear wheels.
• Remove the lower cover fasteners using a flat-blade trim clip tool and Phillips screwdriver.
• Trim clips pop out—don’t pry too hard.

Step 2: Relieve tension and remove the serpentine belt

• Use a serpentine belt tool (specialty) on the belt tensioner and rotate it to relieve belt tension.
• Slide the belt off one easy-to-reach pulley, then remove it from the rest of the pulleys.
• The tensioner is spring-loaded; move it slowly.

Step 3: Disconnect alternator electrical connections

• At the alternator, unplug the electrical connector by pressing the tab (use needle-nose pliers only if needed—don’t crush it).
• Remove the alternator power cable nut using a 10mm socket, then lift the cable off the stud.
• Cover the cable end so it cannot touch metal.
• This cable is “always hot” if the battery is connected.

Step 4: Remove the alternator mounting bolts

• Remove the alternator mounting bolts using a 12mm socket and 14mm socket with a 3/8" drive ratchet and 6" socket extension.
• Support the alternator with one hand while removing the last bolt.

Step 5: Remove the alternator

• Work the alternator out of the bracket and remove it from the engine bay (you may need to rotate it to clear surrounding parts).
• If it feels stuck, gently wiggle it free—do not pry hard against plastic components.

Step 6: Install the new alternator

• Set the new alternator into place and start all mounting bolts by hand to avoid cross-threading.
• Tighten the alternator mounting bolts using a 3/8" drive ratchet, then final-tighten with a 3/8" drive torque wrench (10–100 ft-lbs range).
• Torque to OEM spec (alternator bolt torque varies by mounting location; I can give exact values if you tell me whether you’re torquing the upper, lower, or bracket bolt).
• Hand-start every bolt first.

Step 7: Reconnect alternator wiring

• Install the main power cable onto the alternator stud and tighten the nut using a 10mm socket.
• Plug in the alternator connector until it clicks.
• Torque to OEM spec for the output stud nut (value varies by alternator design; I can provide the exact spec once you confirm if your replacement alternator uses a 10mm or 12mm nut).

Step 8: Install the serpentine belt

• Route the new belt exactly like your photo/routing label.
• Use the serpentine belt tool (specialty) to rotate the tensioner, slip the belt over the last pulley, then slowly release the tensioner.
• Visually confirm the belt ribs are fully seated in every grooved pulley.
• Misrouted belts squeal immediately.

Step 9: Reinstall the splash shield and lower the vehicle

• Reinstall the lower cover using the flat-blade trim clip tool and Phillips screwdriver.
• Lower the vehicle from the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).

Step 10: Reconnect the battery

• Install anti-corrosion washers if you’re using them.
• Reconnect the negative (-) terminal and tighten using a 10mm socket.

---

✅ After Repair

• Start the engine and confirm the charging warning light turns off.
• Listen for belt squeal or slapping noises; shut off and re-check belt routing if you hear anything abnormal.
• If you have a voltmeter, check battery voltage at idle: a healthy charging system is typically around 13.5–14.8V.
• Check for any stored warning messages on the dash after a short drive.

---
