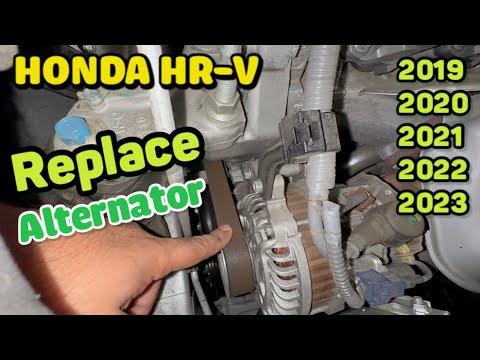

🔧 HR-V - Alternator Replacement

On your HR-V, the alternator charges the battery and powers the electrical system while the engine runs. Replacing it involves disconnecting the battery, removing the drive belt, unplugging the alternator wiring, and swapping the unit.

Difficulty Level: Advanced | Estimated Time: 2.0-3.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent electrical shorts.
• ⚠️ Let the engine cool; you’ll work near hot components.
• ⚠️ Support the vehicle with jack stands if you go underneath—never rely on a jack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 3/8" ratchet
• 3/8" torque wrench (10–80 ft-lbs range)
• 3/8" breaker bar
• Serpentine belt tool (specialty)
• Flat trim clip tool
• Needle-nose pliers
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and make sure you have your radio/security codes if applicable.
• Disconnect the battery: use a 10mm socket to remove the negative terminal first, then the positive if needed.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm access route (top + bottom)

• Raise the front safely using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lower engine splash shield fasteners using a flat trim clip tool and 10mm socket.
• More room makes this much easier.

Step 2: Remove the intake ducting (top side)

• Loosen the intake hose clamps using a 10mm socket.
• Release any clips with needle-nose pliers and move the ducting out of the way.

Step 3: Release belt tension and remove the drive belt

• Use a serpentine belt tool (specialty) on the belt tensioner to rotate it and relieve tension.
• Slip the belt off the alternator pulley first, then remove it from the other pulleys.
• A serpentine belt tool is a long, thin lever made for tight spaces.

Step 4: Disconnect alternator electrical connections

• Unplug the alternator connector by pressing the tab and pulling straight off.
• Remove the alternator battery cable nut using a 10mm socket and move the cable aside.
• Cover the cable end so it can’t touch metal.

Step 5: Remove the alternator mounting bolts

• Support the alternator by hand.
• Remove the upper and lower alternator mounting bolts using a 12mm socket and 14mm socket with a 3/8" ratchet.
• If a bolt is tight, use a 3/8" breaker bar.

Step 6: Remove the alternator from the engine bay

• Work the alternator out carefully—rotate it as needed to clear brackets and hoses.
• If clearance is tight, lower it out from underneath after the splash shield is off.

Step 7: Install the new alternator

• Position the alternator into place by hand.
• Start all mounting bolts by hand first to avoid cross-threading.
• Tighten the mounting bolts using a 3/8" torque wrench (10–80 ft-lbs range) to the exact factory spec for your alternator bracket.

Step 8: Reconnect alternator wiring

• Install the battery cable onto the alternator stud and tighten with a 10mm socket to the exact factory spec.
• Reconnect the alternator electrical plug until it clicks.

Step 9: Reinstall the drive belt

• Route the belt correctly on all pulleys (match the under-hood belt routing diagram).
• Use the serpentine belt tool (specialty) to rotate the tensioner and slip the belt over the alternator pulley.
• Visually confirm the belt is seated in every pulley groove.

Step 10: Reassemble and reconnect battery

• Reinstall the intake ducting using a 10mm socket.
• Reinstall the splash shield using a 10mm socket and flat trim clip tool.
• Reconnect the battery terminals using a 10mm socket (positive first, negative last).

---

✅ After Repair

• Start the engine and verify the charging warning light is off.
• Listen for belt squeal; if present, shut off and re-check belt routing/seating.
• If you have a multimeter, check charging voltage at the battery with the engine running (typically ~13.5–14.8V on a healthy system).

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,150 (parts + labor)

DIY Cost: $220-$650 (parts only)

You Save: $430-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.0-3.5 hours.

---
