🔧 Terrain - Alternator Replacement

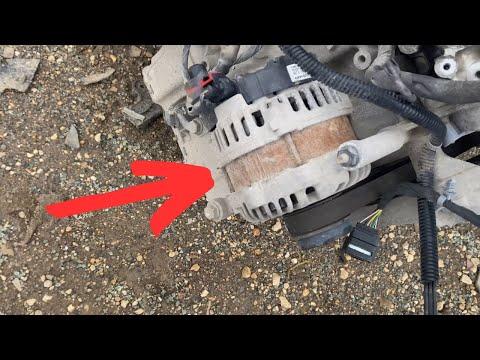

The alternator keeps your Terrain’s battery charged and powers the electrical system while the engine runs. Replacing it involves disconnecting the battery, removing the serpentine belt, unplugging the alternator wiring, and swapping the unit.

Difficulty Level: Intermediate | Estimated Time: 2.0-3.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable before touching alternator wiring (prevents shorts).
• ⚠️ Support the vehicle with jack stands; never rely on a floor jack alone.
• ⚠️ Keep hands/tools clear of the belt path; the tensioner is spring-loaded.
• ⚠️ Work on a cool engine; turbo/engine bay parts can burn you.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Breaker bar
• Torque wrench (10–200 ft-lbs range)
• Socket set: 8mm, 10mm, 13mm, 15mm, 17mm, 19mm
• Ratchet (3/8" drive)
• Extension set (3" and 6")
• Serpentine belt tool with 15mm socket (specialty)
• Trim clip remover
• Flat-blade screwdriver
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (recommended if worn/cracked)
• Intake duct clamp(s) - Qty: 1 (only if damaged)

---

📋 Before You Begin

• Park on level ground, turn the ignition off, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Open the hood and let the engine cool.
• Disconnect the battery: use a 10mm socket to remove the negative cable and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and fresh-air intake duct

• Pull up to remove the engine cover (it’s held by rubber grommets).
• Use a flat-blade screwdriver to loosen the intake clamp(s).
• Disconnect any small hose/connector(s) on the intake duct by hand, then lift the duct out.
• Tip: Take a quick photo for reassembly.

Step 2: Raise the right-front corner and remove the wheel

• Use a 19mm socket and breaker bar to crack the lug nuts loose (on the ground).
• Lift the right-front using a floor jack and support with jack stands.
• Remove the lug nuts with a 19mm socket and take the wheel off.
• Reinstall later: Torque to 190 Nm (140 ft-lbs).

Step 3: Remove the right-front splash shield (inner fender liner section)

• Use a trim clip remover to pop plastic clips.
• Use an 8mm socket to remove any small screws/bolts holding the liner.
• Fold the liner back to access the belt/alternator area.

Step 4: Remove the serpentine belt from the alternator

• Install a 15mm socket on the belt tensioner using the serpentine belt tool.
• Rotate the tensioner to relieve belt tension, then slip the belt off the alternator pulley.
• Slowly release the tensioner back to its resting position.
• Serpentine belt tool: a long handled tool that gives leverage in tight spaces.

Step 5: Disconnect alternator electrical connections

• Unplug the alternator regulator connector by pressing the lock tab and pulling straight back (use a flat-blade screwdriver gently if stuck).
• Remove the protective boot over the alternator B+ stud.
• Use a 13mm socket to remove the B+ cable nut and set the cable aside so it cannot touch metal.
• Reinstall later: Torque to 15 Nm (11 ft-lbs).

Step 6: Remove the alternator mounting bolts and remove the alternator

• Support the alternator with one hand.
• Use a 15mm socket with a ratchet and extensions to remove the alternator mounting bolts.
• Remove the alternator through the wheel-well opening (rotate it as needed to clear lines/brackets).
• Reinstall later: Torque alternator mounting bolts to 50 Nm (37 ft-lbs).

Step 7: Install the new alternator

• Position the new alternator in place and start the mounting bolts by hand to avoid cross-threading.
• Tighten mounting bolts with a 15mm socket and torque wrench: Torque to 50 Nm (37 ft-lbs).
• Reconnect the B+ cable and tighten with a 13mm socket: Torque to 15 Nm (11 ft-lbs), then reinstall the boot.
• Reconnect the electrical plug until it clicks.

Step 8: Reinstall the serpentine belt

• Route the belt correctly (use the under-hood belt routing diagram if available).
• Use the serpentine belt tool with 15mm socket to rotate the tensioner and slip the belt fully onto the alternator pulley.
• Double-check the belt is seated in every pulley groove before releasing the tensioner.

Step 9: Reassemble the wheel well and intake parts

• Reinstall the splash shield using the 8mm socket and push-clips with the trim clip remover.
• Reinstall the wheel and snug lugs with a 19mm socket.
• Lower the vehicle and final-tighten lugs: Torque to 190 Nm (140 ft-lbs).
• Reinstall the intake duct and tighten clamps with a flat-blade screwdriver.
• Reinstall the engine cover by pressing it down onto the grommets.

Step 10: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.
• Tighten the terminal: Torque to 6 Nm (53 in-lbs).

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light is off.
• With the engine running, verify charging voltage (if you have a meter): typically ~13.5–14.8V at the battery.
• Listen for belt squeal and recheck belt alignment if you hear noise.
• Test drive 10 minutes, then recheck for loose fasteners and any rubbing in the wheel well.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,150 (parts + labor)

DIY Cost: $250-$550 (parts only)

You Save: $400-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.0-3.0 hours.

---
