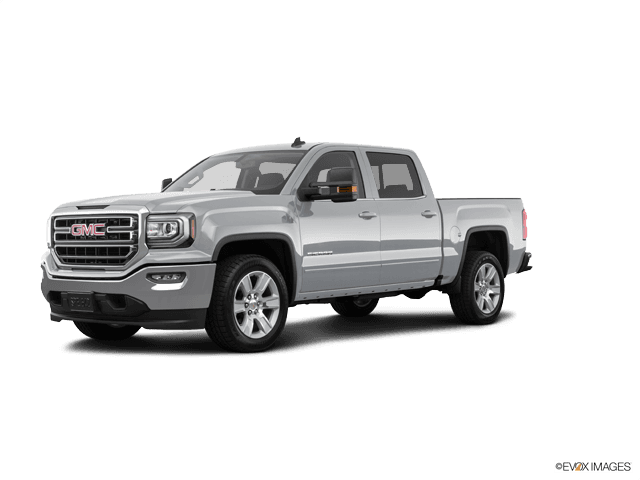

🔧 Sierra 1500 - Alternator Replacement

Your alternator charges the battery and powers the truck’s electrical system while the engine is running. Replacing it involves disconnecting the battery, removing the serpentine belt, swapping the alternator, then reinstalling everything in the correct order.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short at the alternator power stud.
• ⚠️ Keep fingers/tools clear of the belt path when releasing the tensioner.
• Let the engine cool; you’ll be working near hot components.
• Do not pry on the alternator case or wiring connectors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Serpentine belt tool or 3/8" breaker bar
• Torque wrench (10–100 ft-lbs range)
• Flat trim tool
• Shop light
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (recommended if belt is worn/cracked)
• Dielectric grease - Qty: 1 (optional)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and install a fender cover to protect paint.
• Tip: Take a photo of the belt routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket with a 3/8" drive ratchet to loosen the negative battery terminal clamp.
• Lift the negative cable off the battery and position it so it cannot spring back.

Step 2: Remove the intake duct (if it blocks access)

• Use a flat trim tool to release any intake duct clips (if equipped).
• Use an appropriate socket (commonly 8mm clamps are used on these trucks—if yours has 8mm, add an 8mm socket before continuing) to loosen duct clamps, then remove the duct by hand.
• Tip: Don’t force it—wiggle and pull evenly.

Step 3: Release serpentine belt tension

• Install a serpentine belt tool or 3/8" breaker bar into the belt tensioner drive.
• Rotate the tensioner to relieve belt tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to its stop.

Step 4: Disconnect alternator electrical connections

• Unplug the alternator regulator connector by hand (press the locking tab, then pull).
• Remove the protective rubber boot from the alternator power stud.
• Use a 13mm socket to remove the B+ cable nut, then remove the cable from the stud.
• If using dielectric grease, apply a very small amount to the connector seal only.

Step 5: Remove the alternator mounting bolts

• Support the alternator with one hand.
• Use a 15mm socket, 3/8" drive ratchet, and a 3/8" extension to remove the alternator mounting bolts.
• Lift the alternator out of the engine bay.

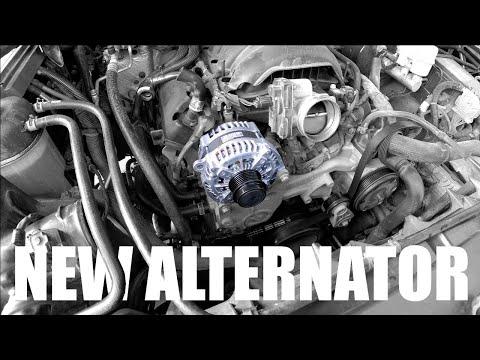

Step 6: Install the new alternator

• Set the new alternator into position by hand, aligning the bolt holes.
• Start all mounting bolts by hand first (prevents cross-threading).
• Use a 15mm socket to tighten the mounting bolts, then use a torque wrench: Torque to 50 Nm (37 ft-lbs).

Step 7: Reconnect alternator wiring

• Install the B+ cable on the power stud.
• Use a 13mm socket and then a torque wrench: Torque to 15 Nm (11 ft-lbs).
• Reinstall the rubber boot over the power stud.
• Reconnect the regulator plug until it clicks.

Step 8: Reinstall the serpentine belt

• Route the belt according to the under-hood belt routing diagram (or your photo).
• Use the serpentine belt tool or 3/8" breaker bar to rotate the tensioner and slip the belt fully onto the alternator pulley.
• Visually confirm the belt is seated in every pulley groove.

Step 9: Reinstall the intake duct (if removed)

• Reinstall the duct by hand, ensuring it fully seats on both ends.
• Use the same socket used during removal (often 8mm socket) to tighten the clamps snugly.

Step 10: Reconnect the battery

• Reinstall the negative terminal.
• Use a 10mm socket to tighten securely (do not overtighten).

---

✅ After Repair

• Start your Sierra 1500 and confirm the battery/charging warning light is off.
• Listen for belt squeal and watch the belt for smooth tracking.
• If you have a multimeter, check charging voltage at the battery with engine running: typically around 13.5–14.8V.
• Recheck the alternator B+ nut and mounting area for looseness after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$1,050 (parts + labor)

DIY Cost: $180-$550 (parts only)

You Save: $320-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
