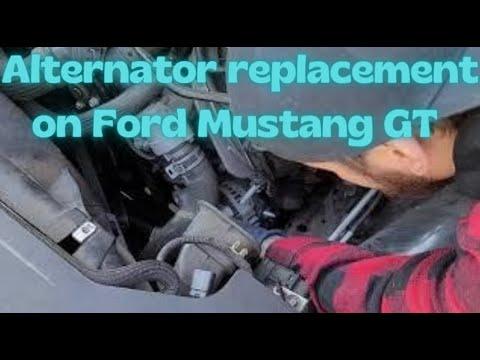

🔧 Mustang - Alternator Replacement

Your Mustang’s alternator charges the battery and powers the electrical system while the engine is running. Replacing it involves removing the serpentine belt, unplugging the alternator wiring, unbolting the alternator, then installing and re-tensioning everything correctly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable before touching the alternator wiring (the alternator power cable is always “hot” if the battery is connected).
• ⚠️ Keep hands and tools clear of the belt path; the tensioner is spring-loaded.
• ⚠️ Work on a cool engine; the front of the engine and exhaust components can be very hot.
• ⚠️ If you raise the car, support it with jack stands on proper lift points—never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Serpentine belt tool (specialty)
• Flat-blade screwdriver
• Trim clip removal tool
• Torque wrench (in-lb)
• Torque wrench (ft-lb)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (recommended if belt is cracked/glazed)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open the hood.
• If you’ll lift the front of the car for access, place wheel chocks behind the rear tires, then raise and support the front with a floor jack and jack stands.
• Disconnect the battery: use a 10mm socket to remove the negative (-) cable from the battery and isolate it so it can’t spring back.
• Tip: Take a quick photo of belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the intake ducting for access

• Use an 8mm socket to loosen the intake tube clamp(s).
• Use a flat-blade screwdriver and/or trim clip removal tool to release any push clips holding the inlet snorkel/duct.
• Lift the ducting out of the way so you can clearly reach the belt tensioner and alternator.

Step 2: Release serpentine belt tension

• Install a 15mm socket on the belt tensioner and attach a serpentine belt tool (a long, thin breaker-bar made for belt tensioners).
• Rotate the tensioner to relieve belt tension, then slip the belt off the alternator pulley.
• Slowly let the tensioner return—do not let it snap back.

Step 3: Disconnect alternator electrical connections

• Unplug the alternator electrical connector by depressing the lock tab and pulling straight back (use a flat-blade screwdriver gently if the tab is stubborn).
• Remove the protective boot over the alternator power stud.
• Use a 10mm socket to remove the B+ cable nut, then move the cable aside so it can’t touch metal.
• Torque on install: Torque to 10 Nm (89 in-lb) for the B+ terminal nut.

Step 4: Unbolt and remove the alternator

• Use a 13mm socket with a 3/8" drive ratchet and extension to remove the alternator mounting bolt(s).
• Support the alternator with one hand as you remove the last bolt, then lift it out of the engine bay.
• Torque on install: Torque to 41 Nm (30 ft-lb) for alternator mounting bolts.

Step 5: Install the new alternator

• Set the new alternator into position and start all mounting bolts by hand to avoid cross-threading.
• Use a 13mm socket to snug the bolts evenly, then use a torque wrench (ft-lb): Torque to 41 Nm (30 ft-lb).
• Reconnect the B+ cable and tighten using a torque wrench (in-lb): Torque to 10 Nm (89 in-lb), then reinstall the protective boot.
• Plug in the alternator connector until it clicks.

Step 6: Reinstall the serpentine belt

• Route the belt exactly as it was (use your photo).
• Use a 15mm socket with the serpentine belt tool to rotate the tensioner and slip the belt fully onto the alternator pulley.
• Double-check the belt is centered on every pulley groove before releasing the tensioner.
• Tip: If it’s off one rib, fix it now.

Step 7: Reassemble and reconnect the battery

• Reinstall the intake ducting and tighten clamps using an 8mm socket.
• Reconnect the battery negative (-) cable using a 10mm socket.
• Torque to 7 Nm (62 in-lb) for the battery terminal clamp nut.

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light is off.
• Listen for belt squeal or slapping; if you hear it, shut off and re-check belt routing.
• If you have a multimeter, check charging voltage at the battery with engine idling: you should typically see around 13.5–14.8 volts.
• Take a short test drive and recheck for any unusual noises afterward.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,150 (parts + labor)

DIY Cost: $250-$550 (parts only)

You Save: $400-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
