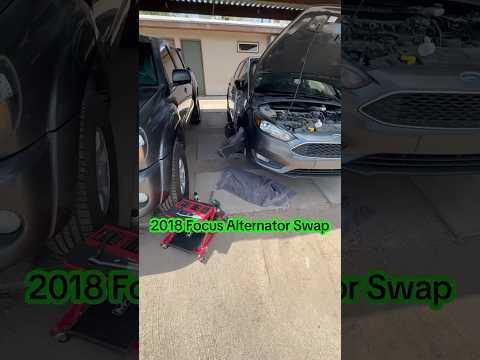

🔧 Focus - Alternator Replacement

Your alternator charges the battery and powers the electrical system while the engine runs. On your Focus, replacement typically involves disconnecting the battery, removing the serpentine belt (the single belt that drives multiple accessories), and unbolting the alternator from the engine.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short at the alternator power terminal.
• ⚠️ Support the car with jack stands on solid, level ground; never rely on a floor jack alone.
• ⚠️ Keep hands/clothes clear of the belt path; do not crank the engine with the belt off.
• ⚠️ If the engine was running, let it cool to avoid burns near the exhaust and radiator area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (pair, rated 2-ton minimum)
• Breaker bar 1/2-inch drive
• Torque wrench 3/8-inch drive (10–100 Nm range)
• Torque wrench 1/2-inch drive (40–200 Nm range)
• Socket set (8mm, 10mm, 13mm, 15mm, 19mm)
• Ratchet 3/8-inch drive
• Ratchet 1/2-inch drive
• Extension set (3-inch, 6-inch)
• Serpentine belt tool (specialty)
• Trim clip remover
• Flathead screwdriver
• Multimeter
• Battery terminal puller (specialty)
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Belt tensioner - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift into 1st gear, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and confirm you have your radio/security info if needed.
• Plan belt routing: take a photo of the serpentine belt path before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative (-) battery terminal clamp and remove it from the battery post.
• Wrap the cable end so it can’t spring back.

Step 2: Lift the front-right corner and remove the wheel

• Use a 19mm socket and breaker bar 1/2-inch drive to slightly loosen the front-right lug nuts while on the ground.
• Lift with the floor jack (rated 2-ton minimum) at the proper front jacking point and support with jack stands (pair, rated 2-ton minimum).
• Remove lug nuts using the 19mm socket and remove the wheel.
• Reinstall later and Torque to 135 Nm (100 ft-lbs).

Step 3: Remove the right-front splash shield (inner fender liner section)

• Use a trim clip remover and flathead screwdriver to remove the plastic clips/screws holding the liner section back.
• Pull the liner aside to access the belt and alternator area.

Step 4: Remove the serpentine belt

• Locate the belt tensioner (spring-loaded pulley that keeps belt tight).
• Use a serpentine belt tool (specialty) or a 15mm socket on the tensioner hex and rotate to release belt tension.
• Slip the belt off the alternator pulley first, then slowly release the tensioner.
• If reusing the belt, inspect for cracks/glazing; replace if worn.

Step 5: Disconnect alternator wiring

• From the alternator, remove the main power cable protective boot by hand.
• Use a 10mm socket to remove the B+ terminal nut and lift the cable off the stud.
• Disconnect the alternator electrical connector by pressing the tab (use a flathead screwdriver gently if stuck).
• Optional: Apply a small amount of dielectric grease to the connector seal during reassembly.

Step 6: Unbolt and remove the alternator

• Use a 13mm socket, ratchet 3/8-inch drive, and extension set (3-inch, 6-inch) to remove the alternator mounting bolts.
• Support the alternator with one hand as the last bolt comes out.
• Work the alternator out through the wheel-well access opening.
• On installation, Torque alternator mounting bolts to 35 Nm (26 ft-lbs).

Step 7: Install the new alternator

• Position the new alternator into place through the wheel well and align it to the bracket.
• Start all mounting bolts by hand to avoid cross-threading.
• Tighten with a 13mm socket and ratchet 3/8-inch drive, then Torque to 35 Nm (26 ft-lbs).

Step 8: Reconnect alternator wiring

• Reconnect the electrical plug until it clicks.
• Install the B+ cable onto the stud and tighten using a 10mm socket.
• Torque B+ terminal nut to 10 Nm (89 in-lbs).
• Reinstall the protective boot over the power terminal.

Step 9: Reinstall the serpentine belt

• Route the belt using your photo as a guide. Make sure it sits fully in every pulley groove.
• Use the serpentine belt tool (specialty) or 15mm socket to rotate the tensioner, slip the belt onto the alternator pulley, then release tension slowly.
• If belt walks off, it’s misrouted.

Step 10: Reinstall splash shield and wheel

• Reposition the liner and reinstall clips/screws using the trim clip remover and flathead screwdriver.
• Install the wheel and snug lug nuts with a 19mm socket.
• Lower the car, then Torque lug nuts to 135 Nm (100 ft-lbs) using a torque wrench 1/2-inch drive (40–200 Nm range).

Step 11: Reconnect the battery

• Install anti-corrosion pads if you’re using them.
• Reconnect the negative (-) battery terminal and tighten using a 10mm socket.
• Do a quick tool check to ensure nothing is left in the engine bay.

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light is off.
• Use a multimeter at the battery: engine running should typically read about 13.5–14.7V.
• Listen for belt squeal; if present, recheck belt routing and pulley alignment.
• Recheck the lug nut torque after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹35,000 (parts + labor)

DIY Cost: ₹9,000-₹22,000 (parts only)

You Save: ₹9,000-₹13,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
