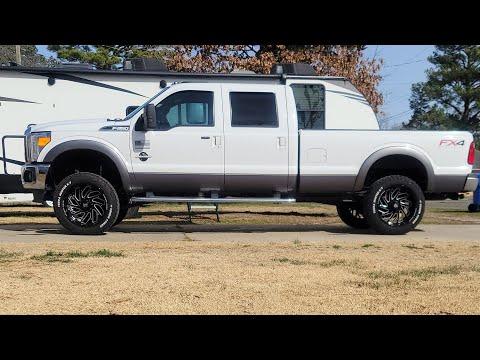

🔧 F-250 Super Duty - Alternator Replacement

Your alternator charges the batteries and powers the truck’s electrical system while the engine runs. Replacing it involves disconnecting the batteries, removing the serpentine belt from the alternator pulley, swapping the alternator, then verifying charging voltage.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect both batteries before touching alternator wiring.
• ⚠️ Let the engine cool; the belt drive area can burn you.
• ⚠️ Keep fingers clear of the belt and pulleys.
• ⚠️ Do not short the alternator B+ terminal to ground.
• ⚠️ Battery disconnect is required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 13mm socket
• 15mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–80 ft-lbs range)
• 1/4" drive torque wrench (inch-lb range)
• 6" extension (3/8" drive)
• Serpentine belt tool (specialty)
• Flat trim tool
• Small pick tool
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Battery terminal anti-corrosion grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove the key/fob from the truck.
• Take a quick photo of the belt routing sticker (usually on the fan shroud) so reassembly is easy.
• A serpentine belt tool is a long handle used to rotate the belt tensioner safely in tight spaces.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect both batteries

• Use a 10mm socket to loosen the negative (-) terminal clamp on the first battery and remove the cable.
• Use a 10mm socket to loosen the negative (-) terminal clamp on the second battery and remove the cable.
• Position both negative cables so they can’t spring back onto the terminals.
• When reinstalling, tighten terminal clamps to Torque to 6 Nm (53 in-lbs).

Step 2: Remove the intake ducting (for access)

• Use a flat trim tool to release any intake snorkel clips (if equipped).
• Use a flat trim tool to loosen the air duct retainers, then move the ducting out of the way as needed.

Step 3: Relieve belt tension and slip the belt off the alternator

• Install a 15mm socket on the belt tensioner and rotate it to relieve belt tension.
• While holding tension off, slip the belt off the alternator pulley.
• Slowly release the tensioner back to its rest position.
• Tip: Don’t remove the belt completely unless replacing it.

Step 4: Disconnect alternator electrical connections

• Locate the alternator’s electrical plug and release the lock tab using a small pick tool, then unplug it.
• Remove the protective boot from the alternator B+ terminal.
• Use a 13mm socket to remove the B+ cable nut and set the cable aside.
• When reinstalling, tighten the B+ terminal nut to Torque to 12 Nm (106 in-lbs).

Step 5: Remove the alternator mounting bolts

• Support the alternator with one hand (it’s heavier than it looks).
• Use a 13mm socket with a 3/8" drive ratchet and 6" extension to remove the alternator mounting bolts.
• Lift the alternator out of the bracket.

Step 6: Install the new alternator

• Set the new alternator into the bracket and start all mounting bolts by hand to avoid cross-threading.
• Use a 13mm socket to snug the bolts evenly.
• Use a 3/8" drive torque wrench with a 13mm socket to tighten alternator mounting bolts to Torque to 48 Nm (35 ft-lbs).

Step 7: Reconnect alternator wiring

• Install the B+ cable onto the alternator stud and thread the nut by hand.
• Use a 13mm socket and an inch-lb torque wrench to tighten to Torque to 12 Nm (106 in-lbs).
• Reinstall the B+ protective boot.
• Plug the alternator connector back in until it clicks.

Step 8: Reinstall the serpentine belt

• Route the belt exactly per the under-hood routing diagram.
• Use a 15mm socket to rotate the tensioner, then slip the belt fully onto the alternator pulley.
• Slowly release the tensioner and visually confirm the belt is seated in every pulley groove.

Step 9: Reinstall intake ducting

• Reposition the intake ducting back into place.
• Use a flat trim tool to re-secure any clips/retainers you released.

Step 10: Reconnect batteries and perform Battery Monitoring System reset

• Reconnect both negative battery cables.
• Use a 10mm socket to tighten each terminal clamp to Torque to 6 Nm (53 in-lbs).
• Battery Monitoring System reset (no scan tool): turn ignition ON (engine OFF), then pull the high-beam flash-to-pass lever 5 times, then press the brake pedal 3 times within 10 seconds.
• Watch for the battery light to flash (confirmation varies by cluster). If it doesn’t, repeat once.

---

✅ After Repair

• Start the engine and listen for belt squeal or knocking.
• With the engine idling, verify charging voltage is roughly 13.5–14.8V at the batteries (a basic multimeter test).
• Confirm the battery/charging warning light is off.
• Recheck the belt seating after a short 5–10 minute drive.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,150 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $400-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
