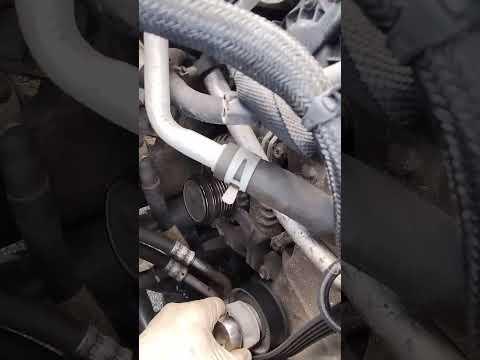

🔧 Durango - Alternator Replacement

The alternator keeps your battery charged and powers electrical systems while the engine runs. On your Durango, replacement involves disconnecting the battery, removing the serpentine belt (the long drive belt on the front of the engine), unplugging the alternator wiring, and swapping the alternator.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the alternator wiring.
• ⚠️ Let the engine cool; the radiator, hoses, and front engine area can burn you.
• ⚠️ Support the vehicle with jack stands if you work through the wheel well; never rely on a jack alone.
• ⚠️ Keep fingers clear of the belt path; the tensioner is spring-loaded.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 1/2" drive breaker bar
• Serpentine belt tool, 3/8" drive (specialty)
• 3/8" drive ratchet
• Socket set: 8mm, 10mm, 13mm, 15mm
• Wrench set: 10mm, 13mm
• Torque wrench (10-100 ft-lbs range)
• Trim clip removal tool
• Flathead screwdriver
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn the engine off, and remove the key.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Open the hood and make a quick photo or sketch of the belt routing (belt path).
• Disconnect the battery: use a 10mm wrench to remove the negative terminal and tuck it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Gain access to the alternator

• Use a flathead screwdriver and trim clip removal tool to loosen/remove any air inlet duct clips if they block access.
• If access is tight from above, raise the front-right corner using a floor jack (rated 3-ton minimum) and support it with jack stands (rated 3-ton minimum).
• Remove the front-right splash shield fasteners using an 8mm socket and trim clip removal tool as needed.
• Tip: Keep fasteners grouped by location.

Step 2: Release serpentine belt tension

• Place a serpentine belt tool, 3/8" drive (specialty) (or a 1/2" drive breaker bar if your tensioner accepts it) into the belt tensioner.
• Rotate the tensioner to relieve belt tension, then slide the belt off the alternator pulley.
• Slowly let the tensioner return to rest (don’t let it snap back).

Step 3: Disconnect alternator electrical connections

• Locate the alternator’s main power stud (B+) and plastic cap.
• Remove the cap by hand, then use a 13mm socket to remove the B+ nut and lift the cable off.
• Torque to 11 Nm (97 in-lbs) during reassembly.
• Unplug the alternator electrical connector by pressing the lock tab (use a flathead screwdriver gently if stuck).

Step 4: Remove the alternator mounting bolts

• Support the alternator with one hand.
• Use a 15mm socket and 3/8" drive ratchet to remove the alternator mounting bolts.
• Lift the alternator out (you may need to rotate it to clear hoses/brackets).

Step 5: Install the new alternator

• Position the new alternator into place and start the mounting bolts by hand (prevents cross-threading).
• Tighten the mounting bolts with a 15mm socket and torque wrench.
• Torque to 54 Nm (40 ft-lbs).

Step 6: Reconnect alternator wiring

• Plug in the alternator connector until it clicks.
• Install the B+ cable and nut using a 13mm socket and finish with a torque wrench.
• Torque to 11 Nm (97 in-lbs).
• Reinstall the protective cap over the B+ stud.

Step 7: Reinstall the serpentine belt

• Route the belt according to the under-hood routing diagram (or your photo).
• Use the serpentine belt tool, 3/8" drive (specialty) to rotate the tensioner and slip the belt over the alternator pulley last.
• Double-check the belt is centered on every pulley groove with a flashlight.
• Tip: One rib off will squeal immediately.

Step 8: Reassemble removed panels and reconnect battery

• Reinstall the splash shield using an 8mm socket and any clips with the trim clip removal tool.
• Lower the vehicle safely if it was raised (use the floor jack, then remove jack stands).
• Reconnect the negative battery terminal using a 10mm wrench.

---

✅ After Repair

• Start the engine and confirm the belt runs smoothly (no wobble, no squeal).
• Check charging voltage at the battery with a multimeter if available: typically ~13.5–14.7V at idle.
• If a battery/charging warning light stays on, scan for codes with a scan tool and clear after confirming the repair.
• Recheck for loose tools/fasteners and ensure the B+ cap is installed.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,150 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $400-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
