🔧 Malibu - Alternator Replacement

The alternator keeps your A/C, lights, and electronics powered and recharges the battery while the engine runs. On your Malibu, replacing it usually means removing the drive belt, unbolting the alternator, swapping electrical connections, and reinstalling everything in the correct order.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable before touching the alternator wiring.
• ⚠️ Let the engine cool fully; you’ll work near hot parts.
• ⚠️ Support the car with jack stands if you go underneath; never rely on a jack.
• ⚠️ Keep fingers clear of the belt and pulleys; the tensioner snaps back hard.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set 8mm-19mm
• Metric wrench set 8mm-19mm
• 3/8" drive ratchet
• 3/8" drive extension set
• 1/2" drive breaker bar
• Serpentine belt tool with 3/8" square drive (specialty)
• Trim clip remover
• Flathead screwdriver
• Torque wrench 10-150 ft-lbs
• Multimeter
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (replace if cracked or glazed)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Pop the hood and take a clear photo of the belt routing sticker (or draw a quick sketch).
• Disconnect the battery negative cable using a metric socket/wrench (this is the “ground” cable, usually black).
• Quick check: Reply with answers to the two questions below so I can give you the exact alternator fastener locations and torque specs for your Malibu.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the two items that change the procedure

• Does your Malibu have Auto Stop/Start (engine shuts off at stoplights)? Yes/No
• Are you replacing the alternator from the top only, or do you also have access from under the car (jack stands)?
• Reply with those 2 answers.

Step 2: Remove engine covers and gain access

• Remove the top engine cover (if equipped) by pulling upward firmly; use a flathead screwdriver only if a clip is stubborn.
• If lower access is needed, raise the front safely using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lower splash shield fasteners using a trim clip remover and metric socket set 8mm-19mm as needed.

Step 3: Remove the serpentine belt from the alternator

• Fit the serpentine belt tool with 3/8" square drive (specialty) into the belt tensioner’s square drive.
• Rotate the tensioner to release belt tension, then slide the belt off the alternator pulley.
• Slowly return the tensioner to its resting position. Don’t let it snap back.

Step 4: Disconnect alternator electrical connections

• Unplug the small alternator connector by releasing the tab using a flathead screwdriver gently.
• Remove the main battery cable nut/boot from the alternator using a metric socket set 8mm-19mm.
• Move wiring aside so it cannot get pinched during removal.

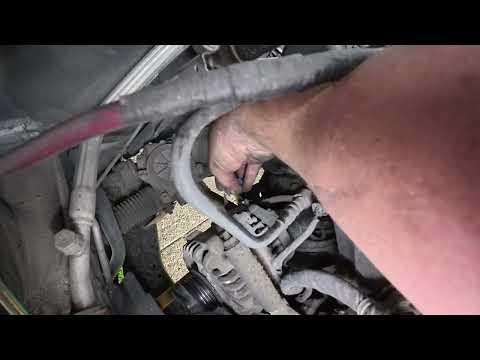

Step 5: Unbolt and remove the alternator

• Remove alternator mounting bolts using a metric socket set 8mm-19mm and 3/8" drive extension set.
• Support the alternator with one hand while removing the last bolt.
• Work the alternator out of the engine bay (or down and out from underneath, depending on access).
• Compare old vs new before installing.

Step 6: Install the new alternator

• Position the new alternator in place by hand.
• Start all mounting bolts by hand first (prevents cross-threading).
• Tighten bolts with a 3/8" drive ratchet, then final-tighten with a torque wrench 10-150 ft-lbs.
• Torque to: I’ll provide the exact Malibu torque specs after your two answers in Step 1.

Step 7: Reconnect electrical connections

• Install the main battery cable onto the alternator and tighten using a metric socket set 8mm-19mm, then final-tighten with a torque wrench 10-150 ft-lbs.
• Reconnect the alternator electrical plug until it clicks.
• Torque to: I’ll provide the exact Malibu spec after Step 1 answers.

Step 8: Reinstall the serpentine belt

• Route the belt according to the under-hood diagram (or your photo).
• Use the serpentine belt tool with 3/8" square drive (specialty) to rotate the tensioner and slip the belt over the alternator pulley.
• Double-check the belt is fully seated in every pulley groove using a work light.

Step 9: Reassemble and reconnect the battery

• Reinstall splash shield/engine cover using a trim clip remover and metric socket set 8mm-19mm.
• Reconnect the battery negative cable using a metric wrench set 8mm-19mm.

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light stays off.
• Use a multimeter at the battery: you should typically see charging voltage with the engine running (about 13.5-14.8V).
• Listen for belt squeal and re-check belt alignment with a work light.
• If you had Auto Stop/Start and it’s disabled after repair, drive a few trips; the system may need time to relearn battery state.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,150 (parts + labor)

DIY Cost: $250-$550 (parts only)

You Save: $400-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
