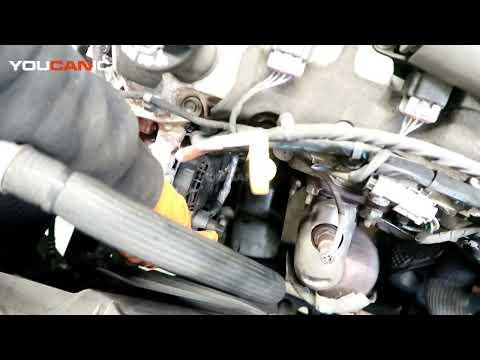

🔧 Enclave - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. Replacing it involves disconnecting the battery, removing the serpentine belt from the alternator, swapping the unit, then reinstalling everything and verifying charging voltage.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the alternator wiring.
• ⚠️ Keep fingers/clothes away from the belt and pulleys.
• ⚠️ If you lift the vehicle, support it with jack stands on solid, level ground.
• ⚠️ Let the engine cool so you don’t burn yourself on hot parts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Torque wrench (10-200 Nm range)
• Ratchet (3/8" drive)
• Socket set: 8mm, 10mm, 13mm, 15mm
• Extension set (3" and 6")
• Serpentine belt tool or 15mm box wrench
• Trim clip remover
• Flathead screwdriver
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (recommended if worn/cracked)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove any loose jewelry/sleeves.
• If you’ll access the belt through the wheel well, loosen the right-front lug nuts slightly before lifting.
• A “serpentine belt tool” is a long handle used to rotate the belt tensioner safely (the spring-loaded arm that keeps belt tension).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket and ratchet to loosen the negative battery terminal.
• Remove the negative cable and move it aside so it can’t spring back.
• Torque to 15 Nm (11 ft-lbs) when reinstalling.

Step 2: Remove the engine cover and air intake duct (as needed)

• Pull up on the engine cover to release it (it’s held by rubber grommets).
• Use a flathead screwdriver to loosen intake duct clamps, if they block access.
• Use an 8mm socket if your clamps use hex-head screws.
• Take a photo before removing hoses.

Step 3: Raise the right-front corner (if needed for belt access)

• Place wheel chocks at the rear wheels.
• Use a floor jack to lift the right-front jacking point.
• Set the vehicle onto jack stands.
• Use a socket set to remove the right-front wheel.
• Torque to 190 Nm (140 ft-lbs) when reinstalling lug nuts.

Step 4: Remove the right-front splash shield (if equipped)

• Use a trim clip remover to pop out plastic retainers.
• Use a 10mm socket to remove any small bolts.
• Move the splash shield aside to see the belt and tensioner.

Step 5: Release tension and remove the belt from the alternator

• Locate the belt tensioner (spring-loaded pulley arm).
• Use a serpentine belt tool or 15mm box wrench on the tensioner hex and rotate to relieve belt tension.
• Slide the belt off the alternator pulley first, then slowly release the tensioner.
• Sketch the belt routing before removal.

Step 6: Disconnect alternator electrical connections

• Unplug the alternator connector by pressing the lock tab (use a flathead screwdriver gently if stuck).
• Remove the protective boot from the main charging wire (B+).
• Use a 13mm socket to remove the B+ nut and lift the cable off.
• Torque to 15 Nm (11 ft-lbs) when reinstalling the B+ nut.

Step 7: Remove the alternator

• Use a 15mm socket, ratchet, and extensions to remove the alternator mounting bolts.
• Support the alternator with one hand as you remove the last bolt.
• Work the alternator out of the bracket (it may take small wiggling).

Step 8: Install the new alternator

• Set the new alternator into position by hand.
• Start all mounting bolts by hand to avoid cross-threading.
• Use a 15mm socket to snug bolts evenly.
• Torque to 50 Nm (37 ft-lbs) for alternator mounting bolts.

Step 9: Reconnect alternator wiring

• Install the B+ cable and nut using a 13mm socket.
• Torque to 15 Nm (11 ft-lbs) for the B+ nut.
• Reinstall the boot cover over the B+ terminal.
• Plug in the electrical connector until it clicks.

Step 10: Reinstall the serpentine belt

• Route the belt correctly around all pulleys (leave the alternator pulley for last if easier).
• Use a serpentine belt tool or 15mm box wrench to rotate the tensioner and slip the belt onto the alternator.
• Slowly release the tensioner and confirm the belt is seated in every pulley groove.
• Misalignment can shred the belt quickly.

Step 11: Reinstall splash shield, wheel, and intake parts

• Reinstall the splash shield using the trim clip remover and 10mm socket.
• Reinstall the wheel and hand-tighten lug nuts, then lower the vehicle.
• Use a torque wrench to tighten lug nuts in a star pattern: Torque to 190 Nm (140 ft-lbs).
• Reinstall the intake duct (use 8mm socket or flathead screwdriver for clamps).
• Press the engine cover back onto its mounts.

Step 12: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.
• Torque to 15 Nm (11 ft-lbs).

---

✅ After Repair

• Start the engine and confirm no squealing noises from the belt.
• If you have a multimeter, check charging voltage at the battery: typically around 13.5V to 14.7V with the engine running.
• Verify the battery light is off and there are no warning messages.
• Recheck the belt seating after a short test drive (2-5 miles).

---

💰 DIY vs Shop Cost

Shop Cost: $750-$1,150 (parts + labor)

DIY Cost: $220-$450 (parts only)

You Save: $530-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
