🔧 Camry - Alternator Replacement

You’ll be removing the old alternator from the front of the engine, swapping it with a new unit, and reinstalling the drive belt. The alternator charges the battery while the engine runs, so a weak or failed one can cause no-starts, dim lights, or warning messages.

Difficulty Level: Intermediate | Estimated Time: 2.5–4 hours

---

⚠️ Safety & Precautions

• ⚠️ Always disconnect the negative battery cable before working on the alternator to avoid short circuits and sparks.
• ⚠️ Let the engine cool completely; the exhaust and engine parts near the alternator can be very hot.
• ⚠️ Use a floor jack and jack stands to safely support your Camry if you raise it. Never rely on the jack alone.
• ⚠️ Keep metal tools away from the positive battery terminal and alternator power stud when the battery is connected.
• ⚠️ Wear safety glasses and mechanic gloves to protect your eyes and hands from debris and sharp edges.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ 10mm socket
• 🛠️ 12mm socket
• 🛠️ 14mm socket
• 🛠️ 10mm combination wrench
• 🛠️ 14mm combination wrench
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive socket extension (3"–6")
• 🛠️ Serpentine belt tool or long 14mm offset wrench (specialty)
• 🛠️ Torque wrench (8–80 ft-lbs range)
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Trim clip removal tool
• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum, Qty: 2)
• 🛠️ Wheel chocks
• 🛠️ Work light
• 🛠️ Safety glasses
• 🛠️ Mechanic gloves
• 🛠️ Battery terminal brush
• 🛠️ Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Alternator assembly (V6 3.5L, 2GR-FKS) - Qty: 1
• 🔩 Serpentine drive belt - Qty: 1
• 🔩 Alternator B+ terminal nut (if damaged) - Qty: 1
• 🔩 Plastic push clips for lower splash shield - Qty: 4–6
• 🔩 Battery terminal protector spray - Qty: 1
• 🔩 Dielectric grease - Qty: 1 small tube
• 🔩 Anti-seize compound - Qty: 1 small tube

---

📋 Before You Begin

• Park your Camry on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Open the hood and remove any loose jewelry (rings, watches) to avoid accidental shorts.
• Turn ignition OFF and remove the key. Make sure all lights and accessories are off.
• Disconnect the negative battery cable using a 10mm socket and move the cable end aside so it cannot spring back.
• Plan to work from both the top (under the hood) and bottom (through the splash shield) for best access.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Safely raise and support the front

• Use a floor jack under the front center jacking point (just behind the front bumper on the subframe) to lift the front of your Camry.
• Place jack stands under the factory pinch welds on both sides and gently lower the car onto the stands.
• Give the car a shake to confirm stability.

Step 2: Remove the lower engine splash shield

• Under the front of the car, locate the plastic splash shield.
• Use a trim clip removal tool and 10mm socket to remove the plastic clips and bolts holding the shield.
• Lower the shield and set it aside. Keep track of all clips and bolts.

Step 3: Disconnect the battery and inspect terminals

• At the battery, confirm the negative cable is already disconnected using a 10mm socket or wrench.
• Use a battery terminal brush to clean any corrosion on the positive post and cable end. Do not reconnect yet.
• Clean terminals now to avoid future charging issues.

Step 4: Relieve tension on the serpentine belt

• The serpentine belt drives the alternator, A/C, and other accessories.
• From below (or above if you have room), locate the belt tensioner near the front of the engine; it has a pulley on a spring-loaded arm.
• Place a 14mm socket on the tensioner bolt and use a ratchet or serpentine belt tool to rotate the tensioner (usually clockwise) to release belt tension.
• While holding tension off, slip the belt off the alternator pulley with your free hand, then slowly release the tensioner.
• Take a clear photo of the belt routing for reassembly.

Step 5: Remove the serpentine belt (recommended)

• From above and below, slip the belt off the remaining pulleys and remove it from the engine bay.
• Replacing the belt with the alternator is good practice.

Step 6: Disconnect wiring from the alternator

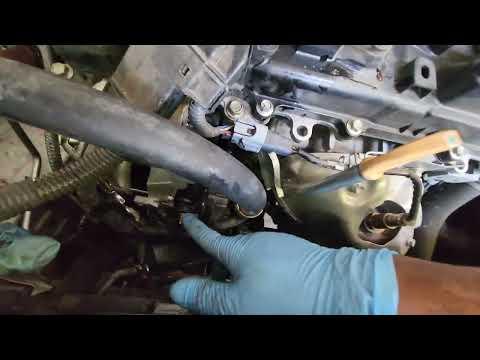

• From above, locate the alternator at the front of the V6 engine.
• Press the tab on the small electrical connector on the alternator and pull it off by hand. If stuck, gently use a flathead screwdriver to lift the tab.
• Remove the rubber boot from the large power cable (B+ terminal) on the alternator.
• Use a 12mm socket to remove the nut on the B+ terminal and pull the cable eyelet off. Set the cable aside so it cannot touch anything.

Step 7: Remove alternator mounting bolts

• Locate the upper and lower alternator mounting bolts.
• Use a 14mm socket and ratchet (with extension if needed) to loosen and remove the upper mounting bolt.
• Use the same 14mm socket to remove the lower mounting bolt from the alternator bracket.
• Support the alternator with your hand as you remove the last bolt so it does not drop suddenly.

Step 8: Remove the alternator from the engine bay

• Gently rock the alternator side to side and pull it forward off the locating dowels.
• Guide it out through the top of the engine bay. If tight, you may need to slightly move nearby hoses or wiring looms by hand (do not disconnect them).
• Take your time; don’t force or pry hard.

Step 9: Prepare and install the new alternator

• Compare the old and new alternators side by side to verify the pulley, mounting points, and connectors match.
• Apply a very light coat of anti-seize compound to the new alternator mounting ears where the bolts pass through.
• Position the new alternator in place and slide it onto the engine bracket.
• Install the lower mounting bolt by hand, then the upper mounting bolt by hand to avoid cross-threading.
• Use a 14mm socket and ratchet to tighten both bolts snugly.
• Then use a torque wrench with 14mm socket to tighten each mounting bolt to 39 Nm (29 ft-lbs).

Step 10: Reconnect alternator wiring

• Place the large power cable eyelet back onto the alternator B+ stud.
• Install the B+ terminal nut using a 12mm socket and tighten with a torque wrench to 9 Nm (80 in-lbs).
• Push the rubber boot back over the B+ terminal to cover the nut and stud.
• Reconnect the small electrical connector until it clicks into place.
• Apply a tiny dab of dielectric grease inside the connector if you have it.

Step 11: Install the new serpentine belt

• Route the new belt around the crank pulley and other pulleys following your photo or the under-hood diagram (if present).
• Leave the alternator pulley for last.
• Use a 14mm socket and serpentine belt tool or ratchet to rotate the tensioner again and slip the belt over the alternator pulley.
• Slowly release the tensioner so it takes up slack on the belt.
• From above and below, visually confirm the belt is seated correctly in the grooves of every pulley.

Step 12: Reinstall the lower splash shield

• Lift the splash shield into position under the front of the car.
• Install the bolts by hand first using a 10mm socket, then snug them down.
• Push the plastic clips back into their holes. Replace any broken clips with new ones.

Step 13: Lower the car and reconnect the battery

• Use the floor jack to raise the front slightly, remove the jack stands, then lower the car fully to the ground.
• At the battery, install the negative cable back on the battery post.
• Use a 10mm socket or wrench to tighten the clamp nut to 5 Nm (44 in-lbs)—snug but not crushing.
• Spray a light coat of battery terminal protector if available.

---

✅ After Repair

• Start the engine and listen for any unusual squealing or grinding noises from the belt area.
• Check that the battery/charging warning light on the dash turns off after starting.
• Using the dash information display, check the battery voltage if your Camry shows it, or use a handheld voltmeter at the battery terminals. You should see about 13.8–14.5 volts with the engine running.
• Turn on headlights, A/C, and rear defogger and confirm the engine runs smoothly and lights stay bright.
• After a short drive, recheck the belt visually to confirm proper tracking and that all splash shield fasteners are still secure.

---

💰 DIY vs Shop Cost

Shop Cost: $700–$1,000 (parts + labor)

DIY Cost: $350–$550 (parts only)

You Save: $350–$450 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 2.5–3.0 hours.

---
