🔧 Ridgeline - Alternator Replacement

Your Ridgeline’s alternator charges the battery and powers the electrical system while the engine runs. Replacement usually involves disconnecting the battery, removing the serpentine belt, unplugging the alternator wiring, and swapping the unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable first to prevent a short at the alternator B+ terminal.
• ⚠️ Let the engine cool; you’ll be working near hot components.
• ⚠️ If you raise the truck, support it with jack stands on solid ground (never rely on the jack).
• ⚠️ Keep fingers clear of the belt path when releasing the tensioner.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 8mm socket
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-80 ft-lbs range)
• 6" extension (3/8" drive)
• 12" extension (3/8" drive)
• Serpentine belt tool (14mm) (specialty)
• Flat trim tool
• Needle-nose pliers
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (replace if worn/cracked)
• Battery terminal anti-corrosion washers - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and make sure the engine is cool to the touch.
• If you’ll work from underneath, chock the rear wheels and raise the front safely on jack stands.
• Take a quick photo of the belt routing sticker under the hood (or sketch it). Photos save headaches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket and ratchet to loosen the negative battery terminal clamp.
• Lift the negative cable off and tuck it aside so it can’t spring back to the post.

Step 2: Remove the engine cover and intake ducting (as needed for access)

• Remove the engine cover by pulling it straight up by hand (it’s held by grommets).
• Use an 8mm socket (or flat trim tool, depending on clamp style) to loosen the intake hose clamps.
• Unclip any intake resonator/duct clips using a flat trim tool, then lift the ducting out for room.
• Set clamps back on the hose so you don’t lose them.

Step 3: Relieve belt tension and remove the serpentine belt from the alternator pulley

• Locate the belt tensioner.
• Use a serpentine belt tool (14mm) (a long handle tool that fits the tensioner bolt) to rotate the tensioner and release belt tension.
• While holding the tensioner, slip the belt off the alternator pulley, then slowly release the tensioner.
• If you’re reusing the belt, inspect it closely for cracks/glazing and replace if questionable.

Step 4: Disconnect alternator electrical connections

• Unplug the alternator connector by pressing the tab and pulling it straight off (use needle-nose pliers gently if it’s stubborn).
• Remove the rubber boot covering the alternator B+ terminal.
• Use a 12mm socket to remove the B+ terminal nut, then lift the cable off the stud.
• Torque to 9.4 Nm (7 ft-lbs) when reinstalling the B+ nut.

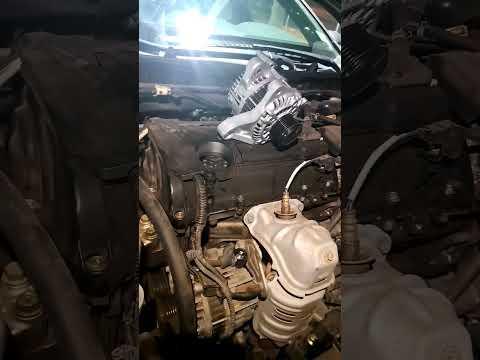

Step 5: Unbolt and remove the alternator

• Support the alternator with one hand as you remove the mounting bolts.
• Use a 14mm socket, ratchet, and extension to remove the alternator mounting bolts.
• Work the alternator out of the bracket and lift it out from the top (you may need to rotate it for clearance).
• Torque to 44 Nm (33 ft-lbs) on the alternator mounting bolts during reassembly.

Step 6: Install the new alternator

• Place the new alternator into the bracket and start the mounting bolts by hand to avoid cross-threading.
• Use a 14mm socket and ratchet to snug bolts evenly.
• Use a torque wrench and 14mm socket: Torque to 44 Nm (33 ft-lbs).

Step 7: Reconnect alternator wiring

• Install the B+ cable onto the stud, then use a 12mm socket to tighten the nut: Torque to 9.4 Nm (7 ft-lbs).
• Reinstall the rubber boot over the B+ terminal.
• Plug the alternator connector back in until it clicks.

Step 8: Reinstall the serpentine belt

• Route the belt according to the under-hood belt routing diagram.
• Use the serpentine belt tool (14mm) to rotate the tensioner again.
• Slip the belt fully onto the alternator pulley, then slowly release the tensioner.
• Visually confirm the belt is seated in every pulley groove (use a flashlight).

Step 9: Reinstall intake ducting and engine cover

• Reinstall the intake ducting and clamps using an 8mm socket.
• Press the engine cover back onto its grommets by hand.

Step 10: Reconnect the battery

• Reinstall the negative battery cable using a 10mm socket.

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light stays off.
• Listen for belt squeal or chirping; if present, shut off and re-check belt routing and seating.
• If you have a multimeter, check charging voltage at the battery with the engine running: you should typically see about 13.5-14.8V.
• Re-set the clock/radio presets if they were lost.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $250-$550 (parts only)

You Save: $400-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
