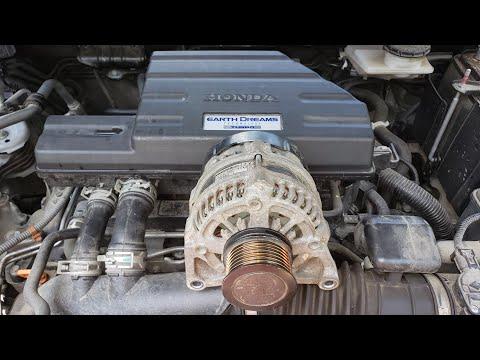

🔧 Alternator - Replacement

The alternator charges the battery and powers the electrical system while the engine runs. On your CR-V, access is tight, so the job is mostly about removing the belt, disconnecting the wiring, and working the alternator out carefully.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting. The charging cable at the alternator is always hot when the battery is connected.
• Do not short the alternator B+ terminal to ground. This can damage wiring and electronics.
• Keep hands clear of the belt path. The accessory belt is under tension.
• Let the engine cool before working near the radiator fan and exhaust side components.
• If your CR-V has an automatic belt tensioner, release it slowly to avoid injury.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet
• Long-handled breaker bar
• Torque wrench
• Flat-blade trim tool
• Pick tool
• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Alternator mounting bolt set - Qty: 1
• Battery terminal cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the ignition off and remove the key or fob from the vehicle.
• Disconnect the negative battery cable first, then isolate it so it cannot touch the terminal.
• If the belt is cracked, glazed, or noisy, replace it now.
• Take a photo of the belt routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect battery power

• Use a 10mm socket to remove the negative battery cable from the battery.
• Move the cable aside so it cannot spring back and touch the terminal.

Step 2: Raise the front of the vehicle

• Use a floor jack (rated 3-ton minimum) to lift the front of the vehicle at the approved jacking point.
• Set the vehicle securely on jack stands.
• Chock the rear wheels.

Step 3: Remove the lower splash shield

• Use a flat-blade trim tool and 10mm socket to remove the fasteners holding the lower engine cover or splash shield.
• Remove the panel to access the belt and alternator area.

Step 4: Release belt tension

• Use a breaker bar with the correct socket on the belt tensioner and rotate the tensioner to unload the belt.
• Slip the belt off one pulley and slowly release the tensioner.
• Release the tensioner slowly.

Step 5: Remove the drive belt

• Remove the belt from the alternator pulley and the remaining pulleys.
• Set the belt aside if you are replacing it later. If reusing it, note the routing exactly.

Step 6: Disconnect alternator wiring

• Use a 10mm socket to remove the nut from the alternator B+ cable.
• Remove the wiring connector by pressing the lock tab with a pick tool if needed.
• Move both harnesses out of the way.

Step 7: Remove the alternator mounting bolts

• Use a 12mm socket and 14mm socket to remove the alternator mounting bolts.
• Support the alternator with one hand as the last bolt comes out.
• Torque note for installation: alternator mounting bolts to 44 Nm (32 ft-lbs).

Step 8: Remove the alternator

• Work the alternator out of the engine bay carefully.
• If space is tight, rotate it slowly and guide it past nearby brackets and hoses.

Step 9: Install the new alternator

• Position the replacement alternator in the mounting bracket.
• Start all mounting bolts by hand to avoid cross-threading.
• Tighten the bolts with a 12mm socket and 14mm socket to 44 Nm (32 ft-lbs).

Step 10: Reconnect alternator wiring

• Reconnect the electrical connector until it clicks.
• Install the B+ cable and tighten the nut with a 10mm socket to 10 Nm (89 in-lbs).
• Make sure the rubber cover, if equipped, is fully seated over the terminal.

Step 11: Reinstall the drive belt

• Route the belt correctly around all pulleys.
• Use the breaker bar to release the tensioner again and slide the belt onto the last pulley.
• Confirm the belt is centered on every pulley groove.

Step 12: Reinstall the splash shield and lower the vehicle

• Use the 10mm socket and flat-blade trim tool to reinstall the lower shield.
• Lower the vehicle off the jack stands with the floor jack.

Step 13: Reconnect the battery and test

• Reconnect the negative battery cable with a 10mm socket.
• Start the engine and listen for belt noise or rubbing.
• Check charging voltage at the battery. A healthy charging system is usually around 13.5-14.8 volts with the engine running.

---

✅ After Repair

• Verify the battery warning light stays off.
• Turn on headlights, blower motor, and rear defroster to confirm stable charging.
• Listen for squealing, chirping, or belt wandering.
• Recheck terminal tightness after the first drive.

---
